Remove/Install Remote Parking Package/Stationary Heater Antenna Splitter - AR82.70-P-0018S
Model 223
with code 503 (Remote-controlled parking)
with code B24 (Remote control for Auxiliary heating)
Shown with code 97B (Engine noise reduction via speaker (EOC)) and with code 406 (Multicontour seats in rear passenger compartment)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove trim in the left side of the luggage compartment. | Model 223 with code 503 (Remote-controlled parking) with code B24 (Remote control for Auxiliary heating) except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4800S |
| 3 | Remove subwoofer. | Model 223 with code 503 (Remote-controlled parking) with code 811 (High-End sound system) with code B24 (Remote control for Auxiliary heating) |
AR82.62-P-7841S |
| 4 | Disconnect electrical connectors from sound generator control unit (N156/1). | Model 223 with code 503 (Remote-controlled parking) with code 97B (Engine noise reduction via speakers (EOC)) with code B24 (Remote control for Auxiliary heating) |
|

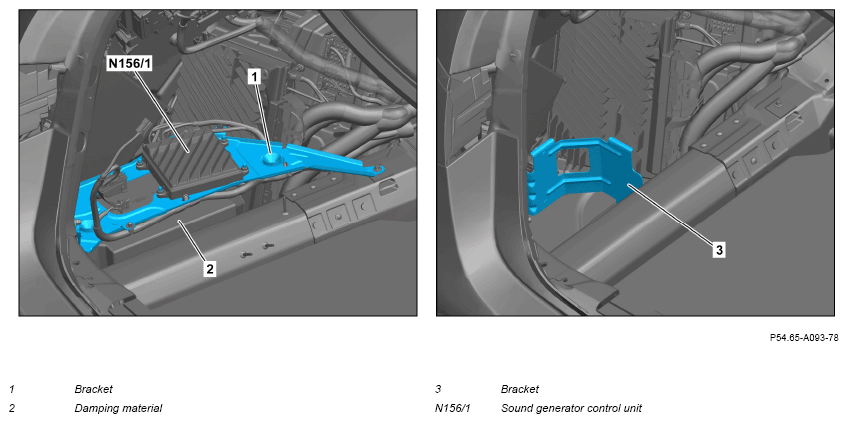

| 5 | Remove holder (1) and place to one side with connected control units and lines. | Model 223 with code 503 (Remote-controlled parking) with code 810 (Premium sound system) with code B24 (Remote control for Auxiliary heating) Model 223 with code 503 (Remote-controlled parking) with code 811 (High-End sound system) with code B24 (Remote control for Auxiliary heating) Model 223 with code 503 (Remote-controlled parking) with code 854 (Rear Seat Entertainment System Plus) with code B24 (Remote control for Auxiliary heating) Model 223 with code 503 (Remote-controlled parking) with code 97B (Engine noise reduction via speakers (EOC)) with code B24 (Remote control for Auxiliary heating) |
|
| 6 | Remove damping (2) via pneumatic pump. | Model 223 with code 406 (Multicontour rear seat) with code 503 (Remote-controlled parking) with code B24 (Remote control for Auxiliary heating) Model 223 with code 432 (Dynamic seats left and right) with code 503 (Remote-controlled parking) with code B24 (Remote control for Auxiliary heating) |
|
| 7 | Remove pneumatic pump with connected lines. | Model 223 with code 406 (Multicontour rear seat) with code 503 (Remote-controlled parking) with code B24 (Remote control for Auxiliary heating) Model 223 with code 432 (Dynamic seats left and right) with code 503 (Remote-controlled parking) with code B24 (Remote control for Auxiliary heating) |
|
| 8 | Remove the bracket (3). | Model 223 with code 406 (Multicontour rear seat) with code 503 (Remote-controlled parking) with code B24 (Remote control for Auxiliary heating) Model 223 with code 432 (Dynamic seats left and right) with code 503 (Remote-controlled parking) with code B24 (Remote control for Auxiliary heating) |
|
| 9 | Remove sound system control unit. | Model 223 with code 503 (Remote-controlled parking) with code 810 (Premium sound system) with code B24 (Remote control for Auxiliary heating) Model 223 with code 503 (Remote-controlled parking) with code 811 (High-End sound system) with code B24 (Remote control for Auxiliary heating) |
AR82.62-P-7724S |

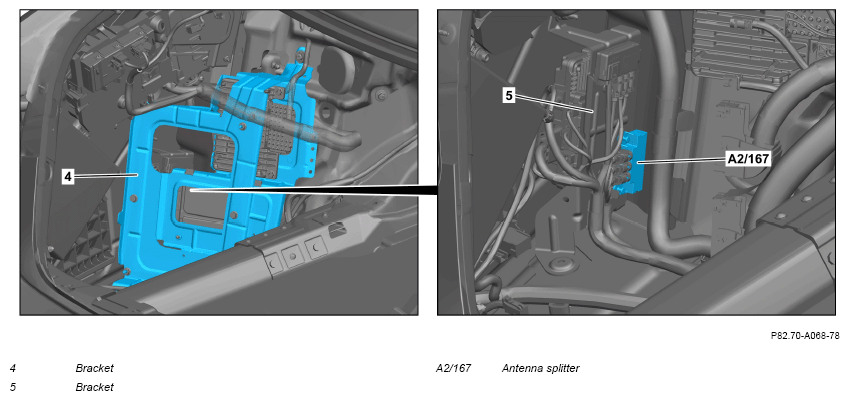

| 10 | Unclip electric lines from holder (4) and remove holder (4) with connected control units and place to one side. | ||
| 11 | Disconnect electrical connectors from antenna splitter (A2/167). | ||
| 12 | Unclip antenna splitter (A2/167) from holder (5) and remove. | ||
| 13 | Install in the reverse order. |
