Remove/Install Rear Reading Lamp - AR82.20-P-1120SG
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z50 (Gimbal lamp in left and right rear passenger compartment)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

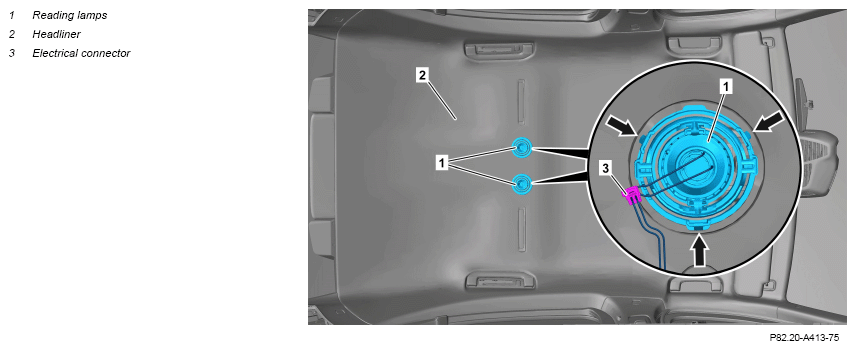

| 1 | Unclip corresponding reading lamp (1) down and out of roof lining (2) (see arrows) and remove far enough so that the electrical connector (3) is accessible. | Otherwise the roof lining (2) will be damaged. |
Fig 1 |
| 2 | Release and disconnect electrical connector (3) and remove reading lamp (1). | ||
| 3 | Install in the reverse order. |
