Remove/Install Outer Mirror Ambient Lamp - AR82.10-P-0001S
Model 223
with code 501 (360° camera)
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove glass adjustment drive. | Model 223 with code 501 (360° camera) |
|
| Model 223.0/1 with code 501 (360° camera) |
AR88.70-P-9060S | ||

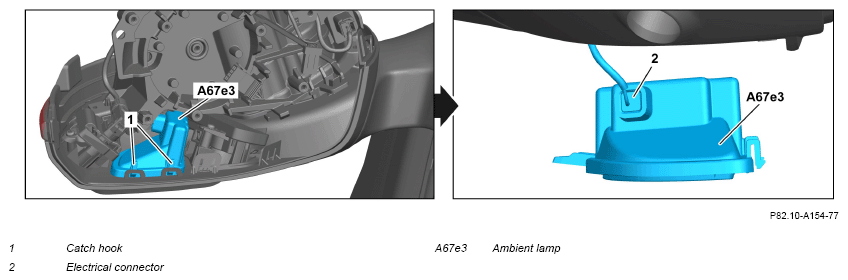

| 3 | Release catch hooks (1) and guide out ambient lamp (A67e3) downwards until electrical connector (2) is accessible. | ||
| 4 | Disconnect electrical connector (2) and remove ambient lamp (A67e3). | ||
| 5 | Install in the reverse order. |
