Remove/Install Mobile Phone Cradle - AR82.70-P-0008SA

Model 223

with code 224 (Individual rear seats)

with code 898 (Wireless telephone charging in rear passenger compartment)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

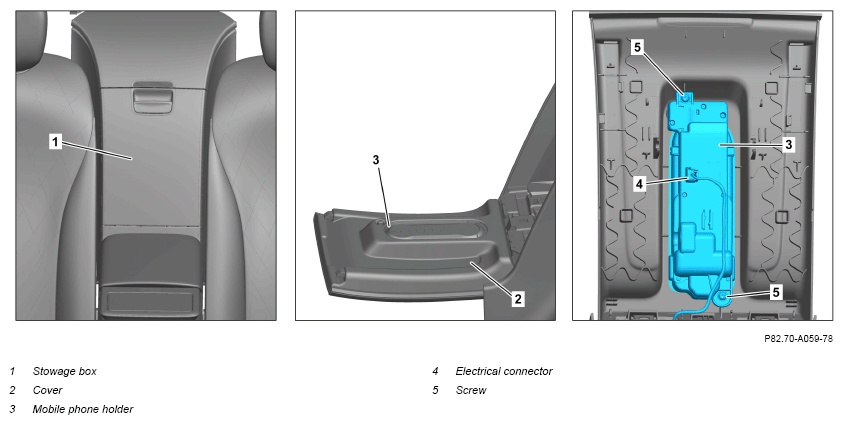

1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Open rear stowage box (1).
3	Remove cover (2) with mobile phone cradle (3) and move vertically upward with electrical line connected.	Long wedge	Fig 1
4	Release and disconnect electrical connector (4).
5	Unscrew screws (5) and remove mobile phone cradle (3).
6	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
