Remove/Install Loudspeaker In Front Footwell - AR82.62-P-7853S
Model 223
with code 524L (Russia)
Model 223
with code 810 (Premium sound system)
Model 223
with code 811 (High-End sound system)
| Remove/install | |||
| 1 | Remove lower instrument panel cover (1) on driver's side. | AR68.10-P-1501S | |

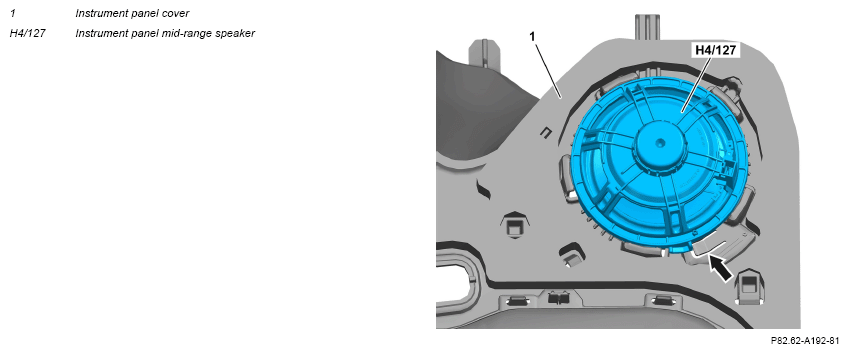

| 2 | Press in catch hook (arrow) and remove instrument panel mid-range speaker (H4/127) from instrument panel cover (1) by turning counterclockwise. | ||
| 3 | Install in the reverse order. |
