Remove/Install Front Passenger Side WLAN Antenna On Instrument Panel - AR82.85-P-0024S
Model 223
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

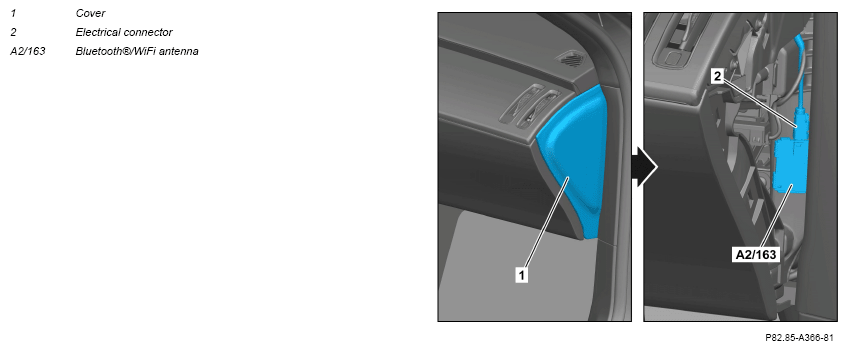

| 2 | Unclip cover (1). | ||
| 3 | Unclip Bluetooth®/Wi-Fi antenna (A2/163) with holder and remove until electrical connector (2) is accessible. | ||
| 4 | Release and disconnect electrical connector (2). | ||
| 5 | Remove Bluetooth®/Wi-Fi antenna (A2/163). | ||
| 6 | Install in the reverse order. |
