Remove/Install Antenna Changeover Switch - AR82.62-P-0010S
Model 223
with code 380 (Car telephony package)
Model 223
with code 899 (Front wireless telephone charging and antenna)

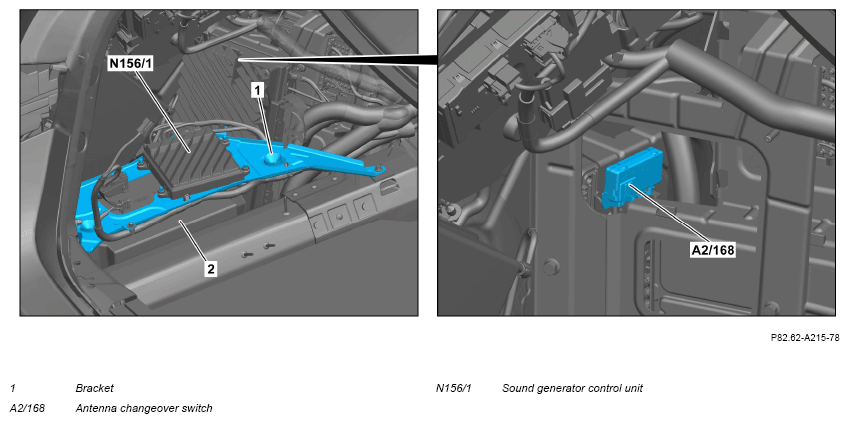

Fig 1: Antenna Changeover Switch Components Location - Model 223 With Code 380, 899 (Shown With Code 97B And 406)
Shown with code 97B (Engine noise reduction via speaker (EOC)) and with code 406 (Multicontour seats in rear passenger compartment)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove trim in the left side of the luggage compartment. | Model 223 with code 380 (Car telephony package) with code Z07 (B7 armoring on special protection version) Model 223 with code 899 (Front wireless telephone charging and antenna) with code Z07 (B7 armoring on special protection version) |
AR68.30-P-4800SG |
| Model 223 with code 380 (Car telephony package) except code Z07 (B7 armoring on special protection version) Model 223 with code 899 (Front wireless telephone charging and antenna) except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4800S | ||
| 3 | Remove subwoofer. | Model 223 with code 380 (Car telephony package) with code 811 (High-End sound system) |
|
| Model 223 with code 811 (High-End sound system) with code 899 (Front wireless telephone charging and antenna) |
AR82.62-P-7841S | ||
| 4 | Disconnect electrical connectors from sound generator control unit (N156/1). | Model 223 with code 380 (Car telephony package) with code 97B (Engine noise reduction via speakers (EOC)) Model 223 with code 899 (Front wireless telephone charging and antenna) with code 97B (Engine noise reduction via speakers (EOC)) |
|
| 5 | Remove holder (1) and place to one side with connected control units and lines. | Model 223 with code 380 (Car telephony package) with code 810 (Premium sound system) Model 223 with code 380 (Car telephony package) with code 811 (High-End sound system) Model 223 with code 380 (Car telephony package) with code 854 (Rear Seat Entertainment System Plus) Model 223 with code 380 (Car telephony package) with code 97B (Engine noise reduction via speakers (EOC)) Model 223 with code 810 (Premium sound system) with code 899 (Front wireless telephone charging and antenna) Model 223 with code 811 (High-End sound system) with code 899 (Front wireless telephone charging and antenna) Model 223 with code 854 (Rear Seat Entertainment System Plus) with code 899 (Front wireless telephone charging and antenna) Model 223 with code 899 (Front wireless telephone charging and antenna) with code 97B (Engine noise reduction via speakers (EOC)) |
|
| 6 | Remove sound system control unit. | Model 223 with code 380 (Car telephony package) with code 810 (Premium sound system) Model 223 with code 380 (Car telephony package) with code 811 (High-End sound system) Model 223 with code 810 (Premium sound system) with code 899 (Front wireless telephone charging and antenna) Model 223 with code 811 (High-End sound system) with code 899 (Front wireless telephone charging and antenna) |
AR82.62-P-7724S |
| 7 | Disconnect electrical connectors from antenna changeover switch (A2/168). | ||
| 8 | Unclip telephone antenna changeover switch (A2/168) and remove. | Fig 2 | |
| 9 | Install in the reverse order. |
