Check Wiper Arms And Adjust - AR82.30-P-6000S

Model 223

Courtesy of MERCEDES-BENZ USA

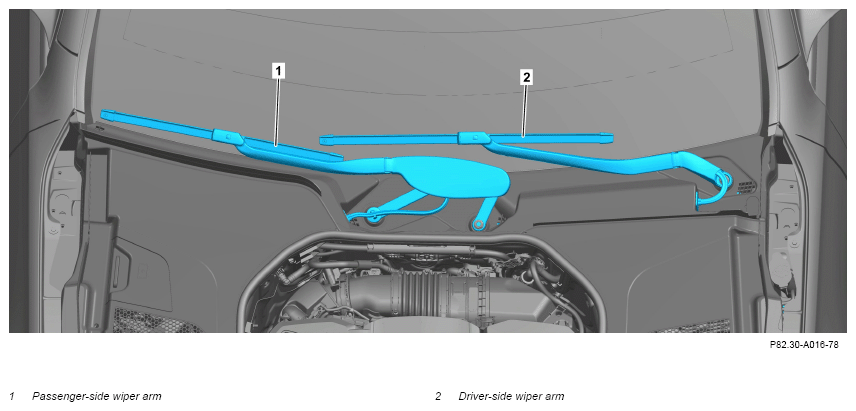

Shown on model 223 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Notes on wiper arm adjustment		AH82.30-P-0001-01A
	Remove
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Move windshield wiper system into reversing position.	Do not move the windshield wiper system beyond the reversing position.
3	Remove wiper blades.	When working on the driver-side wiper arm (2) or passenger-side wiper arm (1), make sure that it does not drop onto the windshield. Otherwise, there is a risk of damage to the windshield.
	Clean
4	Clean wiper blade mounts on driver-side wiper arm (2) and passenger-side wiper arm (1) using a clean cloth.
	Check
5	Check angle of incidence of driver-side wiper arm (2) and passenger-side wiper arm (1) relative to windshield.	At the change from reversing position to park position, ensure that the driver-side wiper arm (2) and the passenger-side wiper arm (1) do not make direct contact with the windshield. Otherwise windshield will be damaged.	AR82.30-P-6000-01ME
		Angle of incidence of passenger-side wiper arm in reversing position	*BE82.30-P-1002-01M
		Angle of incidence of driver-side wiper arm in reversing position	*BE82.30-P-1001-01M
		Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Adjusting tool set	Fig 4
		Model 223 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Adapter	Fig 3
		Model 223 except code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Adapter	Fig 1
	Adjust
6	Adjust angle of incidence of driver-side wiper arm (2) or passenger-side wiper arm (1) in parked position.	If check values deviate from tolerance range in reversing position or in parked and reversing position. Model 223 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)	AR82.30-P-6100-01ME
		Model 223 except code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Overlap the driver-side wiper arm (2) and the passenger-side wiper arm (1) by at least the value of the tolerance deviation in reversing position.	AR82.30-P-6100-01MEB
		Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Adjusting tool set	Fig 4
		Model 223 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Adapter	Fig 2
		Model 223 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Adapter	Fig 3
		Model 223 except code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) Adapter	Fig 1
	Install
7	Install wiper blades.

Fig 1: Identifying Adapter (205 589 00 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter (292 589 00 40 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adapter (231 589 00 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adjusting Tool Set (211 589 02 21 00)

Courtesy of MERCEDES-BENZ USA
