Remove/Install Seat Belt Height Adjuster On B-Pillar - AR91.40-P-1105S

Model 223

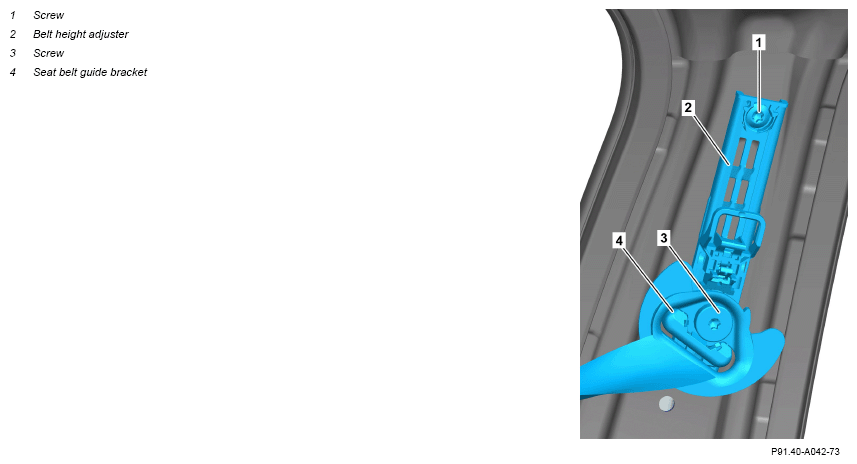

Fig 1: Seat Belt Height Adjuster On B-Pillar Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Release upper B-pillar trim and place to one side.	Model 223 except code Z07 (B7 armoring on special protection version) Do not remove belt end fitting at the front seat.	AR68.30-P-4700S
2	Unscrew screw (3) and remove seat belt guide bracket (4).	Bolt at front belt guide bracket	*BA91.40-P-1005-01T
3	Remove screw (1).	Bolt at front belt height adjuster	*BA91.40-P-1006-01T
4	Unhook seat belt height adjuster (2) and remove upwards.	Ensure the belt height adjuster (2) is seated correctly in the B-pillar.
5	Install in the reverse order.

SEAT BELTS AND EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 223 with code Z07 (B7 armoring on special protection version)	Model 223 except code Z07 (B7 armoring on special protection version)
BA91.40-P-1005-01T	Bolt at front belt guide bracket	Nm	35	35

SEAT BELTS AND EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 223 with code Z07 (B7 armoring on special protection version)	Model 223 except code Z07 (B7 armoring on special protection version)
BA91.40-P-1006-01T	Bolt at front belt height adjuster	Nm	35	35
