Remove/Install Rear Seat Head Restraint Motor - AR91.29-P-1460S
Model 223
with code 223 (Electric backrest adjustment and head restraints)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove respective head restraint. | Model 223 with code 223 (Electric backrest adjustment and head restraints) except code 224 (Rear individual seat design) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Rear individual seat design) |
AR91.16-P-1770SA |

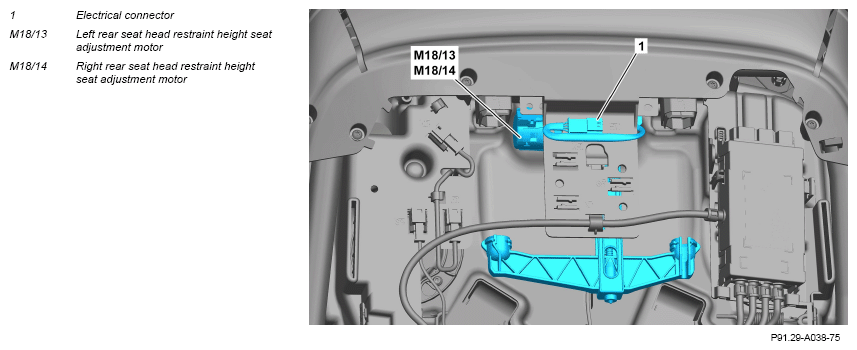

| 2 | Remove and disconnect electrical connector (1). | ||
| 3 | Release and remove rear seat head restraint height seat adjustment motor (M18/13, M18/14). | ||
| 4 | Install in the reverse order |
