Remove/Install Operating Switch For Electric Seat Adjustment On Door Panel - AR91.29-P-2522S
Model 223
MODIFICATION NOTES
| 19.10.2020 | AR82.20-P-0003-01S added. | Operation step 3 |
| Remove/install | |||
| 1 | Remove corresponding front door trim. | When removing front seat adjustment switch group (S22, S23). | |
| AR72.10-P-6575S | |||
| 2 | Remove corresponding door trim in rear. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 276 (Memory feature in rear) When removing rear seat adjustment switch group (S55/1, S55/2). |
|
| AR72.12-P-1011S | |||

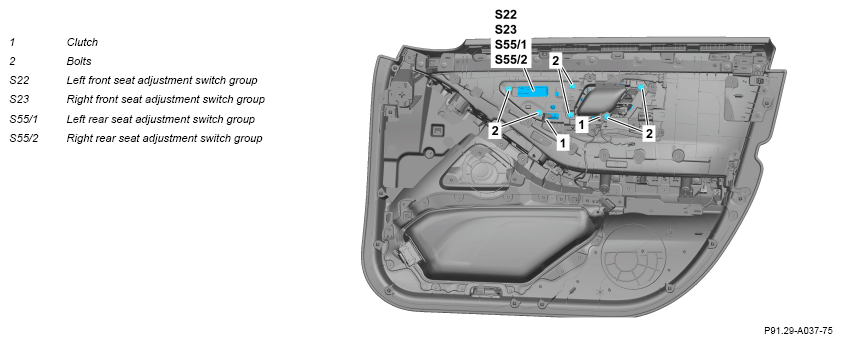

| 3 | Remove couplings (1) from light-guiding elements. | Model 223 with code 891 (Premium ambiance illumination) |
|
| Model 223 up to model year 2021 with code 891 (Premium ambiance illumination) up to model year 2021 with code 891 (Premium ambiance illumination) Commercially available devices/tools Cutter |
AR82.20-P-0003-01S | ||
| 4 | Disconnect electrical connector from seat adjustment switch group (S22, S23, S55/1, S55/2). | ||
| 5 | Remove screw/bolts (2). | ||
| 6 | Unclip and remove seat adjustment switch group (S22, S23, S55/1, S55/2). | ||
| 7 | Install in the reverse order. |
