Remove/Install Multicontour Backrest Air Cushion - AR91.25-P-1740S
Model 223
with code 432 (Dynamic seats left and right)
| Remove/install | |||

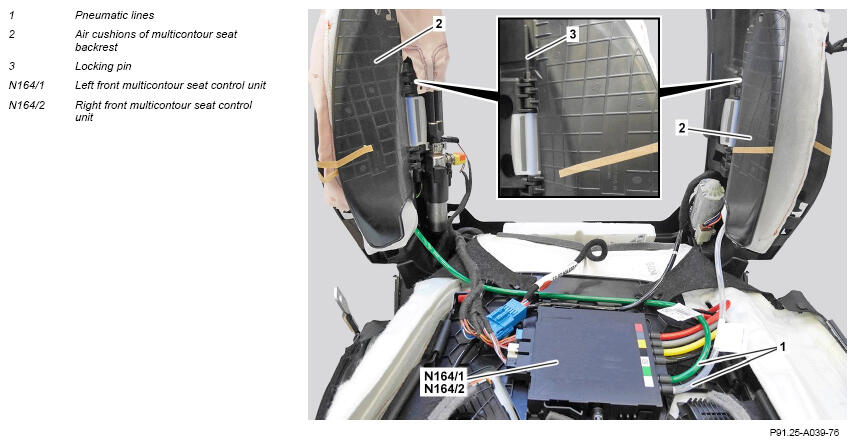

| 1 | Unfasten seat backrest padding until multicontour seat backrest air cushions (2) are accessible. | AR91.10-P-0003S | |
| 2 | Disconnect pneumatic lines (1) from front multicontour seat control unit (N164/1, N164/2). | Ensure correct routing of the pneumatic lines. Malfunctions can occur otherwise. |
|
| 3 | Pull out safety pins (3) and remove multicontour seat backrest air cushions (2). | ||
| 4 | Install in the reverse order. |
