Remove/Install Front Seat Ventilation Motors On Backrest - AR91.30-P-1902S

Model 223

with code 401 (Climatised front seats)

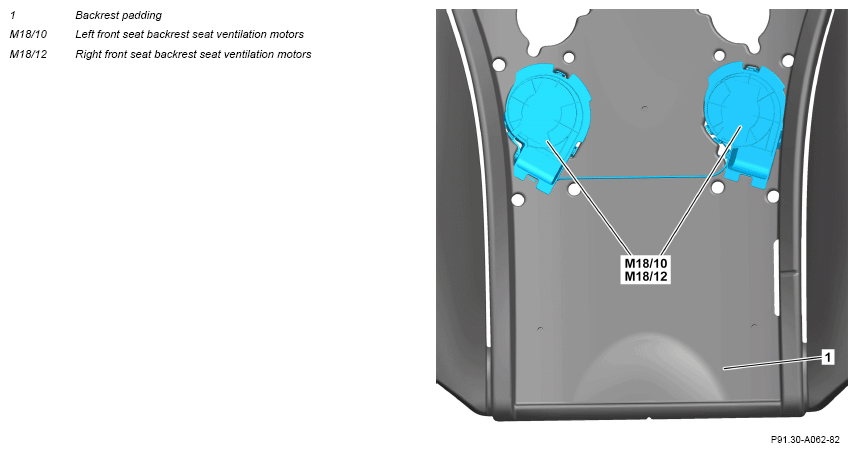

Fig 1: Front Seat Ventilation Motors On Backrest Components Location - Model 223 With Code 401

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover from seat backrest.		AR91.18-P-1820S
2	Release air cushion with massage function far enough until the front seat backrest seat ventilation motors (M18/10, M18/12) are accessible.	Model 223 with code 401 (Climatised front seats) with code 432 (Dynamic seats left and right)	AR91.25-P-1751S
3	Release and remove front seat backrest seat ventilation motors (M18/10, M18/12) in the seat backrest padding (1).
4	Install in the reverse order.
