Remove, Replace And Install Rear Center Seat Belt - AR91.40-P-0683S
Model 223
except code 224 (Individual rear seats)
Shown except code 223 (Electric rear seat backrest adjustment and head restraints)
| Risk of injury . Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove rear shelf. | Model 223 except code 224 (Individual rear seats) except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4581S |

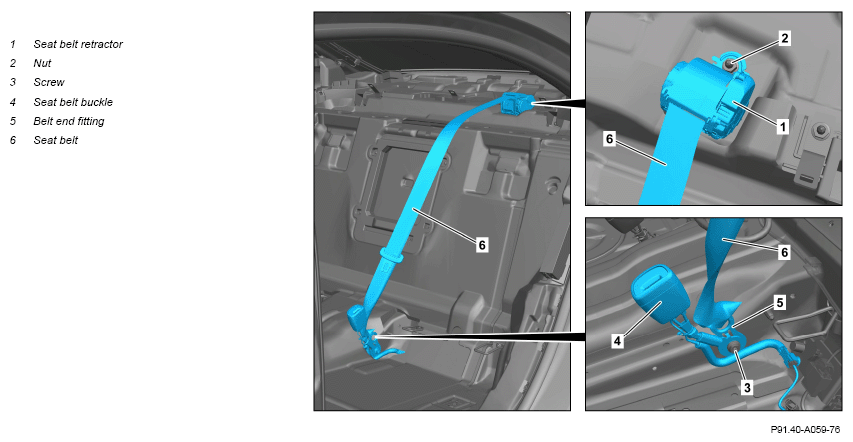

| 3 | Remove damping over seat belt retractor (1). | ||
| 4 | Remove nut (2) from seat belt retractor (1). | *BA91.40-P-1010-01T | |
| 5 | Remove screw (3) and place seat belt buckle (4) to one side with electric line still connected. | *BA91.40-P-1011-01T | |
| 6 | Remove seat belt end fitting (5) from seat belt buckle (4). | ||
| 7 | Remove seat belt (6) from vehicle together with seat belt retractor (1). | ||
| 8 | Install in the reverse order. |
SEAT BELTS AND EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) | Model 223 except code Z07 (B7 armoring on special protection version) | |
|---|---|---|---|---|
| BA91.40-P-1010-01T | Nut, rear belt retractor to rear panel crossmember (rear shelf) | Nm | 35 | 35 |
SEAT BELTS AND EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) |
Model 223 except code Z07 (B7 armoring on special protection version) |
|
|---|---|---|---|---|
| BA91.40-P-1011-01T | Bolt/nut for rear belt end fitting | Nm | 35 | 35 |
