Assist Evasive Maneuver, Function Schematic - PE54.71-P-2503-97B
Model 223, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | ESP®, status | 17F |
| 1 | ESP®, status | 10G |
| 10 | Trailer recognition, status | 16E |
| 11 | Electric power steering, request | 31F |
| 11 | Electric power steering, request | 24F |
| 12 | Electric power steering actuator motor, actuation | 37G |
| 2 | Gear stage, signal | 10J |
| 2 | Gear stage, signal | 16F |
| 3 | Steering wheel angle, signal | 10A |
| 3 | Steering wheel angle, signal | 16F |
| 4 | Wheel speed, signal | 16F |
| 4 | Wheel speed, signal | 10G |
| 5 | Wheel rotation direction, signal | 17E |
| 5 | Wheel rotation direction, signal | 9G |
| 6 | Electric power steering, status | 10C |
| 6 | Electric power steering, status | 16E |
| 7 | Wheel angle, signal | 10C |
| 7 | Wheel angle, signal | 16E |
| 8 | Object information, data | 16E |
| 9 | Tire pressure monitor, message | 17E |
| A91b1 | Electric power steering torque sensor | 3E |

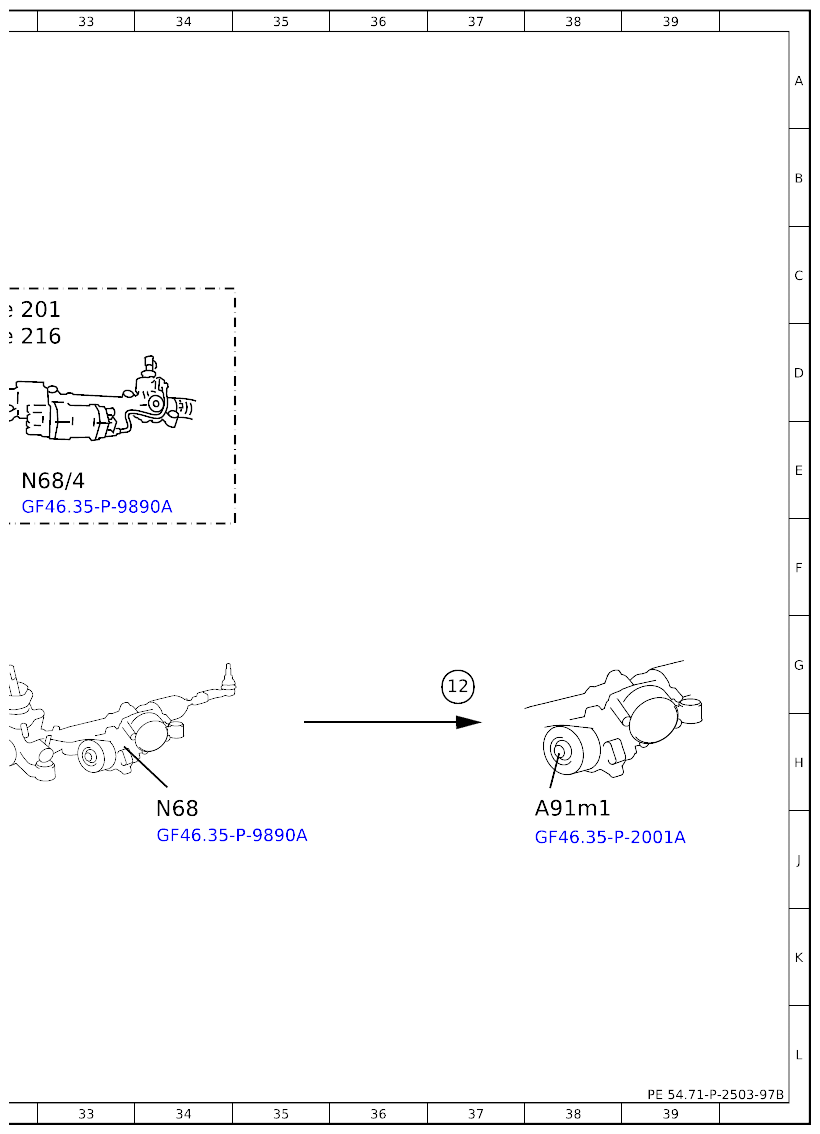

| A91m1 | Electric power steering actuator motor | 38J |
| Code 200 | Conditionally automated driving | 2G |
| Code 200 | Conditionally automated driving | 2F |
| Code 201 | Rear axle steering | 32C |
| Code 216 | Rear axle steering | 32D |
| Code 503 | Remote-controlled parking | 2F |
| Code 503 | Remote-controlled parking | 2G |
| Ethernet | Ethernet | 15F |
| Ethernet | Ethernet | 22F |
| Flex E | Chassis FlexRay | 8G |
| Flex E | Chassis FlexRay | 29F |
| Flex E | Chassis FlexRay | 8D |
| Flex E | Chassis FlexRay | 8B |
| Flex E | Chassis FlexRay | 8K |
| N127 | Drivetrain control unit | 3J |
| N30/10 | Electronic Stability Program control unit | 3H |
| N30/3 | Electronic Stability Program control unit | 3G |
| N62/4 | Driver assistance systems control unit | 18G |
| N68 | Power steering control unit | 34J |
| N68 | Power steering control unit | 6E |
| N68/4 | Rear axle steering control unit | 32E |

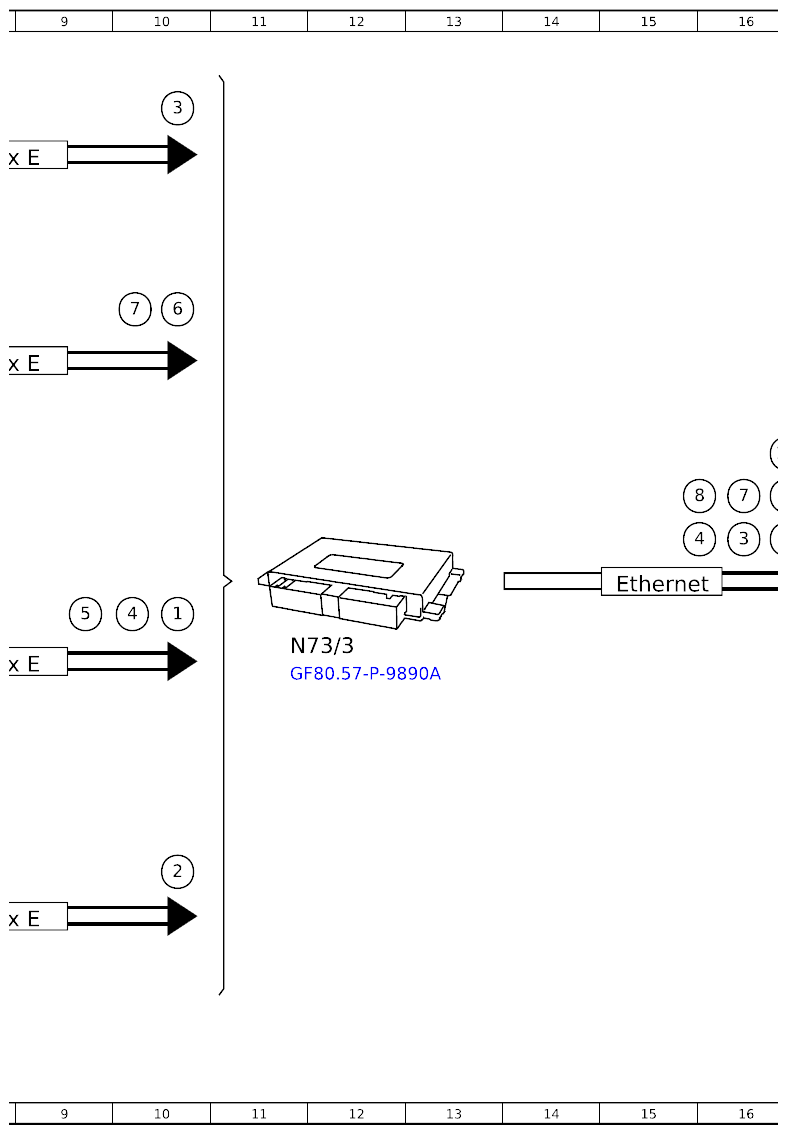

| N73/3 | Electronic ignition switch control unit | 11G |

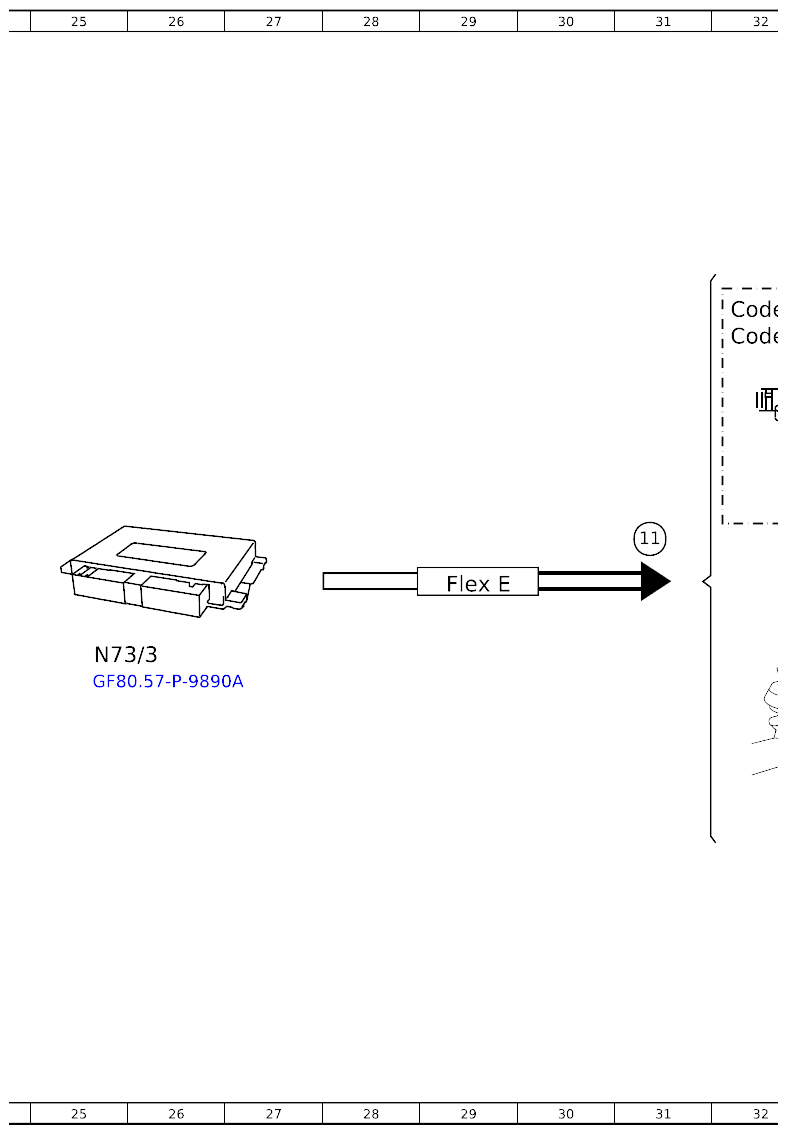

| N73/3 | Electronic ignition switch control unit | 25G |

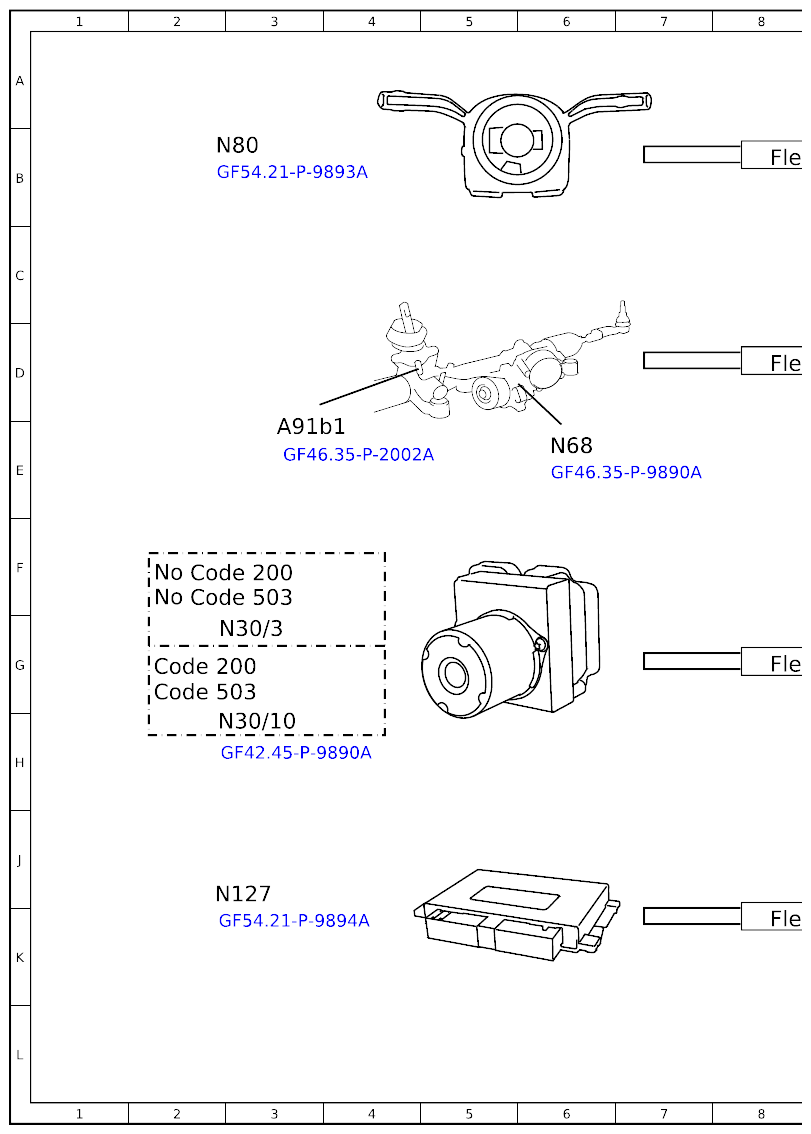

| N80 | Steering column module control unit | 3B |
