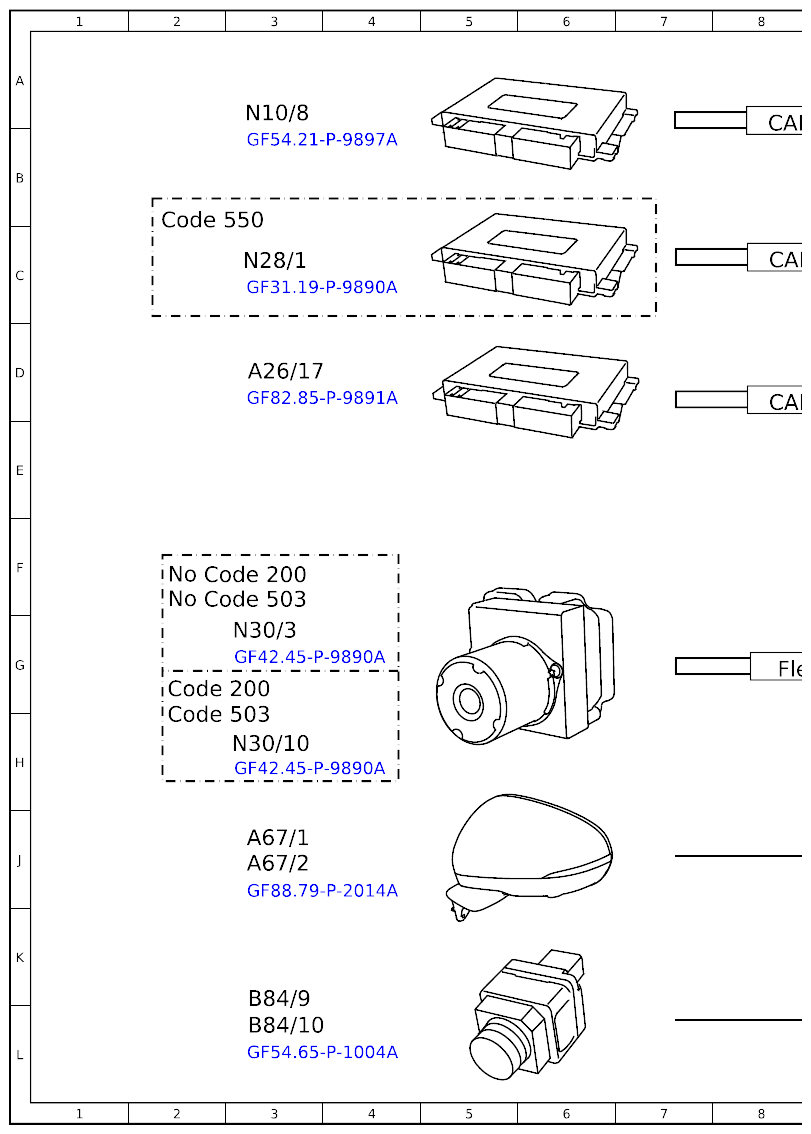

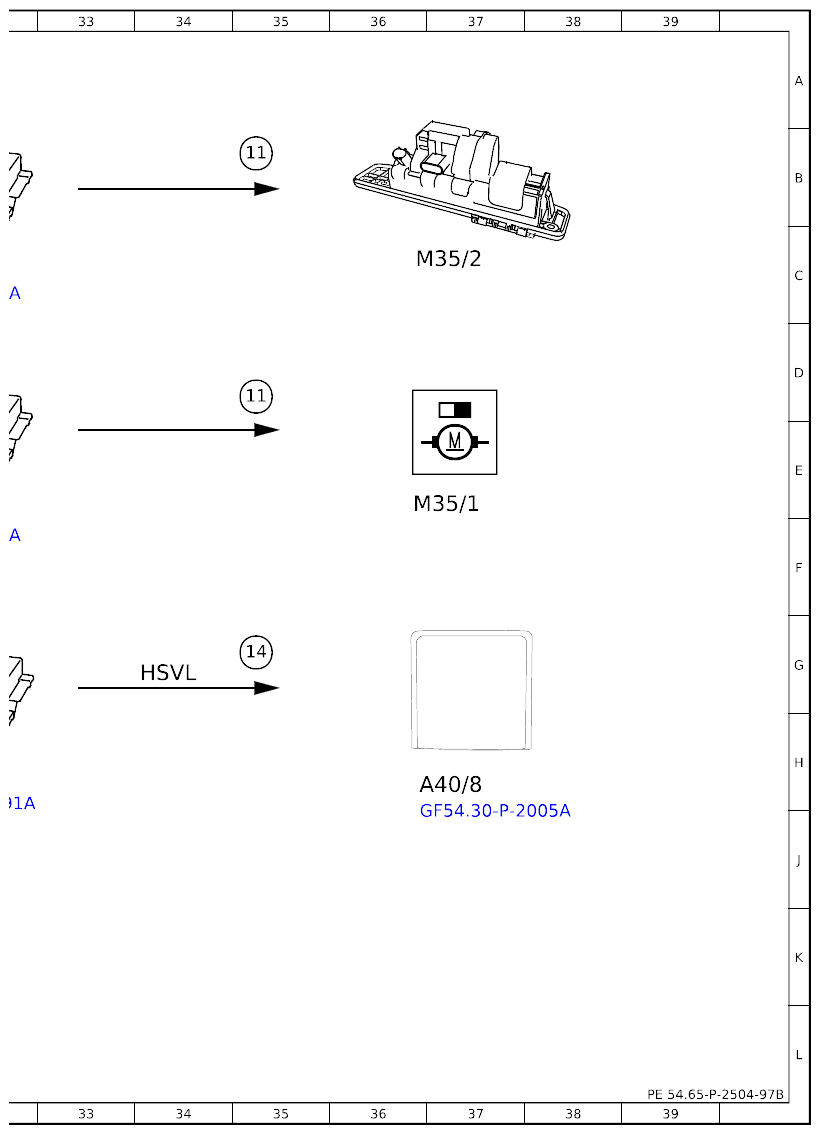

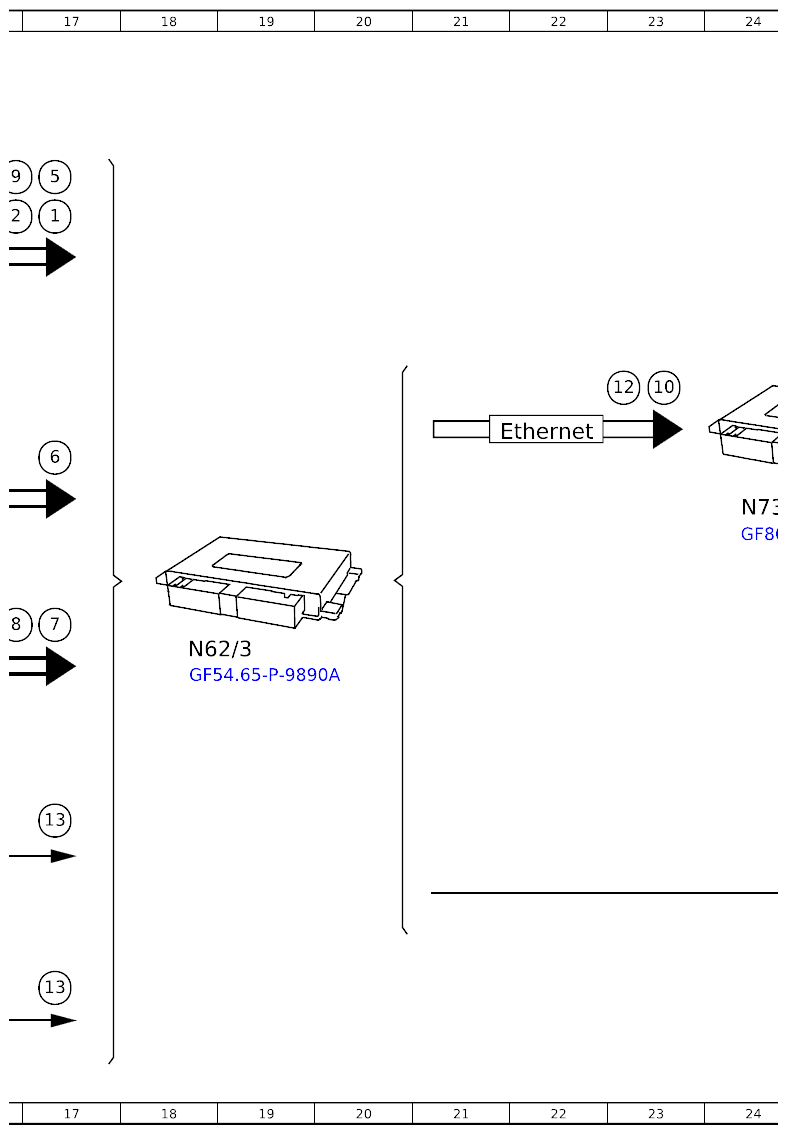

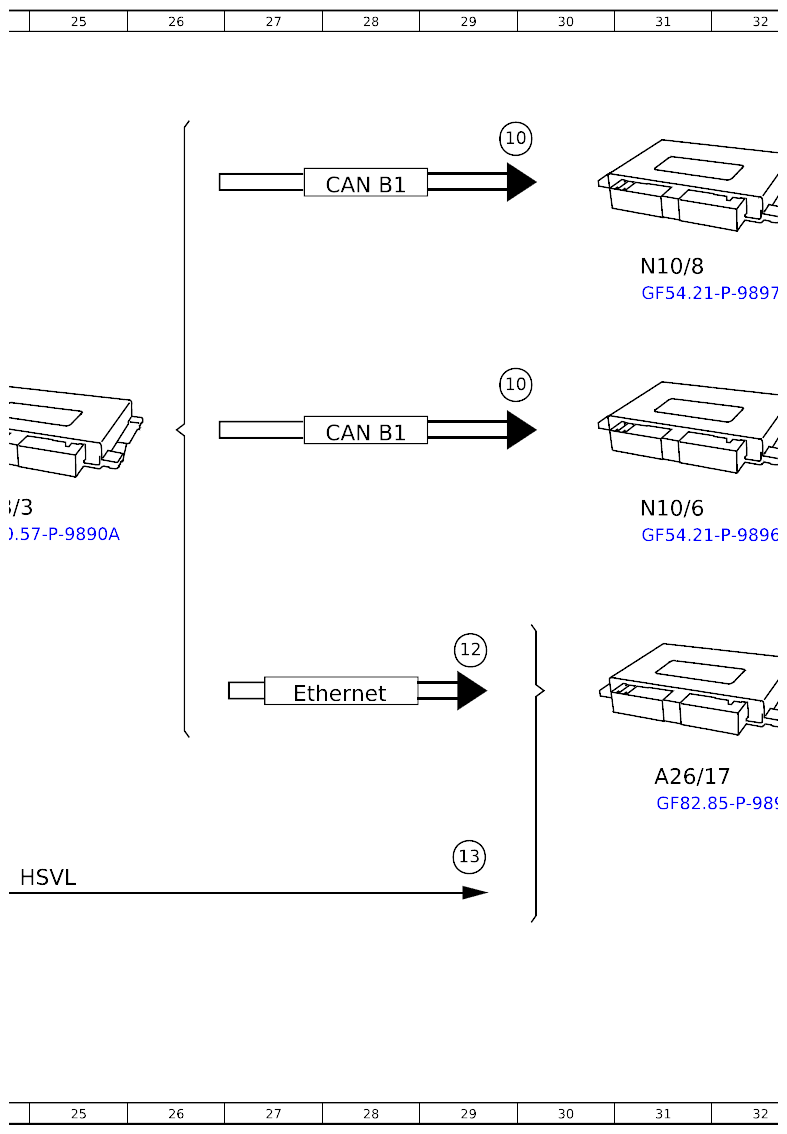

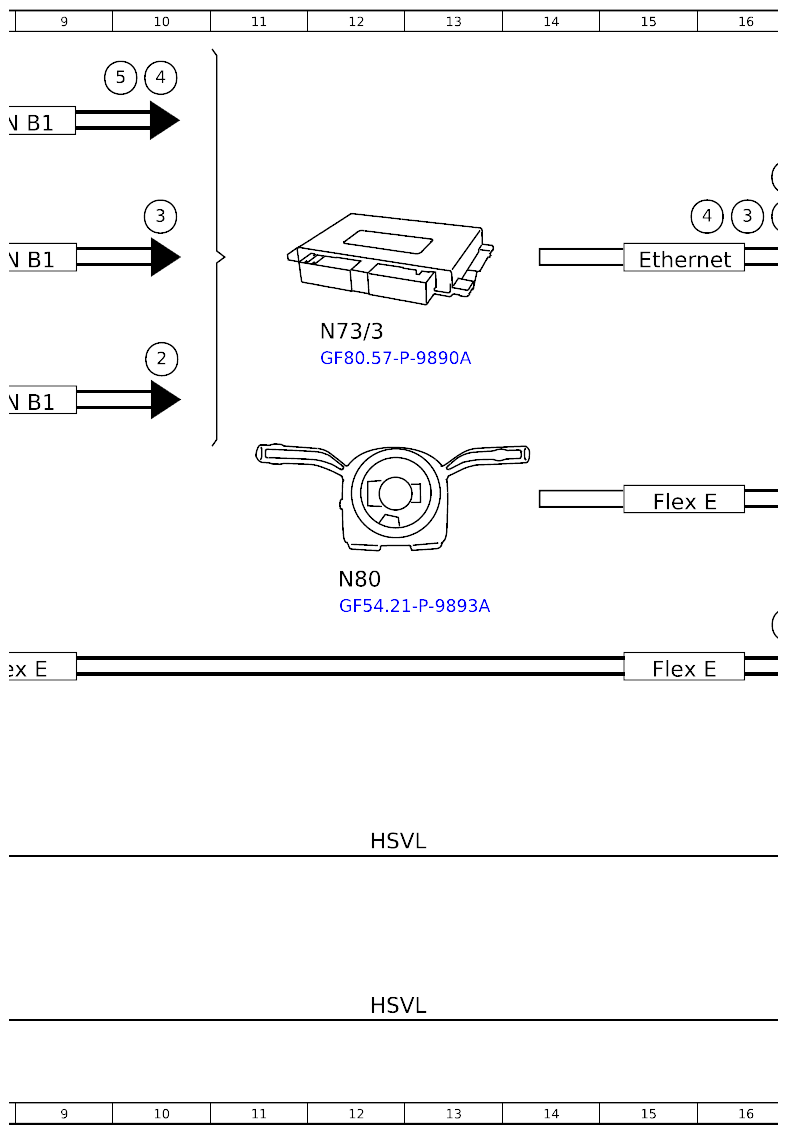

360 Degree Camera Picture Display, Function Schematic - PE54.65-P-2504-97B
Model 223, 297
with code 501 (360° camera)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 17B |
| 10 | "Open" rear camera cover, request | 23D |
| 10 | "Open" rear camera cover, request | 29A |
| 10 | "Open" rear camera cover, request | 29D |
| 11 | Rear camera cover motor, actuation | 35B |
| 11 | Rear camera cover motor, actuation | 35D |
| 12 | Reversing camera display, request | 23D |
| 12 | Reversing camera display, request | 29G |
| 13 | Camera image, signal | 29J |
| 13 | Camera image, signal | 17J |
| 13 | Camera image, signal | 17K |
| 14 | Image data, signal | 35G |
| 2 | Backup camera function, status | 16B |
| 2 | Backup camera function, status | 10D |
| 3 | Trailer recognition, status | 16B |
| 3 | Trailer recognition, status | 10B |
| 4 | Trunk lid/liftgate lock main catch switch, status | 10A |
| 4 | Trunk lid/liftgate lock main catch switch, status | 16B |
| 5 | Rear camera cover motor switch, status | 10A |
| 5 | Rear camera cover motor switch, status | 17B |
| 6 | Steering wheel angle, signal | 17E |
| 7 | Wheel speed, signal | 17G |
| 8 | Wheel rotation direction, signal | 16G |
| 9 | Reverse gear, status | 16B |
| A26/17 | Head unit | 3D |
| A26/17 | Head unit | 31H |
| A40/8 | Touchscreen | 37H |
| A67/1 | Left outside mirror | 3J |
| A67/2 | Right outside mirror | 3J |
| B84/10 | Camera for rear 360° camera | 3L |
| B84/9 | Camera for front 360° camera | 3L |
| CAN B1 | CAN 1 for vehicle interior | 8C |
| CAN B1 | CAN 1 for vehicle interior | 8B |
| CAN B1 | CAN 1 for vehicle interior | 28B |
| CAN B1 | CAN 1 for vehicle interior | 8D |
| CAN B1 | CAN 1 for vehicle interior | 28E |
| Code 200 | Conditionally automated driving | 2G |
| Code 200 | Conditionally automated driving | 2F |
| Code 503 | Remote-controlled parking | 2F |
| Code 503 | Remote-controlled parking | 2H |
| Code 550 | Trailer hitch | 2C |
| Ethernet | Ethernet | 15C |
| Ethernet | Ethernet | 22E |
| Ethernet | Ethernet | 27G |
| Flex E | Chassis FlexRay | 8G |
| Flex E | Chassis FlexRay | 15E |
| Flex E | Chassis FlexRay | 15G |
| HSVL | High-speed video link | 34G |
| HSVL | High-speed video link | 12L |
| HSVL | High-speed video link | 25J |
| HSVL | High-speed video link | 12J |
| M35/1 | Camera cover motor | 37E |
| M35/2 | Camera cover motor | 37C |
| N10/6 | Front signal acquisition and actuation module control unit | 31E |
| N10/8 | Rear signal acquisition and actuation module control unit | 31C |
| N10/8 | Rear signal acquisition and actuation module control unit | 3A |
| N28/1 | Trailer recognition control unit | 3C |
| N30/10 | Electronic Stability Program control unit | 3H |
| N30/3 | Electronic Stability Program control unit | 3G |
| N62/3 | Parking system control unit | 18G |
| N73/3 | Electronic ignition switch control unit | 12D |
| N73/3 | Electronic ignition switch control unit | 24E |
| N80 | Steering column module control unit | 12F |
