Remove/Install Additional Battery - AR54.10-P-0007SG

Model 223 with engine 279

with code Z07 (B7 armoring on special protection version)

except code 200 (Conditionally automated driving)

except code 503 (Remote-controlled parking)

except code ME10 (Hybrid vehicle (plug-in, PHEV))

Courtesy of MERCEDES-BENZ USA

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Notes on battery		AH54.10-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

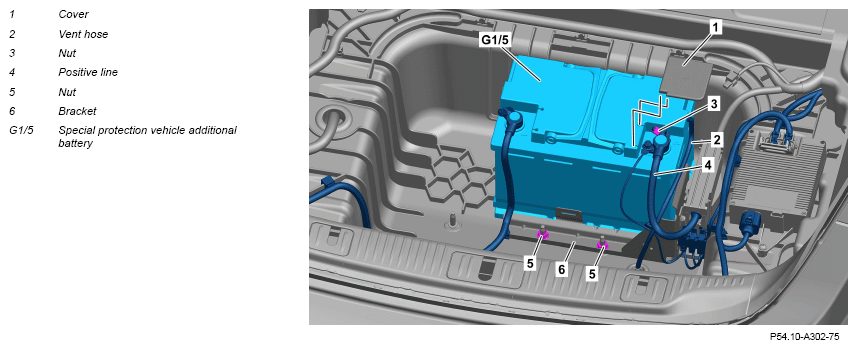

1	Disconnect ground line from special protection vehicle additional battery (G1/5).		AR54.10-P-0004SG
2	Remove cover (1).
3	Unfasten nut (3) and remove positive line (4) from positive terminal of special protection vehicle auxiliary battery (G1/5).	Nut, charging cable to negative terminal/positive terminal of emergency start battery	*BA54.10-P-1009-01N
4	Remove nuts (5) and remove holder (6).	Bolt, battery frame to body	*BA54.10-P-1006-01N
5	Remove vent hose (2).
6	Remove special protection vehicle auxiliary battery (G1/5).
7	Install in the reverse order.
