Charge Battery Of 12 V On-Board Electrical System - AR54.10-P-1133S
Model 192, 232
Model 206
Model 214
Model 223
Model 236
Model 254
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Check | |||
| 1 | Check condition of on-board electrical system battery. | AR54.10-P-1131S | |
| Charging | |||

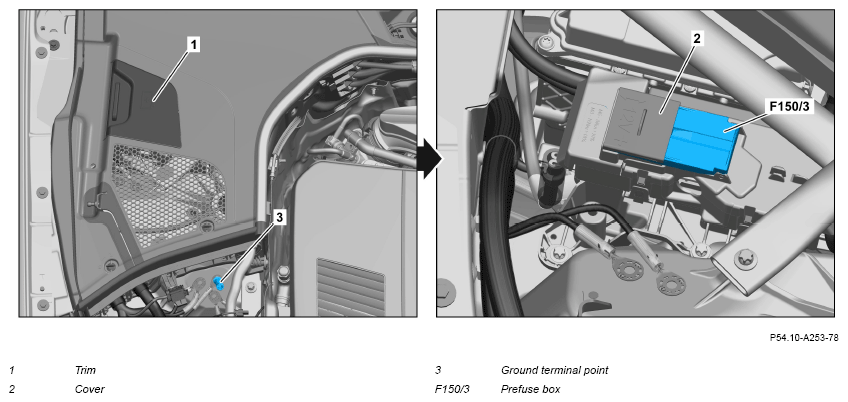

| 2 | Open trim (1) in engine compartment at right. | ||
| 3 | Expose charging terminal point of pre-fuse box (F150/3) by moving cover (2). | ||
| 4 | Clip charger positive clamp onto charging terminal point of pre-fuse box (F150/3), then clip charger ground clamp onto ground terminal point (3). | ||
| 000 588 07 81 00 Charger | Otherwise a short circuit will cause damage. |
WS54.00-P-0127B | |
| 5 | Switch on charger. | ||
| 6 | Charge on-board electrical system battery. | Charge the on-board electrical system battery using an approved charger only. The on-board electrical system battery is sufficiently charged when the displayed charging current is < 5 A. |
|
| 7 | Switch off charger. | ||
| 8 | Disconnect charger ground clamp from ground terminal point (3), then disconnect charger positive terminal from charging terminal point of pre-fuse box (F150/3). | ||
| 9 | Close charging terminal point of pre-fuse box (F150/3) by moving cover (2). | ||
| 10 | Close trim (1) in engine compartment at right. |
