Quiescent Current Management, Function Schematic - PE54.10-P-2502-97B
Model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Battery sensor, signal | 14C |
| 2 | Rest mode, request | 13H |
| 3 | Battery disconnect switch relay, actuation | 27F |
| 3 | Battery disconnect switch relay, actuation | 27B |
| 4 | Rest mode, status | 26H |
| 5 | Image data, signal | 32H |

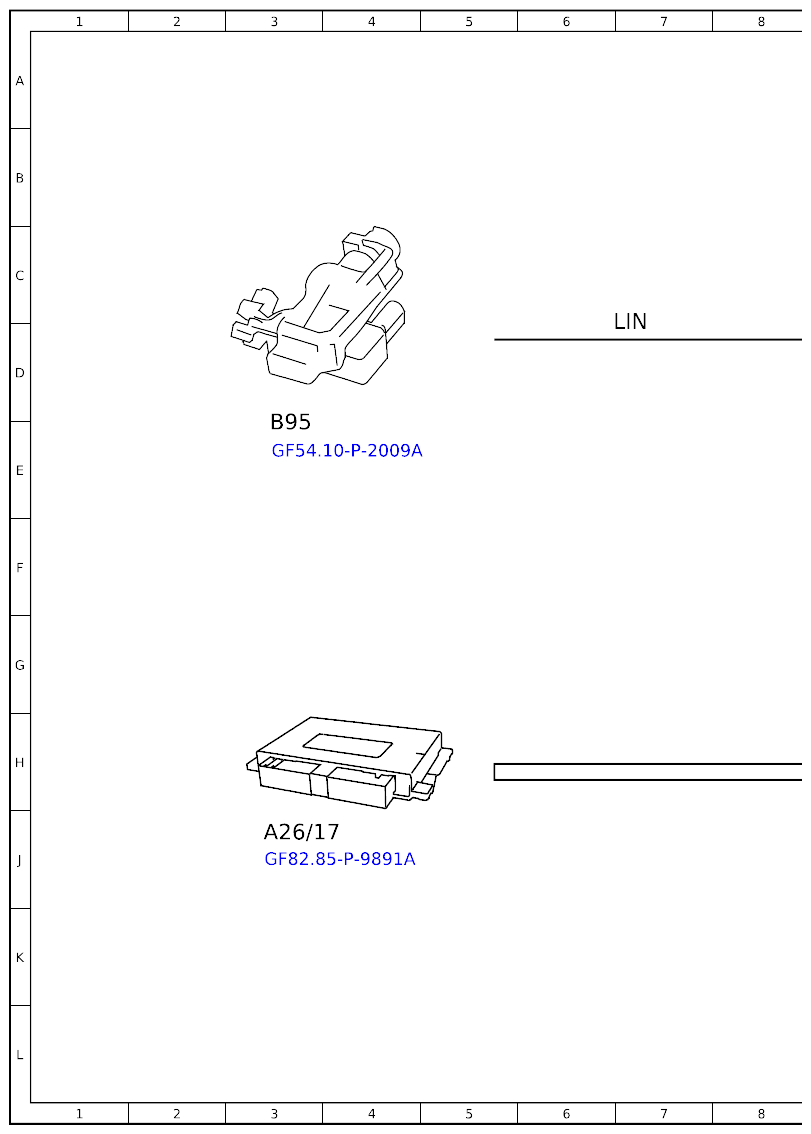

| A26/17 | Head unit | 3J |

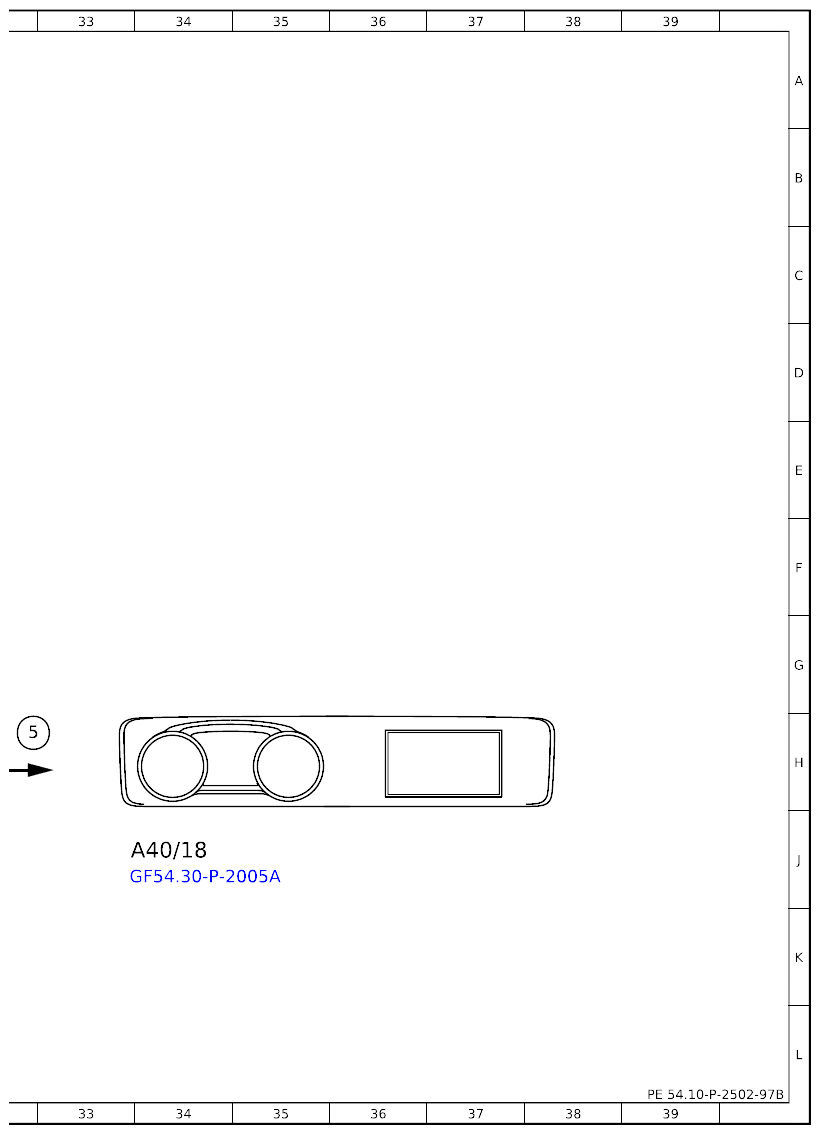

| A40/18 | Instrument cluster display | 33J |
| B95 | Battery sensor | 3E |
| Code ME10 | Hybrid vehicle | 18E |
| Code ME10 | Hybrid vehicle | 18B |
| Ethernet | Ethernet | 9H |
| Ethernet | Ethernet | 22H |

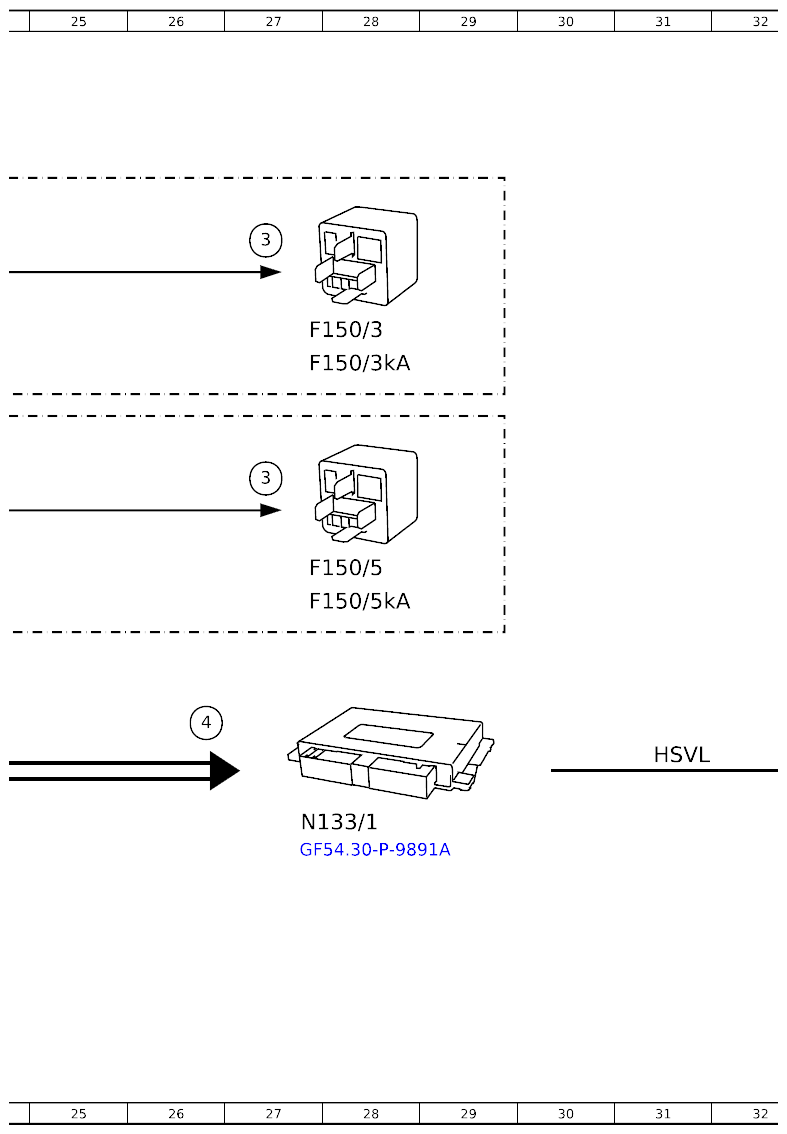

| F150/3 | Pre-fuse box | 27D |
| F150/3kA | Relay A | 27D |
| F150/5 | Rear pre-fuse box | 27F |
| F150/5kA | Relay A | 27F |
| HSVL | High-speed video link | 31H |
| LIN | Local Interconnect Network | 12D |
| LIN | Local Interconnect Network | 7D |
| N133/1 | Instrument cluster control unit | 27J |
| N73/3 | Electronic ignition switch control unit | 15F |
