Function Schematic, ECO Start/Stop Function Energy Management - PE54.10-P-2500-97F
Model 223, 232
except code B01 (48V technology)
except code ME10 (Hybrid vehicle (plug-in, PHEV))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Battery sensor, signal | 9C |
| 2 | On-board electrical system energy state, signal | 17D |
| 3 | Engine running, signal | 17G |
| 4 | Engine stop, request | 24C |
| 5 | Engine start, request | 23C |
| 6 | Starter circuit 50 relay, actuation | 29C |
| 7 | Circuit 50, status | 33D |
| 8 | Instrument cluster message, request | 24F |
| 8 | Instrument cluster message, request | 29G |
| 9 | Image data, signal | 35G |

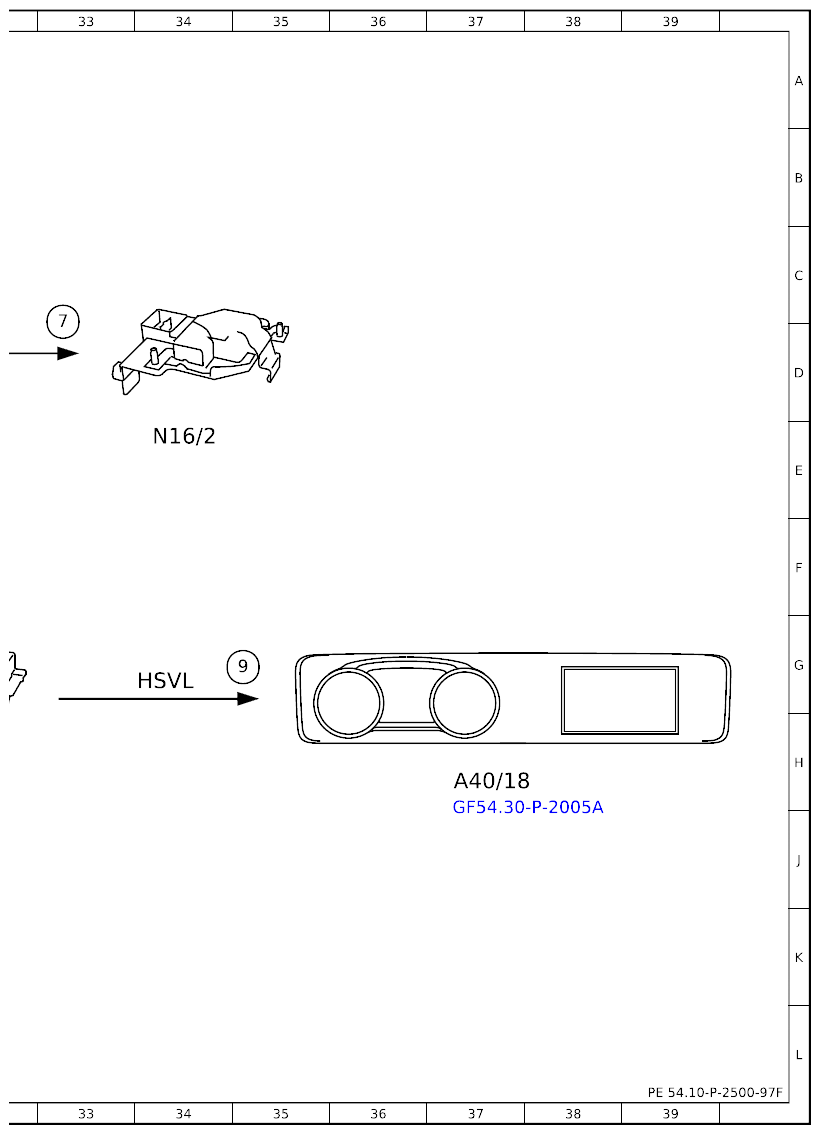

| A40/18 | Instrument cluster display | 37H |
| B95 | Battery sensor | 1E |
| CAN C | CAN for engine | 15G |
| CAN C | CAN for engine | 22D |
| Ethernet | Ethernet | 28G |

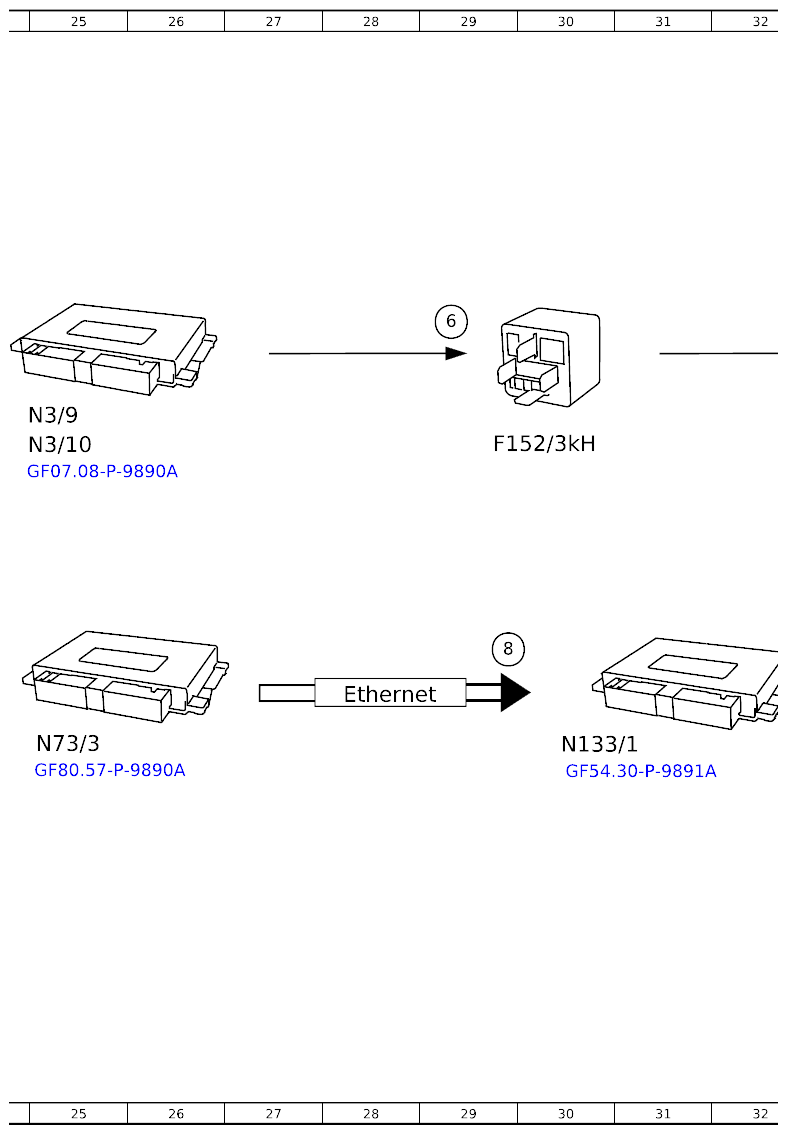

| F152/3kH | Relay H | 30E |
| Flex E | Chassis FlexRay | 23G |
| Flex E | Chassis FlexRay | 15D |
| HSVL | High-speed video link | 34G |
| LIN | Local Interconnect Network | 6D |

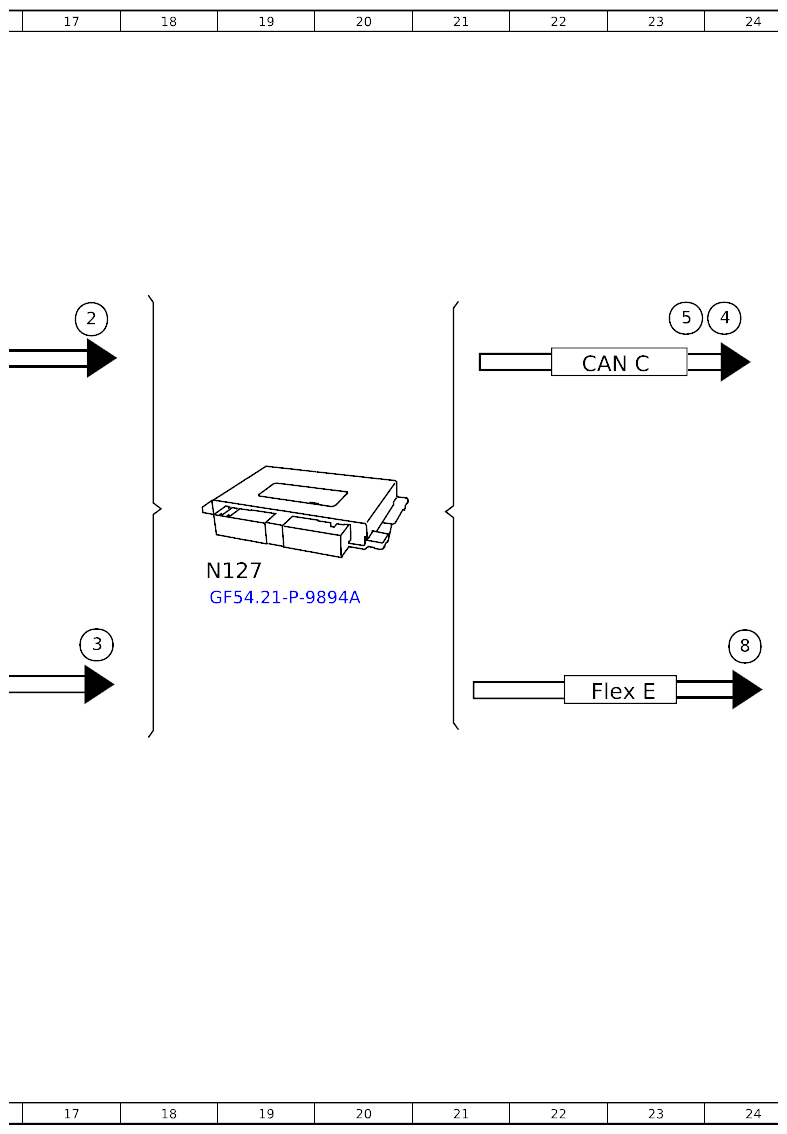

| N127 | Drivetrain control unit | 19F |
| N133/1 | Instrument cluster control unit | 30H |
| N16/2 | Voltage dip limiter | 34E |
| N3/10 | Engine management control unit | 10H |
| N3/10 | Engine management control unit | 24E |
| N3/9 | Engine management control unit | 10H |
| N3/9 | Engine management control unit | 24E |

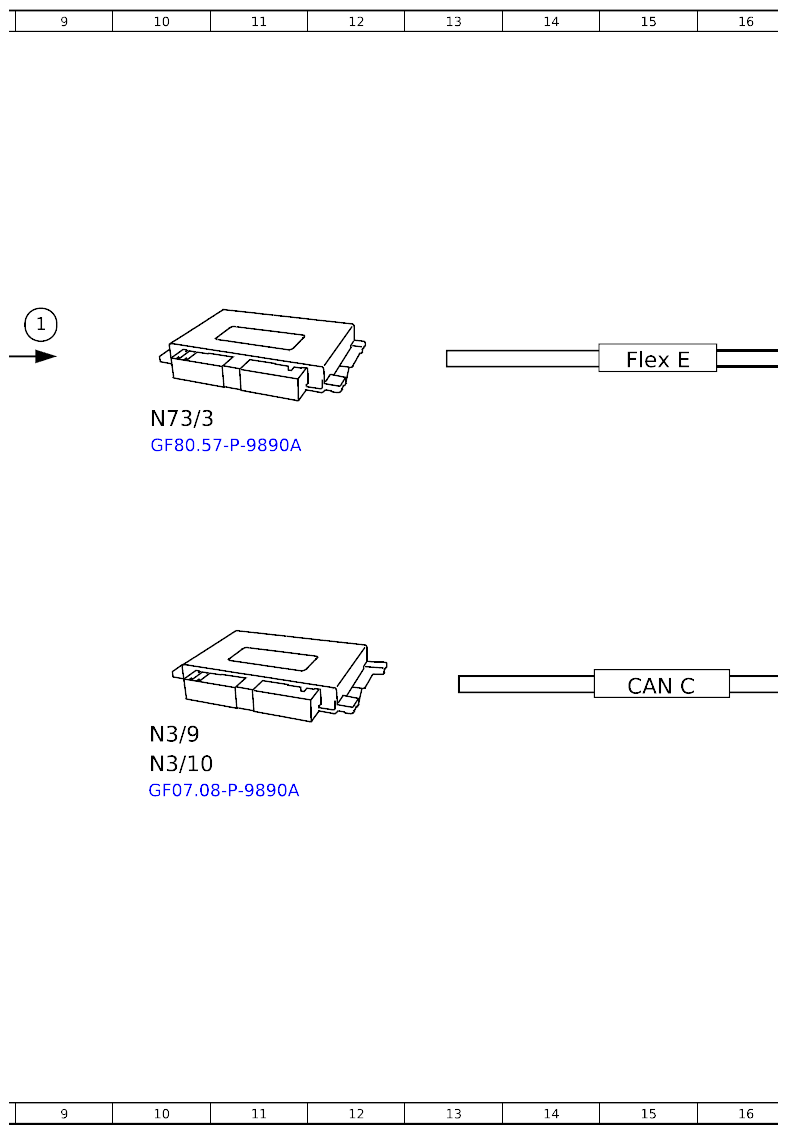

| N73/3 | Electronic ignition switch control unit | 25H |
| N73/3 | Electronic ignition switch control unit | 10E |
