Check Charging Cable And Vehicle Socket - AP54.10-P-5458J
Model 223
with code ME10 (Hybrid vehicle (plug-in, PHEV))

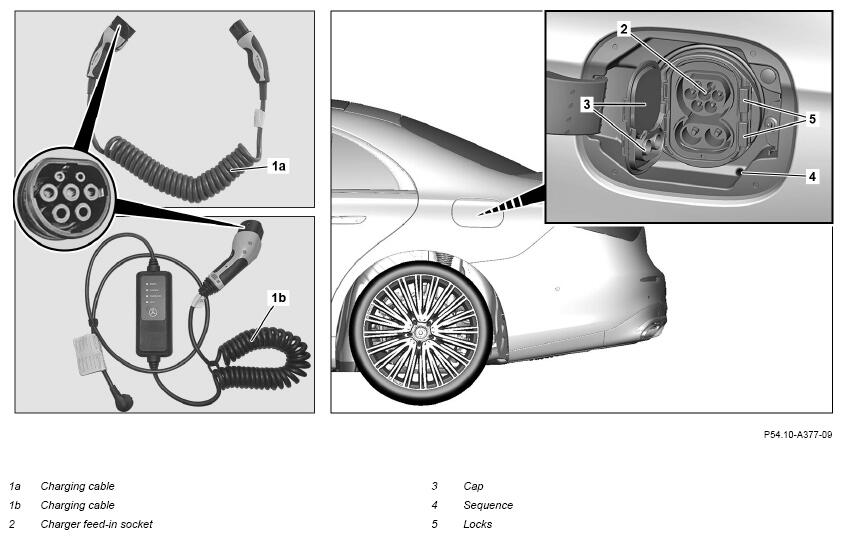

Shown on model 223.068 with code 63B (Vehicle socket xEV charging socket Combo 2/type 2)

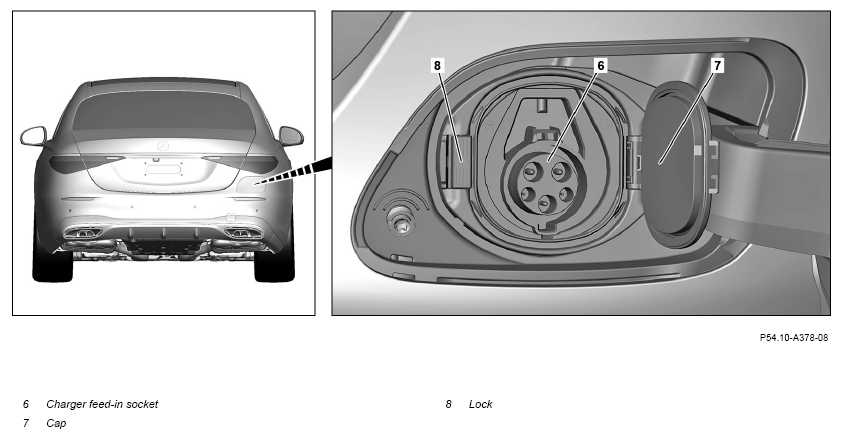

Shown on model 223.169 with code 64B (Vehicle socket xEV charging socket Chademo/type 1)
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||
| 1 | Take charging cables (1a) and (1b) out of the vehicle. | ||
| Check | |||
| 2 | Check entire length of charging cable (1a), plugs and switches for cracks, kinks, bites, cuts, crushed areas, chafe marks and other damage. | If problems are determined, ↓ replace charging cable (1a). |
|
| 3 | Check entire length of charging cable (1b), plugs and switches for cracks, kinks, bites, cuts, crushed areas, chafe marks and other damage. | If problems are determined, ↓ replace charging cable (1b). |
|
| Install | |||
| 4 | Place charging cables (1a) and (1b) in vehicle. | ||
| Check | |||
| 5 | Check charger feed socket (2) for damage. | If problems are determined, ↓ Replace charger feed socket (2). |
|
| 6 | Check that caps (3) are firmly seated on charger feed-in socket (2). | If problems are determined, ↓ Replace charger feed socket (2). |
|
| 7 | Check locks (5) by opening and closing caps (3). | If problems are determined, ↓ Replace charger feed socket (2). |
|
| 8 | Check drain (4) for clear passage and soiling. | This is because water must not collect in the charger feed socket (2) area. If problems are determined, ↓ rectify the problems. |
|
| 9 | Check charger feed socket (6) for damage. | Model 223 with code 498 (Japanese version) with code ME10 (Hybrid vehicle (plug-in, PHEV)) If problems are determined, ↓ Replace charger feed socket (6). |
|
| 10 | Check that cap (7) is firmly seated on charger feed socket (6). | Model 223 with code 498 (Japanese version) with code ME10 (Hybrid vehicle (plug-in, PHEV)) If problems are determined, ↓ Replace charger feed socket (6). |
|
| 11 | Check lock (8) by opening and closing cap (7). | Model 223 with code 498 (Japanese version) with code ME10 (Hybrid vehicle (plug-in, PHEV)) If problems are determined, ↓ Replace charger feed socket (6). |
