Remove/Install Parking System Speaker - AR54.65-P-0034S

Model 223

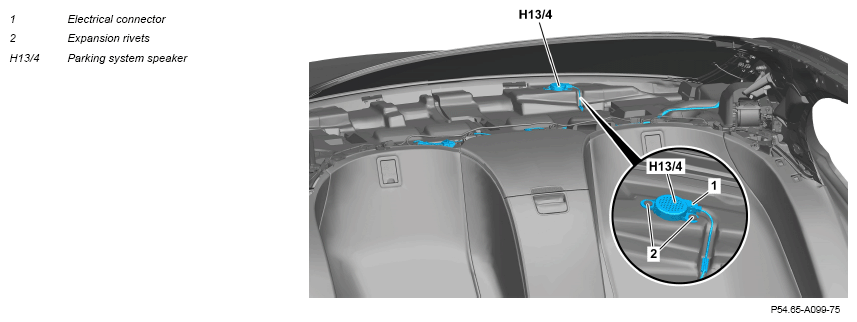

Shown except code (Z07 B7 armoring for special protection version)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove rear shelf.	Model 223 with code Z07 (B7 armoring on special protection version)	AR68.30-P-4581SG
		Model 223 except code Z07 (B7 armoring on special protection version)	AR68.30-P-4581S
2	Release and disconnect electrical connector (1) from parking system speaker (H13/4).
3	Unclip expansion rivet (2) and remove parking system speaker (H13/4).	Dismantling tool	Fig 1
4	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
