Remove/Install Park Pawl Capacitor - AR54.10-P-1126S
Model 223
except code B01 (48V technology)
except code ME10 (Hybrid vehicle (plug-in, PHEV))
Shown with code 503 (Remote-controlled parking)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line of 12 V on-board electrical system battery. | Model 223 with code 200 (Conditionally automated driving) except code B01 (48V technology) except code ME10 (Hybrid vehicle (plug-in, PHEV)) Model 223 with code 503 (Remote-controlled parking) except code B01 (48V technology) except code ME10 (Hybrid vehicle (plug-in, PHEV)) |
|
| AR54.10-P-0051S | |||
| 2 | Remove right trim in trunk. | Model 223 with code Z07 (B7 armoring on special protection version) except code B01 (48V technology) except code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR68.30-P-4800SG |
| Model 223 except code B01 (48V technology) except code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4800S | ||
| 3 | Remove rear fuse and relay module (F152/2) and place to one side with lines attached. | AR54.15-P-0001S | |
| 4 | Unclip fuse and relay module for conditionally automated driving (F152/8) and place to one side with connected lines. | Model 223 with code 200 (Conditionally automated driving) except code B01 (48V technology) except code ME10 (Hybrid vehicle (plug-in, PHEV)) Model 223 with code 503 (Remote-controlled parking) except code B01 (48V technology) except code ME10 (Hybrid vehicle (plug-in, PHEV)) |
|

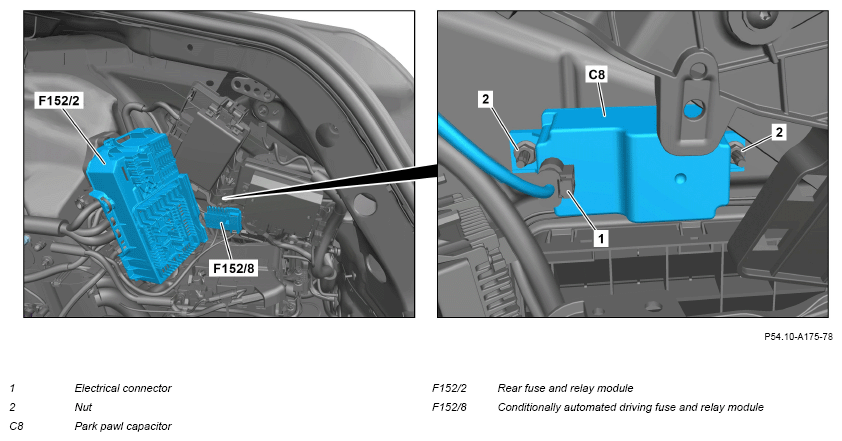

| 5 | Release and disconnect electrical connector (1) from park pawl capacitor (C8). | ||
| 6 | Remove nuts (2). | ||
| 7 | Remove park pawl capacitor (C8). | ||
| 8 | Install in the reverse order. |
