Wiring Diagram For Reversible Emergency Tensioning Retractor - PE91.40-S-2200-97VVB
Model 447.6
with code JP1 (PRE-SAFE)
except code M8E (Electric motor 85 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code XM0 (Facelift)
except code XM7 (MOPF II)
except code ZL3 (National version for Latin America)
A76, A76/1
Model 447.7
with code JP1 (PRE-SAFE)
except code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code ME4 (Electric motor 145 kW)
except code XM0 (Facelift)
except code XM7 (MOPF II)
except code ZL3 (National version for Latin America)
A76, A76/1
| Code: | Designation: | Position: |
|---|---|---|

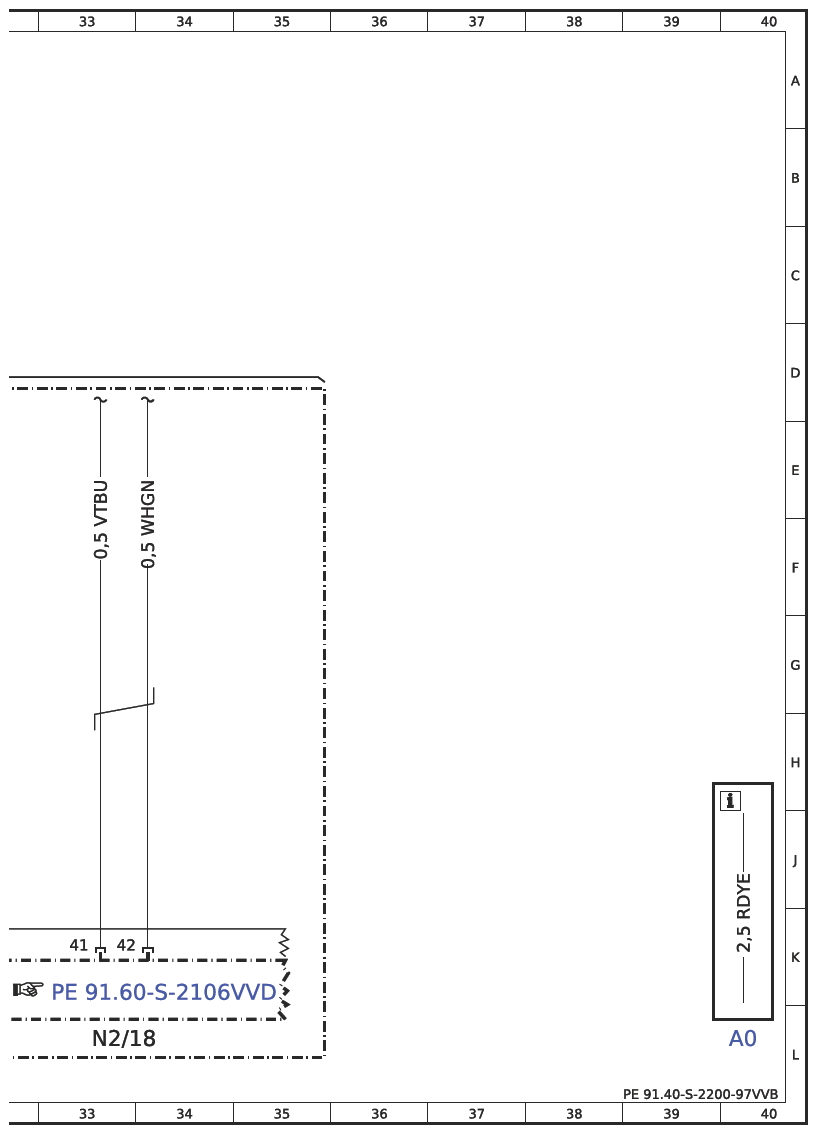

| A0 | Color code key | 40L |

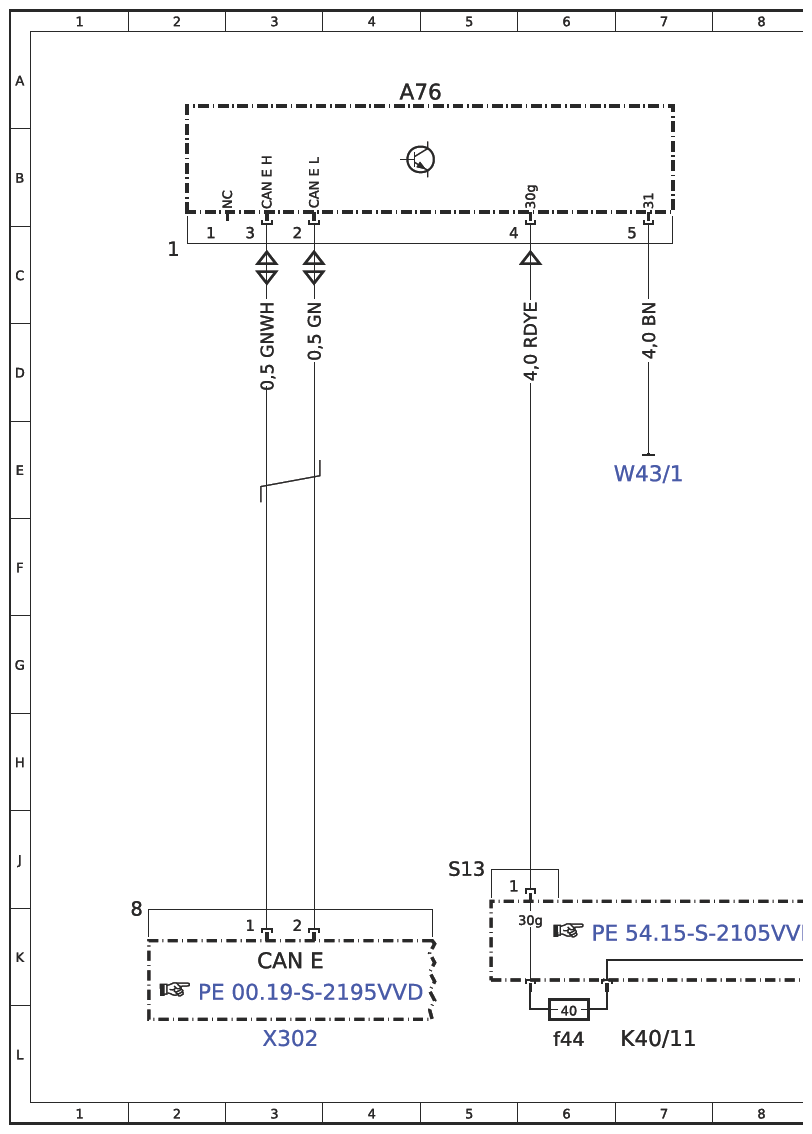

| A76 | Left front reversible emergency tensioning retractor | 4A |

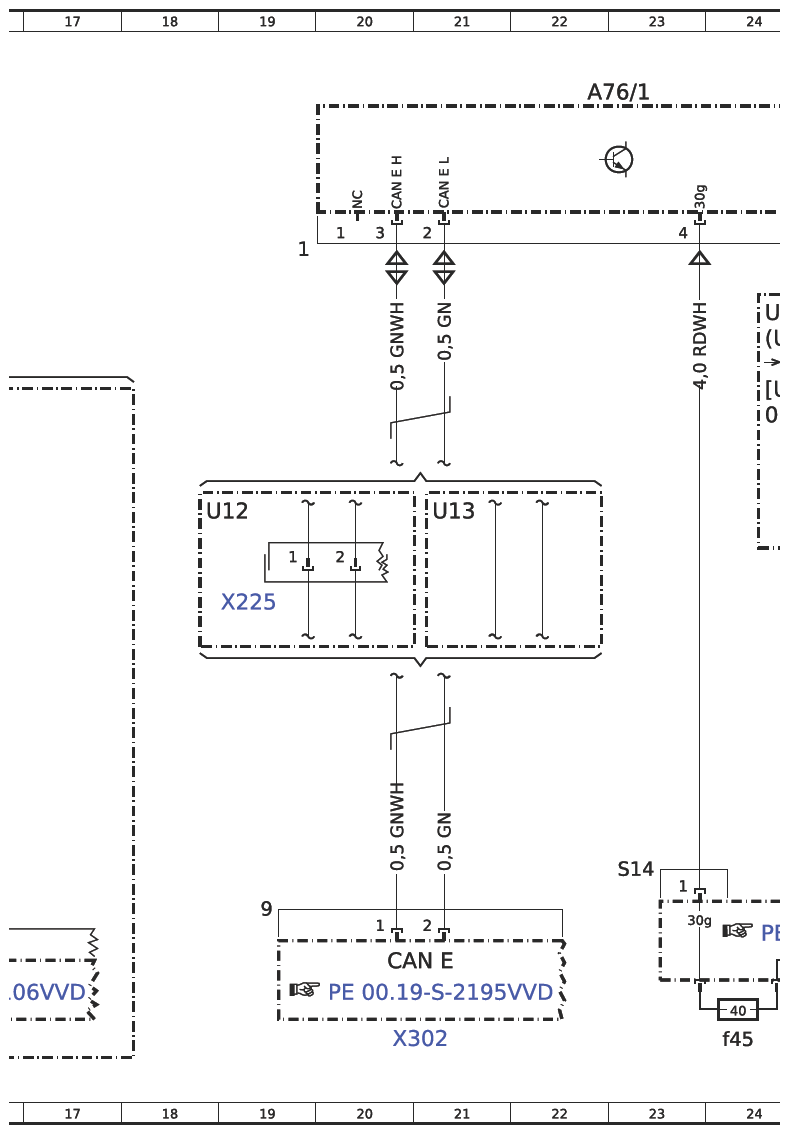

| A76/1 | Right front reversible emergency tensioning retractor | 22A |
| CAN E | Chassis CAN | 3K |
| CAN E | Chassis CAN | 20K |
| K40/11 | Firewall fuse and relay module | 7L |
| K40/11 | Firewall fuse and relay module | 25L |
| K40/11f44 | Fuse 44 | 6L |
| K40/11f45 | Fuse 45 | 24L |
| N2/18 | Supplemental restraint system (SRS) control unit | 11L |
| N2/18 | Supplemental restraint system (SRS) control unit | 15L |
| N2/18 | Supplemental restraint system (SRS) control unit | 29L |
| N2/18 | Supplemental restraint system (SRS) control unit | 33L |

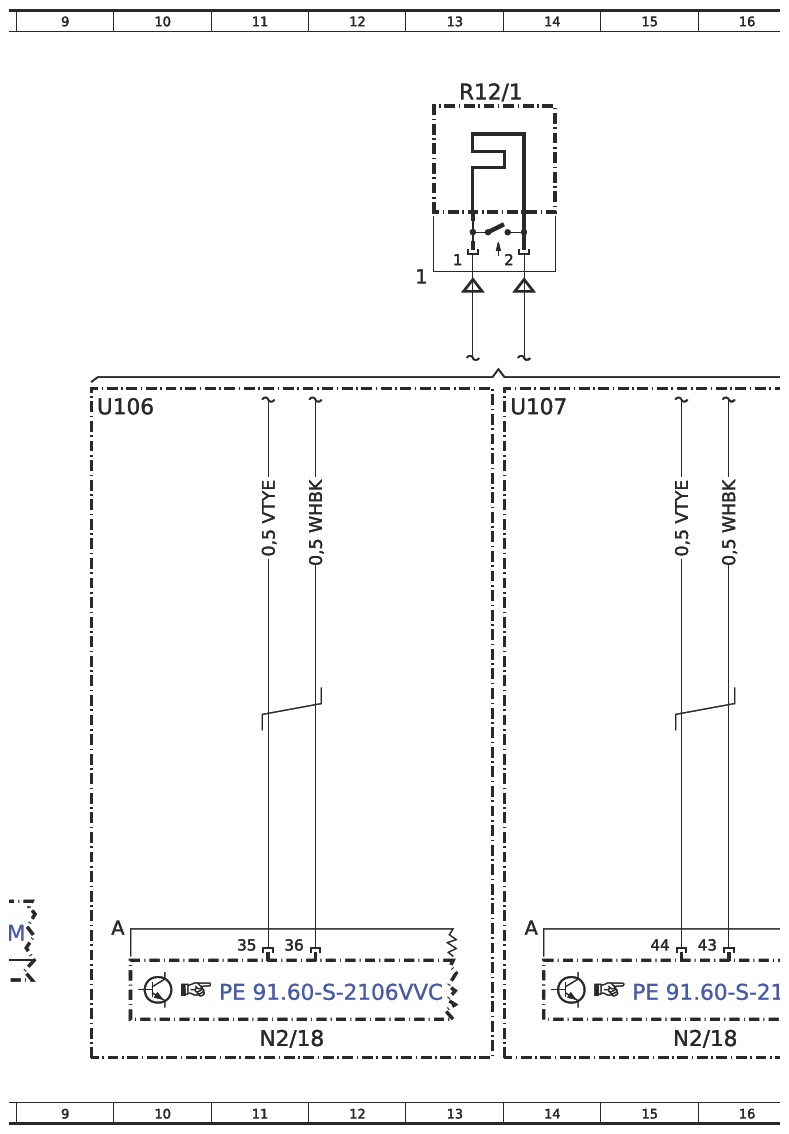

| R12/1 | Driver ETR [GUS] squib | 13A |

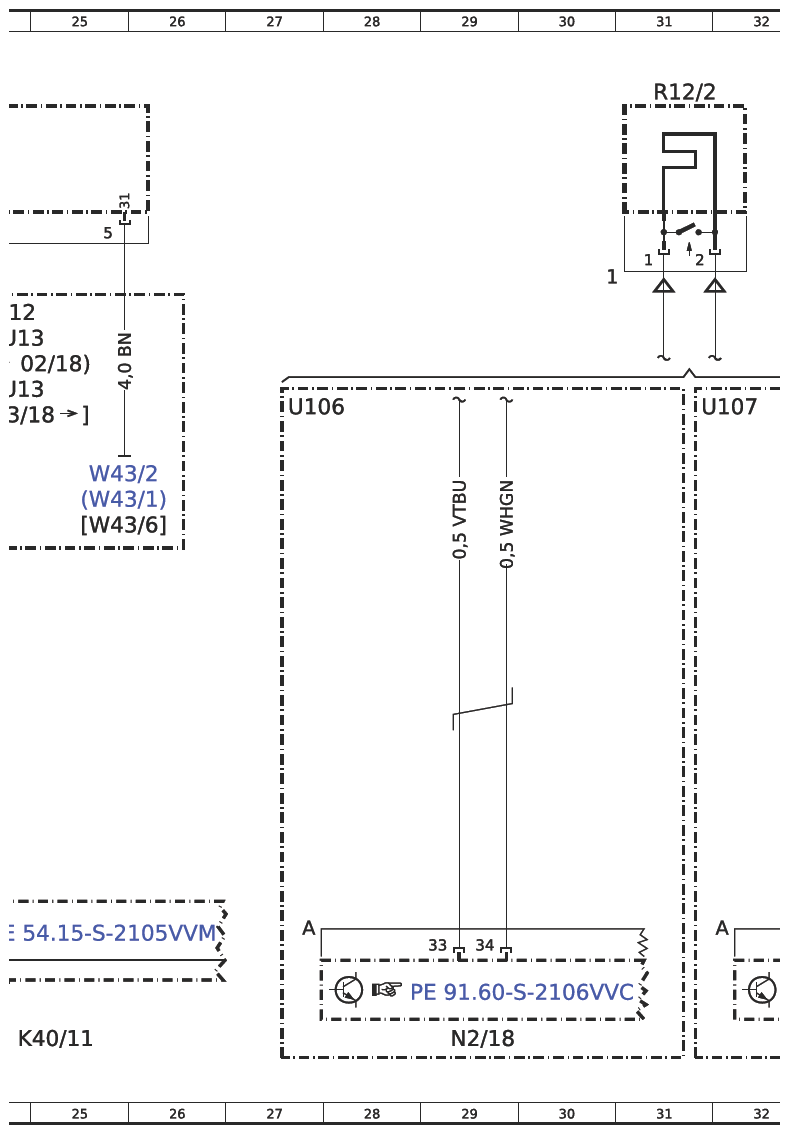

| R12/2 | Front passenger ETR [GUS] squib | 31A |
| U106 | Valid for HIGHLINE airbag | 9D |
| U106 | Valid for HIGHLINE airbag | 27D |
| U107 | Valid for LOWLINE airbag | 14D |
| U107 | Valid for LOWLINE airbag | 31D |
| U12 | Valid for left-hand drive vehicles | 18E |
| U12 | Valid for left-hand drive vehicles | 24C |
| U13 | Valid for right-hand drive vehicles | 21E |
| U13 | Valid for right-hand drive vehicles | 24D |
| W43/1 | Left vehicle interior firewall ground point | 7E |
| W43/1 | Left vehicle interior firewall ground point | 25E |
| W43/2 | Right vehicle interior firewall ground point | 25E |
| X225 | Main wiring harness/firewall main wiring harness 1 electrical connector | 19F |
| X302 | Chassis CAN (CAN E) potential distributor electrical connector | 3L |
| X302 | Chassis CAN (CAN E) potential distributor electrical connector | 20L |
