Position Of Front Passenger Airbag Electrical Connectors Changed - BT91.60-S-0002-01EF
Model 447.6##/7## #E as of 830446
with code ZL3 (National version for Latin America)
Model 447.6##/7## 13 as of 404114
except code ZU7 (National version for Canada)
except code ZU8 (National version for USA)
Model 447.6##/7## 13 as of 482652
with code ZU7 (National version for Canada)
Model 447.6##/7## 13 as of 482652
with code ZU8 (National version for USA)

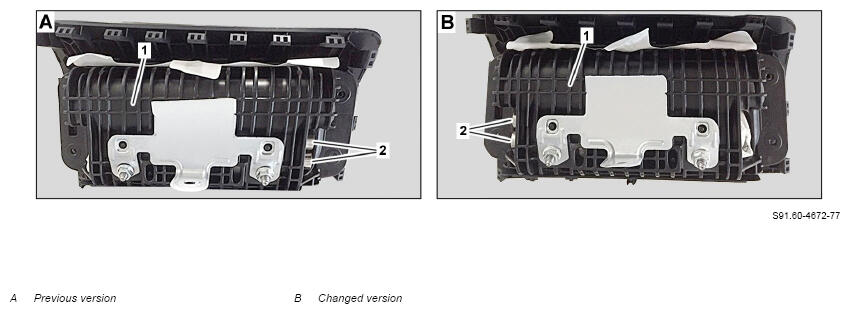

Model 447.6/7 except code ZU7 (Canada national version) and except code ZU8 (U.S.A. national version)
The gas generator installation location has been changed The associated electrical connectors and squibs (2) are now located on the left side of the front passenger airbag (1)
Only the modified design of the front passenger airbag (1) is available as a replacement part.

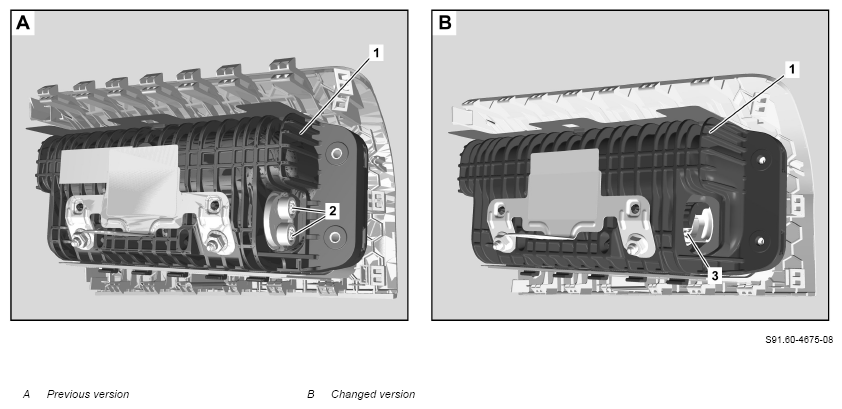

Model 447.6/7 with code ZU7 (Canada national version) or with code ZU8 (U.S.A. national version)
The installation locations of the gas generator and the active bleed valve (3) have been swapped. The electrical connectors and squibs (2) are now located on the left side of the front passenger airbag (1). The active bleed valve (3) and the associated electrical connectors are now located on the right side of the front passenger airbag (1).
Only the modified design of the front passenger airbag (1) is available as a replacement part.
