Route Subharness For Front Passenger Airbag - AR91.60-S-0685-01EH

Model 447.6##/7## 13 as of 443369 up to 482651

with code ZU7 (National version for Canada)

Model 447.6##/7## 13 as of 443369 up to 482651

with code ZU8 (National version for USA)

Courtesy of MERCEDES-BENZ USA

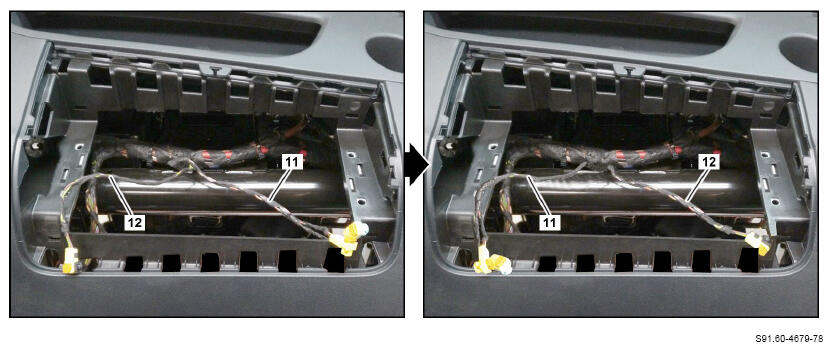

1. Route subharness of squibs 1 and 2 (11), as shown, from right to left.
2. Route bleed valve squib subharness (12), as shown, from left to right.
