Route Subharness For Front Passenger Airbag - AR91.60-S-0685-01EG

Model 447.6##/7## 13 up to 443368

with code ZU7 (National version for Canada)

Model 447.6##/7## 13 up to 443368

with code ZU8 (National version for USA)

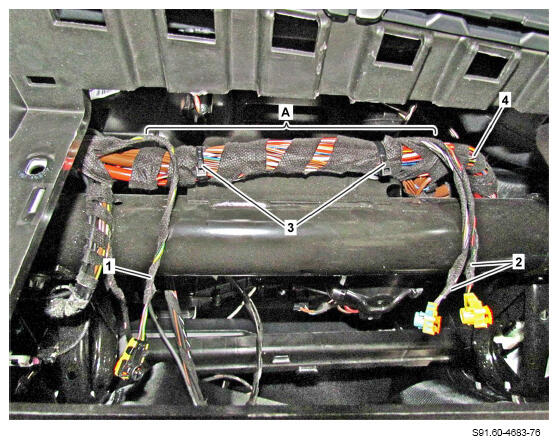

1. Remove cable ties (3).

   Carefully cut through cable ties (3). Otherwise the electric lines may be damaged.

   The number of cable ties (3) can vary.

2. Cut through and remove fabric tape on main wiring harness (4) in area (A).

   Carefully cut through fabric tape. Otherwise the electric lines may be damaged.

3. Loosen exposed subharnesses for squibs 1 and 2 (2) and subharness for bleed valve squib (1) from main wiring harness (4).

   Courtesy of MERCEDES-BENZ USA

   The subharness for the bleed valve squib (1) must be extended for the routing described below.

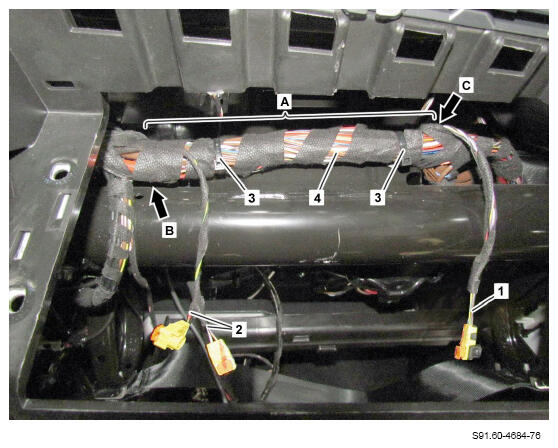

4. Route subharnesses for squibs 1 and 2 (2), as shown, from right to left.
5. Route subharness for bleed valve squib (1), as shown, from left to right.
6. Fix subharnesses for squibs 1 and 2 (2) in place with new fabric tape on main wiring harness (4) (arrow B).
7. Fix subharness for bleed valve squib (1) with new fabric tape on main wiring harness (4) (arrow C).
8. Wrap main wiring harness (4) in area (A) with new fabric tape.

   Courtesy of MERCEDES-BENZ USA

9. Fasten main wiring harness (4) to crossmember of instrument panel using new cable ties (3).

   The number of cable ties (3) can vary.
