Route Subharness For Front Passenger Airbag - AR91.60-S-0685-01EF

Model 447.6##/7## #E up to 830445

with code ZL3 (National version for Latin America)

Model 447.6##/7## 13 up to 404113

except code ZU7 (National version for Canada)

except code ZU8 (National version for USA)

Courtesy of MERCEDES-BENZ USA

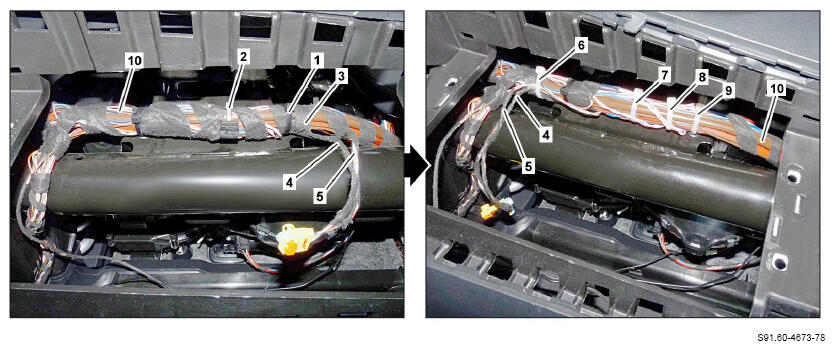

1. Remove cable ties (1, 2).

   Carefully sever cable ties (1, 2). Otherwise the electric lines may be damaged.

   The number of cable ties (1, 2) may vary.

2. Cut through fabric tape (3) on main wiring harness (10) and expose subharnesses (4, 5).

   Cut through fabric tape (3) carefully. Otherwise the electric lines may be damaged.

3. Route subharnesses (4, 5), as shown, on the right side.
4. Wrap subharnesses (4, 5) and the main wiring harness (10) with new fabric tape (3).
5. Fasten main wiring harness (10) with new cable ties (6, 7, 8, 9) on crossmember of instrument panel.
