Wiring Diagram Of Drive Train CAN - PE00.19-S-2170-97VLA
Model 447.6
with Code ZL3 (National version for Latin America)
except Code M8E (Electric motor 85 kW/battery 60 kWh (usable))
except Code ME0 (Electric motor 85 kW)
except Code XM0 (Facelift)
except Code XM7 (MOPF II)
Potential distributor X306
Model 447.7
with Code ZL3 (National version for Latin America)
except Code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except Code ME0 (Electric motor 85 kW)
except Code ME4 (Electric motor 145 kW)
except Code XM0 (Facelift)
except Code XM7 (MOPF II)
Potential distributor X306
| Code : | Designation: | Position: |
|---|---|---|

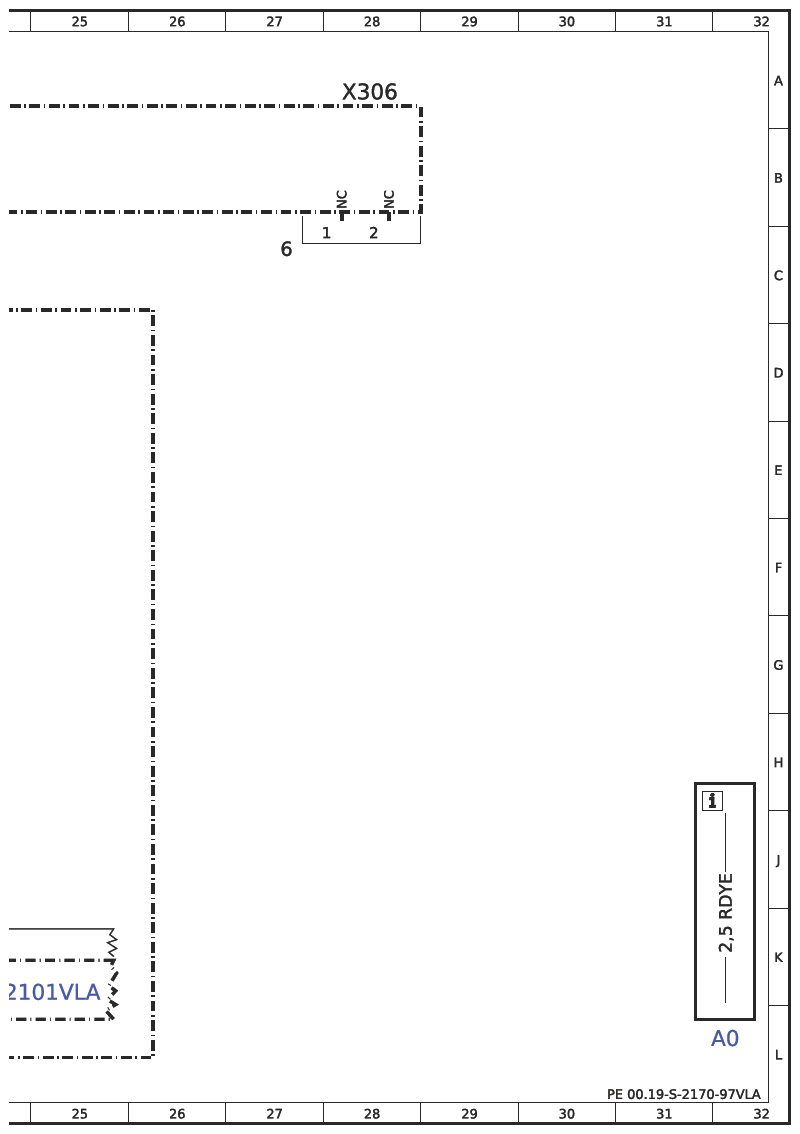

| A0 | Color Code key | 32L |

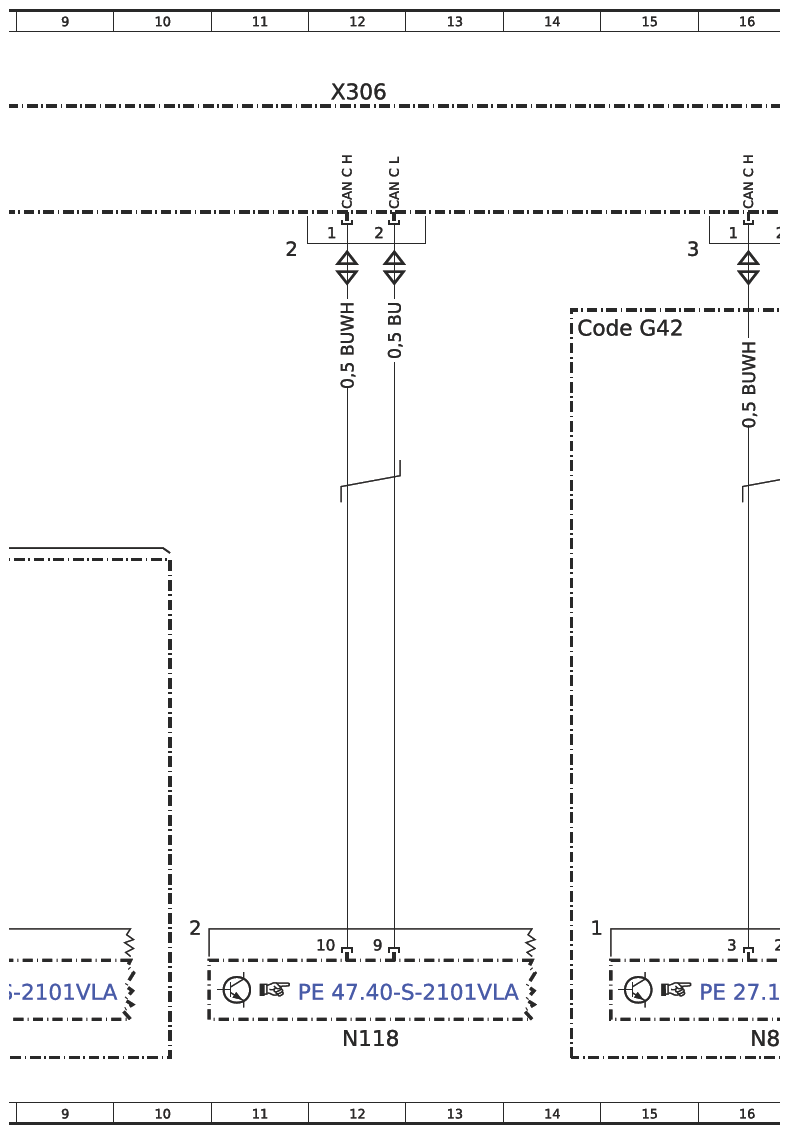

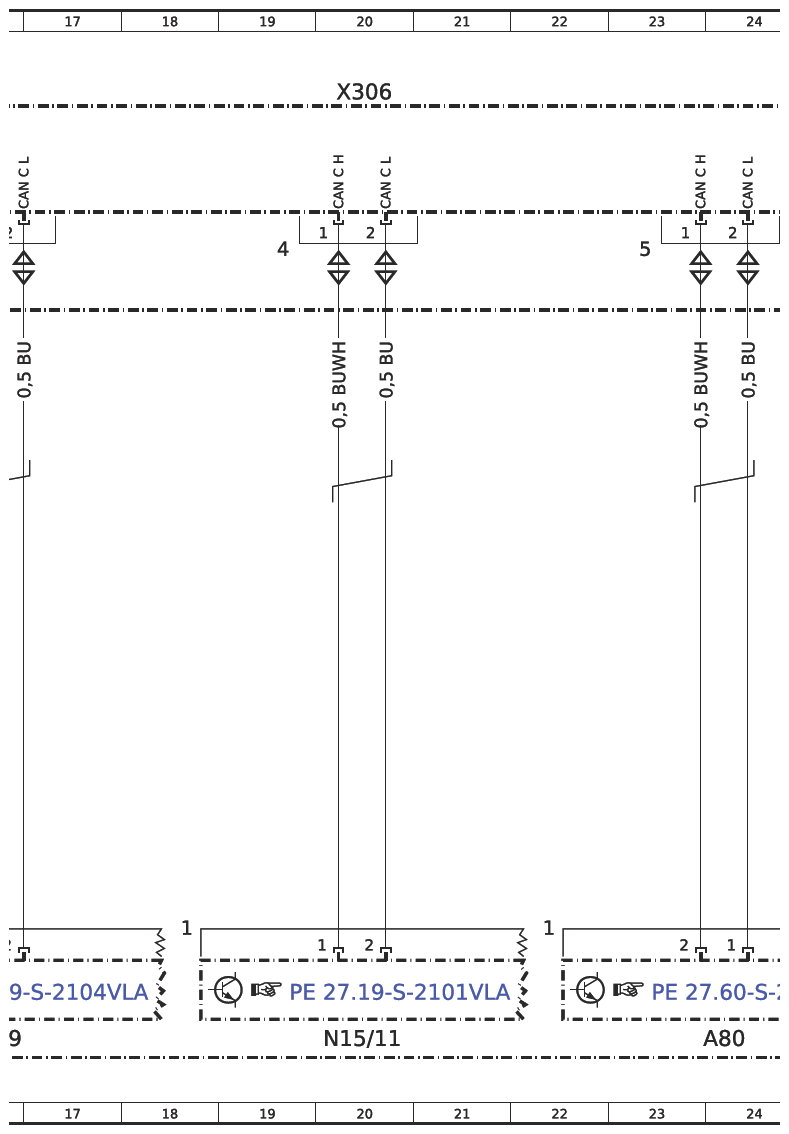

| A80 | Intelligent servo module (ISM) control unit for DIRECT SELECT | 24L |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 14D |
| N118 | Fuel system control unit (FSCU) | 12L |
| N15/11 | Fully integrated transmission control (VGS) electric controller unit | 20L |

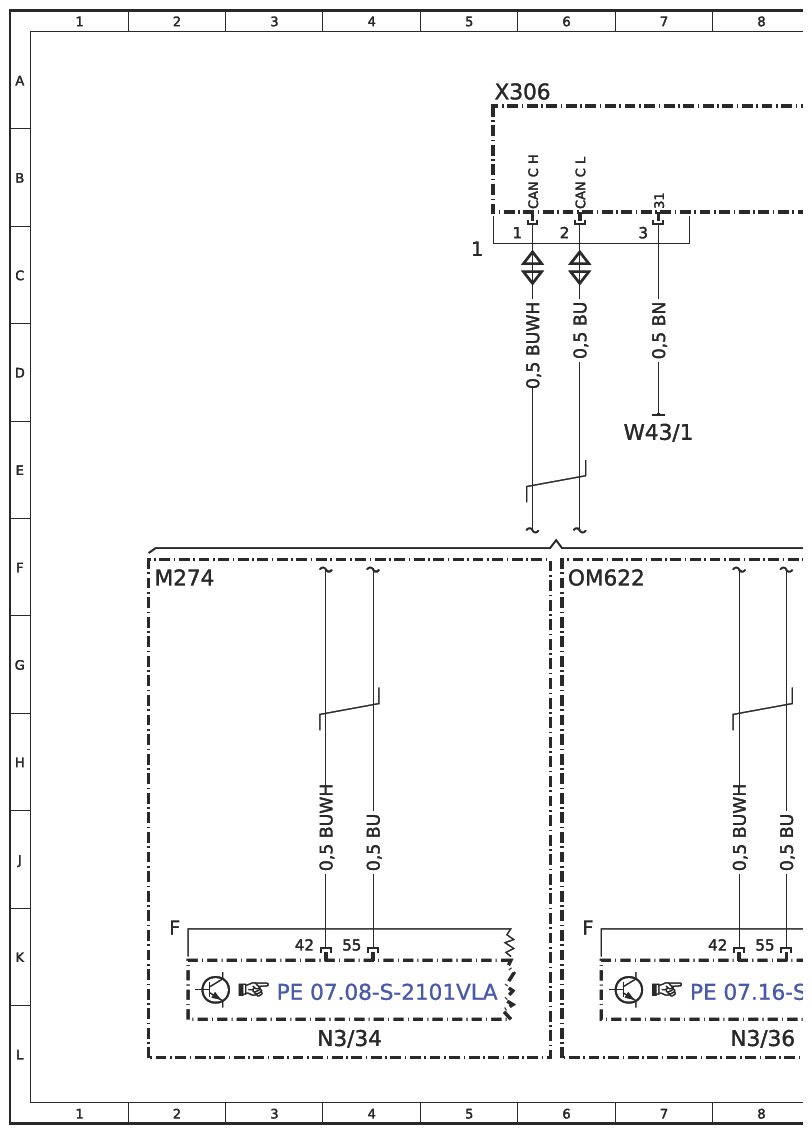

| N3/34 | ME-SFI [ME] control unit | 4L |
| N3/36 | CDI control unit | 8L |
| N89 | Transmission oil auxiliary oil pump control unit | 16L |
| W43/1 | Left vehicle interior firewall ground point | 7E |
| X306 | Drive train CAN (CAN C) potential distributor electrical connector | 5A |
| X306 | Drive train CAN (CAN C) potential distributor electrical connector | 12A |
| X306 | Drive train CAN (CAN C) potential distributor electrical connector | 20A |
| X306 | Drive train CAN (CAN C) potential distributor electrical connector | 28A |
