Wiring Diagram Of Chassis CAN - PE00.19-S-2195-97VLA
Model 447.6
with Code ZL3 (National version for Latin America)
except Code M8E (Electric motor 85 kW/battery 60 kWh (usable))
except Code ME0 (Electric motor 85 kW)
except Code XM0 (Facelift)
except Code XM7 (MOPF II)
Potential distributor X302, X30/28
Model 447.7
with Code ZL3 (National version for Latin America)
except Code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except Code ME0 (Electric motor 85 kW)
except Code ME4 (Electric motor 145 kW)
except Code XM0 (Facelift)
except Code XM7 (MOPF II)
Potential distributor X302, X30/28
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 56L |

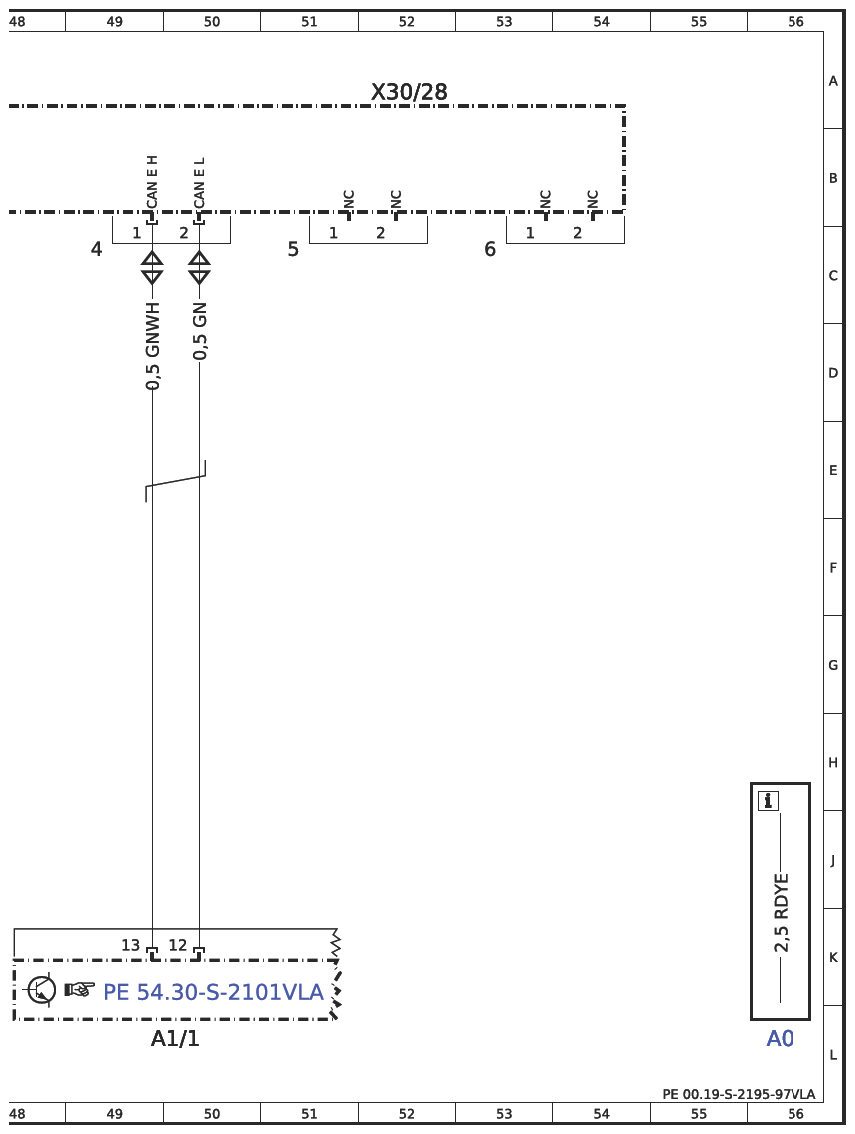

| A1/1 | Instrument cluster (KI) control unit | 50L |

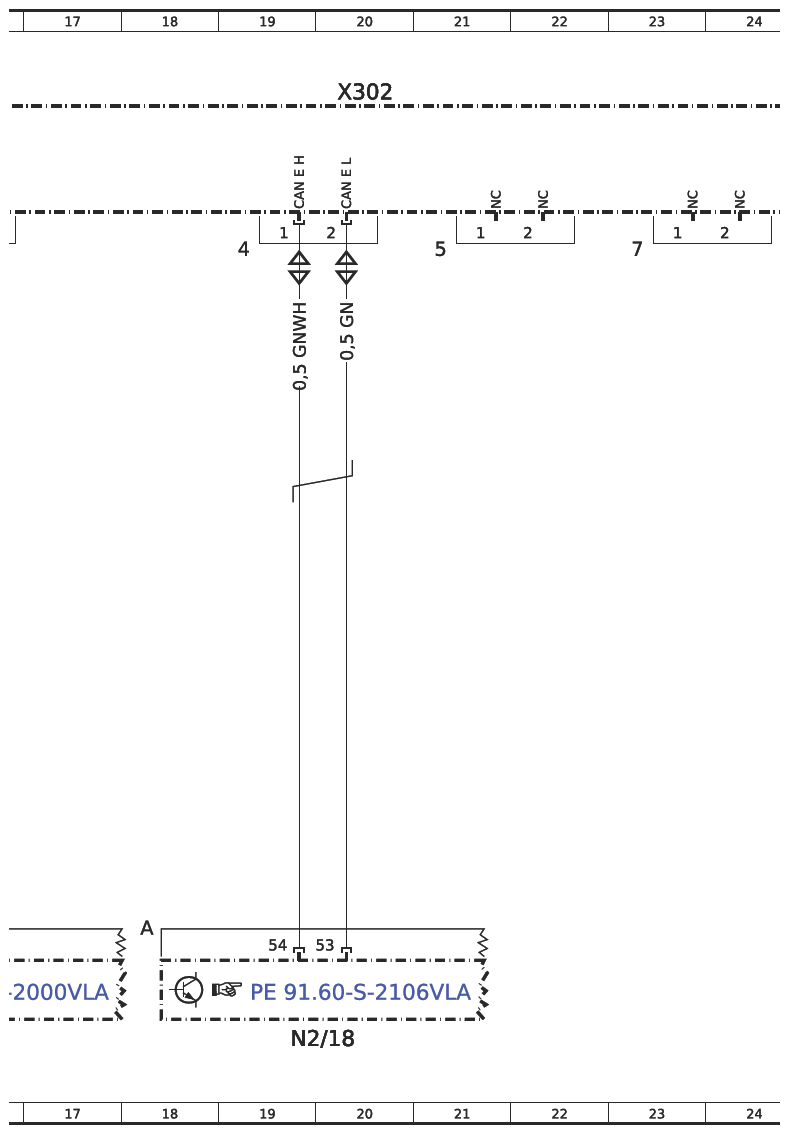

| N2/18 | Supplemental restraint system (SRS) control unit | 19L |

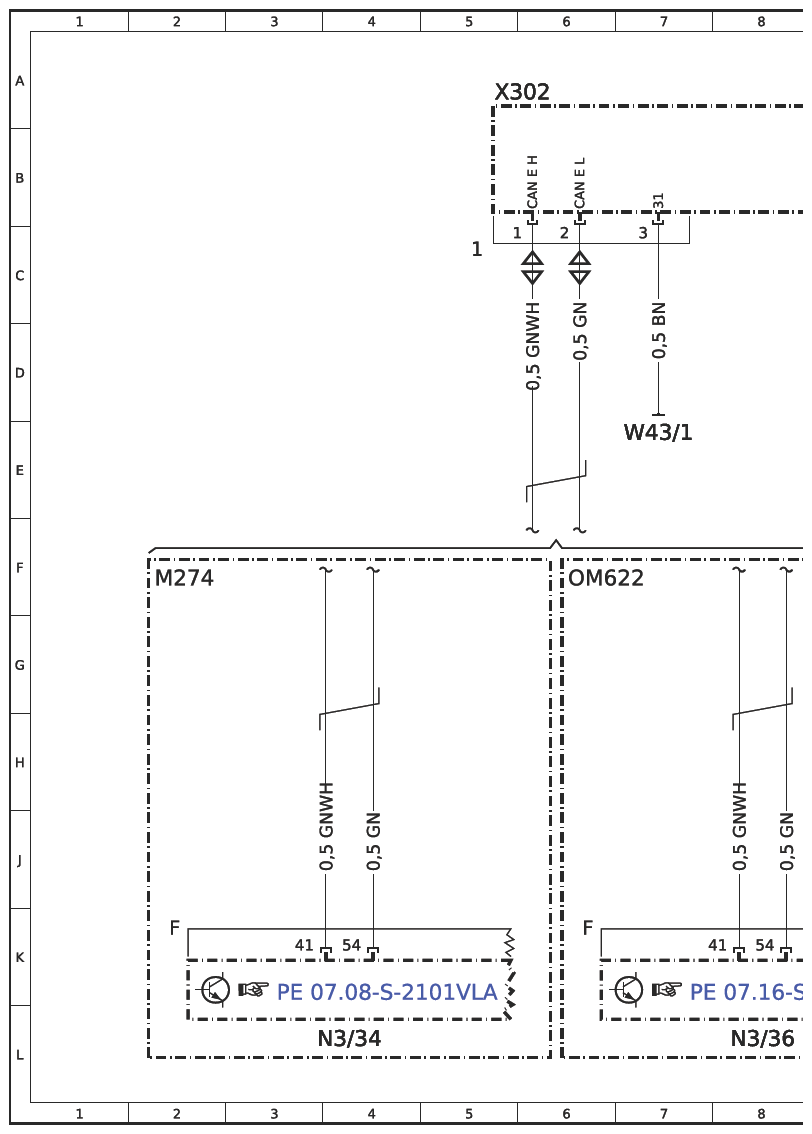

| N3/34 | ME-SFI [ME] control unit | 4L |
| N3/36 | CDI control unit | 8L |
| N30/4 | Electronic Stability Program (ESP) control unit | 16L |

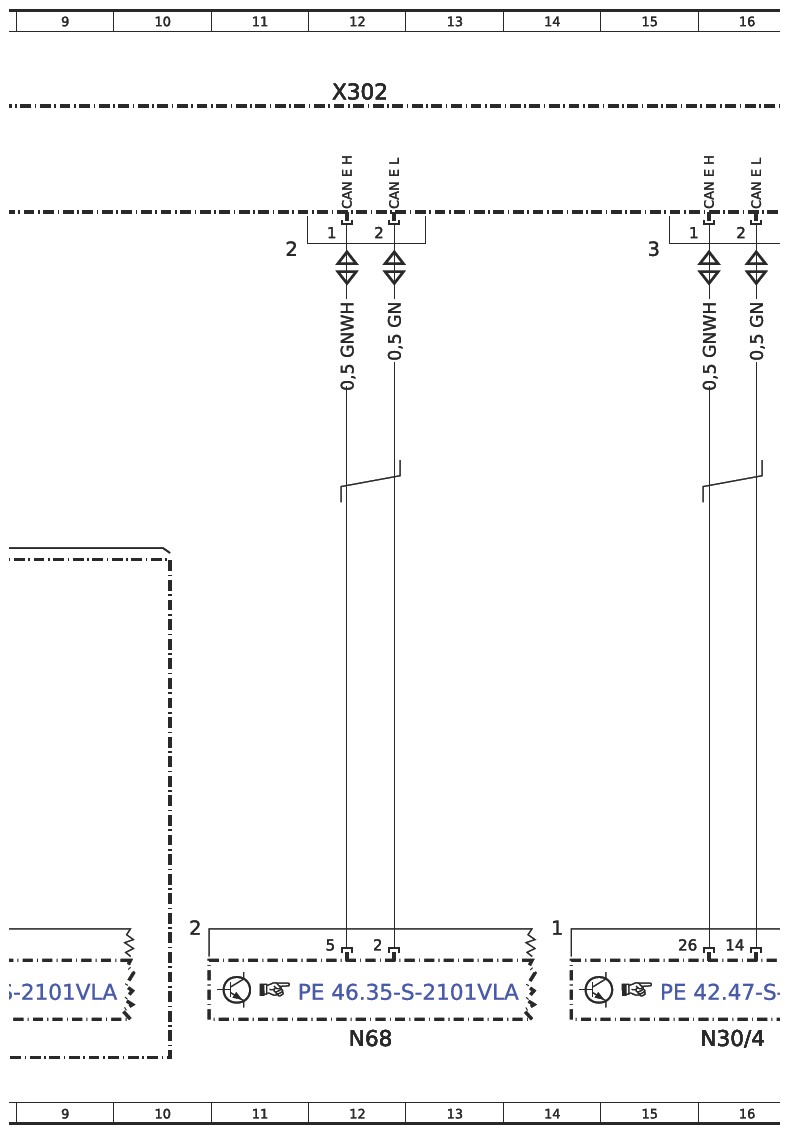

| N68 | Electrical power steering (ES) control unit | 12L |

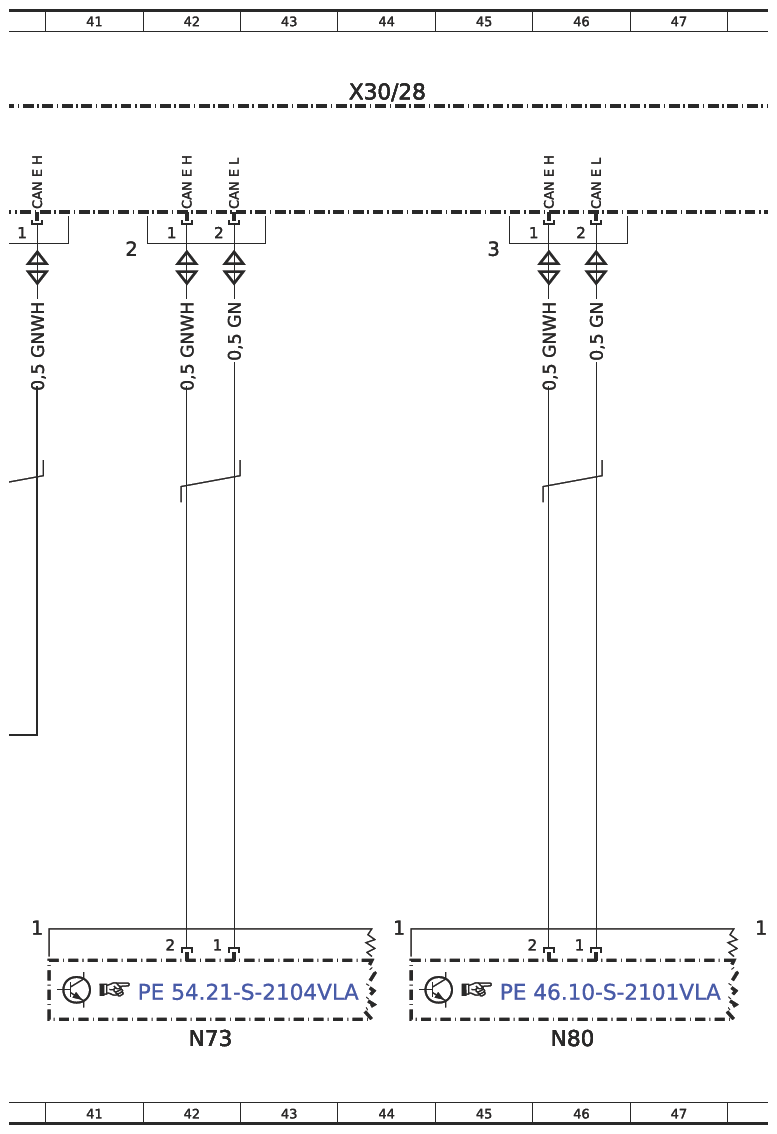

| N73 | Electronic ignition lock (EZS) control unit | 42L |
| N80 | Steering column tube module (MRM) control unit | 46L |
| W43/1 | Left vehicle interior firewall ground point | 7E |

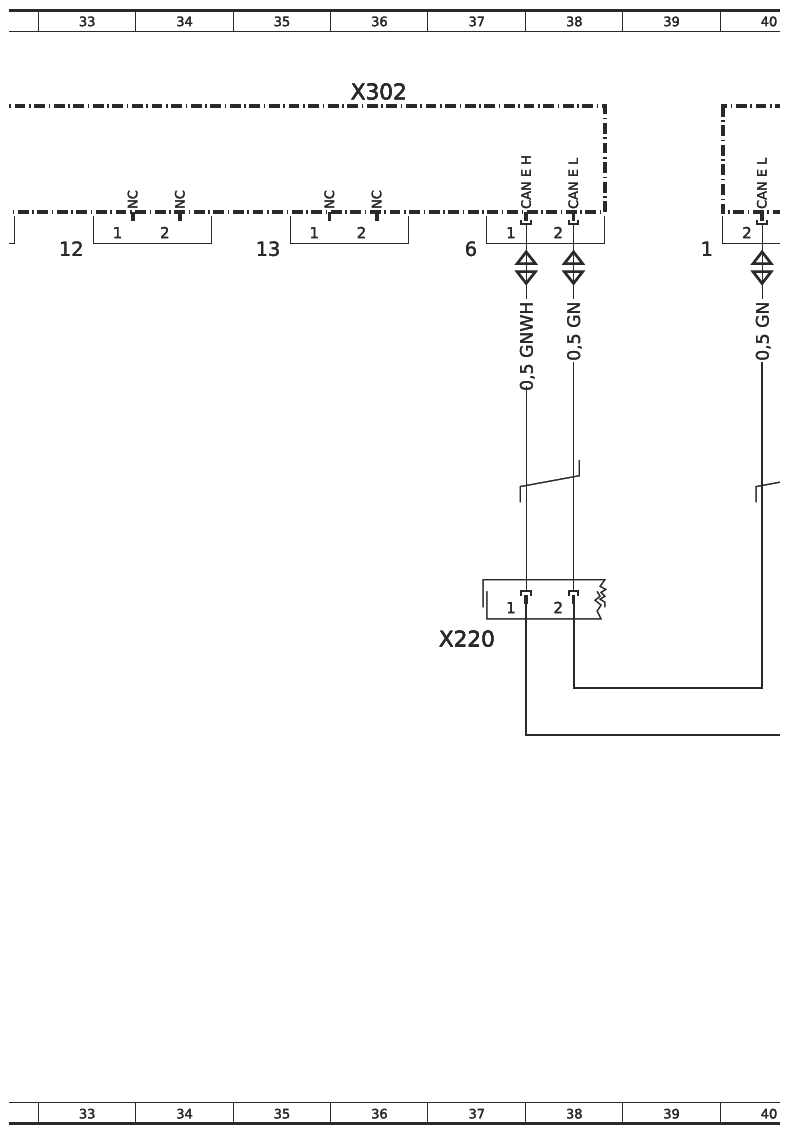

| X220 | Left main wiring harness/cockpit wiring harness electrical connector 1 | 37G |
| X30/28 | Chassis CAN (CAN E) potential distributor electrical connector | 44A |
| X30/28 | Chassis CAN (CAN E) potential distributor electrical connector | 52A |
| X302 | Chassis CAN (CAN E) potential distributor electrical connector | 12A |
| X302 | Chassis CAN (CAN E) potential distributor electrical connector | 20A |

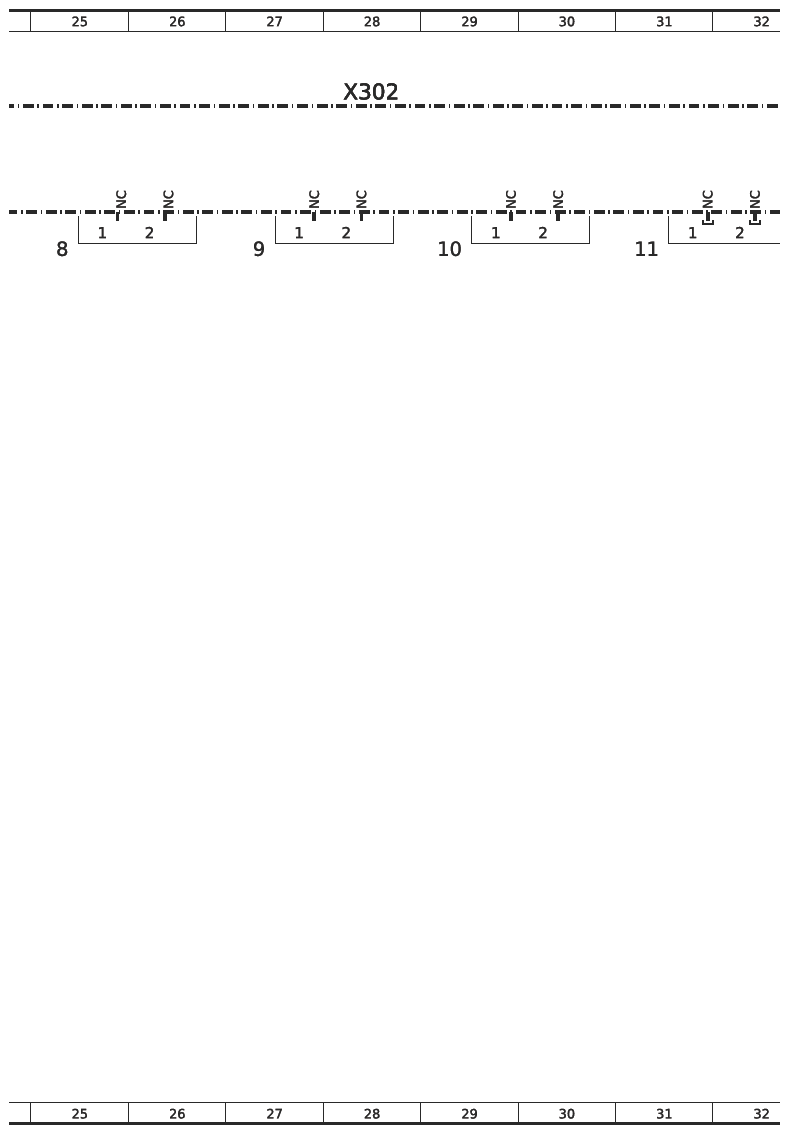

| X302 | Chassis CAN (CAN E) potential distributor electrical connector | 28A |
| X302 | Chassis CAN (CAN E) potential distributor electrical connector | 36A |
| X302 | Chassis CAN (CAN E) potential distributor electrical connector | 5A |
