Use Of Wiring Diagrams - OV00.01-S-1901-03VLA
Model 447.6
with code ZL3 (National version for Latin America)
except code M8E (Electric motor 85 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code XM0 (Facelift)
except code XM7 (MOPF II)
Model 447.7
with code ZL3 (National version for Latin America)
except code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code ME4 (Electric motor 145 kW)
except code XM0 (Facelift)
except code XM7 (MOPF II)
Wiring diagrams
- The wiring diagrams are assigned to the familiar function groups 00-91.
- The circuit diagrams are filed according to PE number in each function group, e.g.: PE07.16-S-2101VLA.
- Variants denoted by the abbreviation "U..." or "Code...", are listed in the legends. Explanations on the identification of variants with abbreviations such as, e.g. ESP are located in "Technical abbreviations for workshop literature" OI99.30-Z-4003TLF.
- The signal and circuit designations used are explained in the section
Abbreviations of signal and circuit designations for wiring diagrams OV00.01-S-1001-28VLA.
- Wire cross-sections may differ from the illustration in the wiring diagrams.
- The wiring diagrams are generated as function schematics, control unit diagrams or detailed function schematics and are structured as follows:
Function schematics
The control units and electrical components required for the function are shown as symbols. The functional connections are realized by direct lines or by the data bus.
Control unit diagrams
Control units that only fulfill one function, e.g. Parktronic, are shown complete with all connected components.
If control units fulfill several functions, e.g. ME-SFI [ME] control unit or SAM control unit, the control unit diagram includes a reference to a detailed function diagram. The abbreviations of the components are given in addition to this reference.
The relay wiring is also shown on the detailed function diagrams.
Detailed function diagrams
If components form an independent function as per the overview of the function groups (e.g. windshield wipers), the components are shown on a detailed function diagram.
The wiring diagrams also contain linkages of possible versions and functions.
Links are framed to identify them as variants and issued a brief designation/abbreviation.
Wiring diagram number
Function schematic
Wire Identification
Fuse blocks
Components and switches
| Line colors |
| BK = Black |
| BN = Brown |
| BU = Blue |
| GN = Green |
| GY = Gray |
| OG = Orange |
| PK = Pink |
| RD = Red |
| TR = Transparent |
| VT = Violet |
| WH = White |
| YE = Yellow |
Special features in WIS presentation
It is possible to select certain areas (red border) and consequently to switch to other documents or wiring diagrams.
- Selection of electrical connections -> Document: Location and assignment of line and connectors
- Selection of ground points -> Document: Location and assignment of ground points
- Selection of Z-connector sleeves -> Document: Location and assignment of Z-connector sleeves
- Selection of PE hands -> Reference to further wiring diagrams
- Selection of -> Document: Component designations Abbreviations of signal and circuit designations
- Selection of -> Document: Component designation "A0" Use of wiring diagrams with color code key
Location and assignment
- The tables of contents for the location and assignment of electrical connections, ground points and Z connector sleeves are:
Location and assignment of line and plug connectorsGF00.19-S-1000VVA
Location and assignment of ground pointsGF00.19-S-2000VVA
Location and assignment of Z connector sleeves GF00.19-S-3000VVA
The assignment of components can be obtained from the wiring diagrams specified in the list of contents.
CAN bus presentation

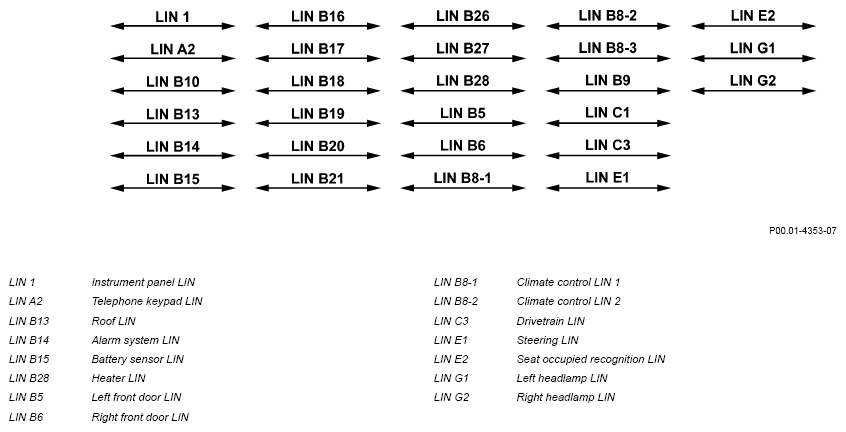

LIN bus presentation
MOST bus presentation
