Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-S-2101-97VLB
Engine 274 in model 447.7
with code ZL3 (National version for Latin America)
except code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code ME4 (Electric motor 145 kW)
except code XM0 (Facelift)
except code XM7 (MOPF II)
M connector

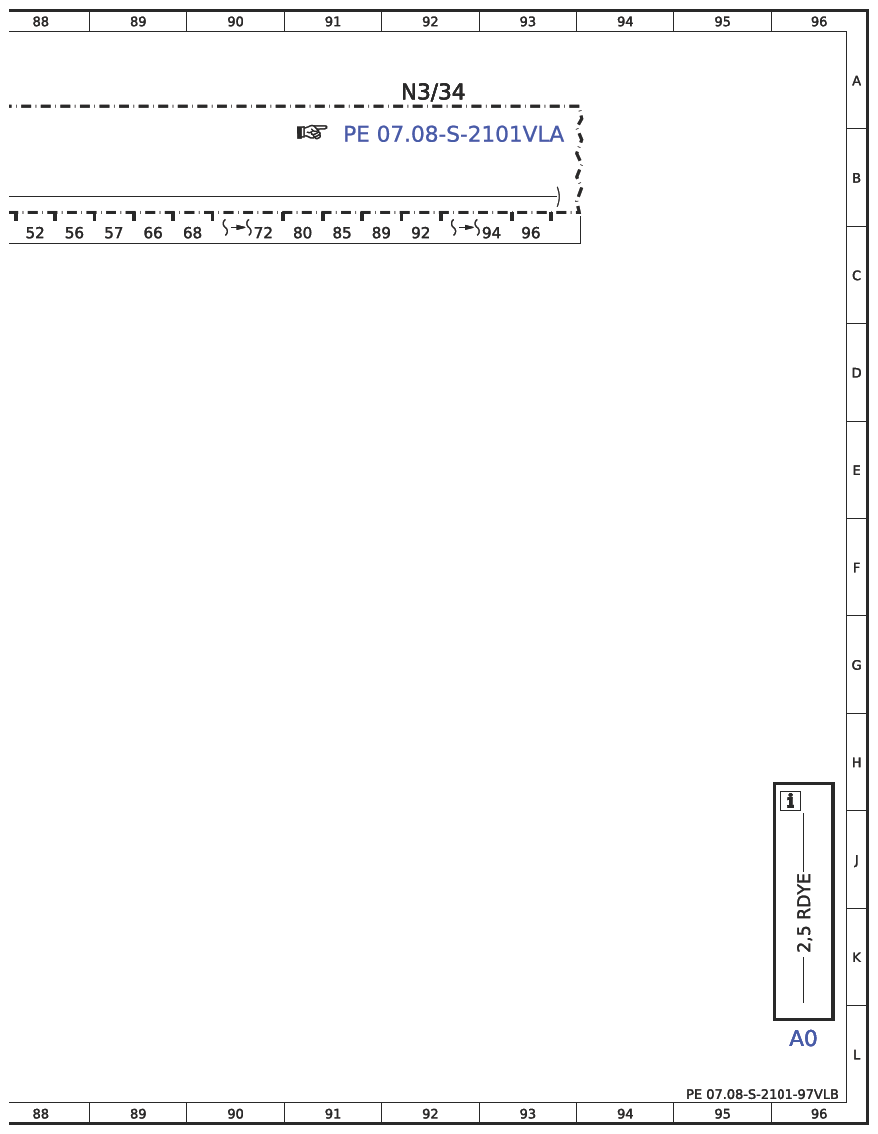

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |

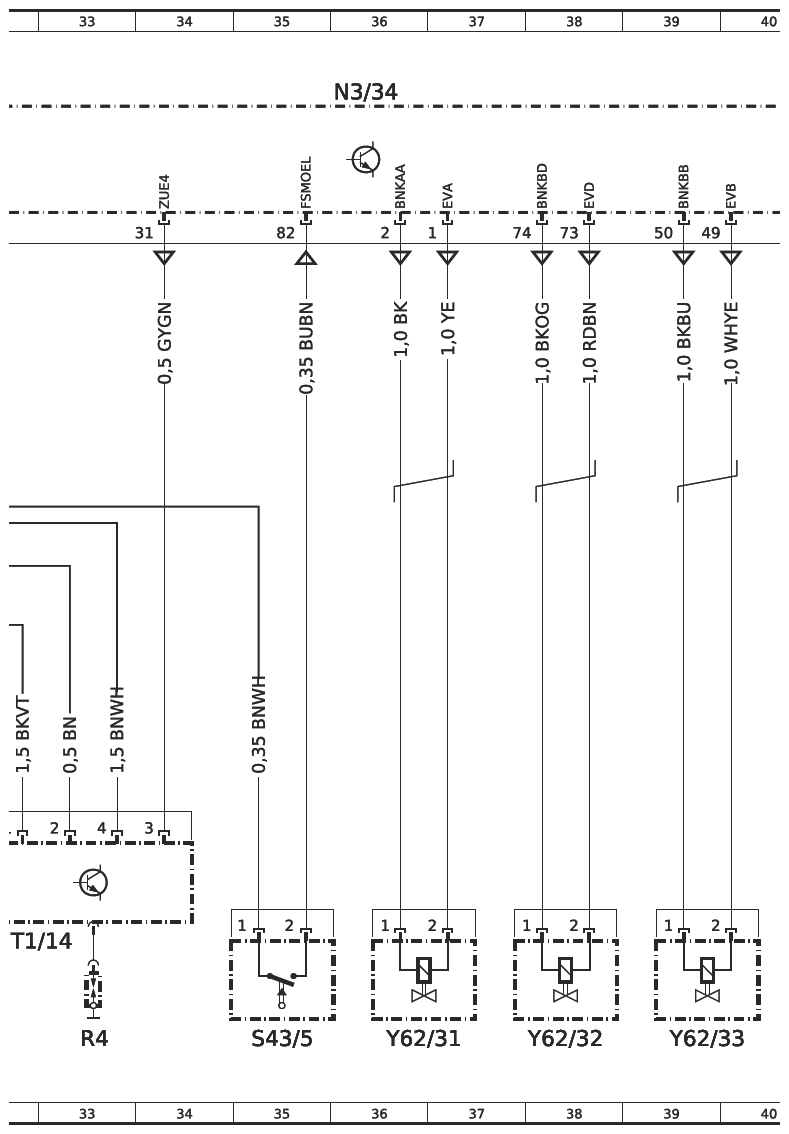

| A16/8 | Knock sensor 1 | 42L |
| A16/9 | Knock sensor 2 | 44L |
| B11/21 | Coolant temperature sensor | 6L |
| B157 | Full-load operation vent line heater element | 64L |
| B17 | Charge air temperature sensor upstream of throttle valve | 8L |
| B17/16 | Charge air temperature sensor downstream of throttle valve | 9L |
| B18/8 | Pressure sensor downstream of air filter | 4L |

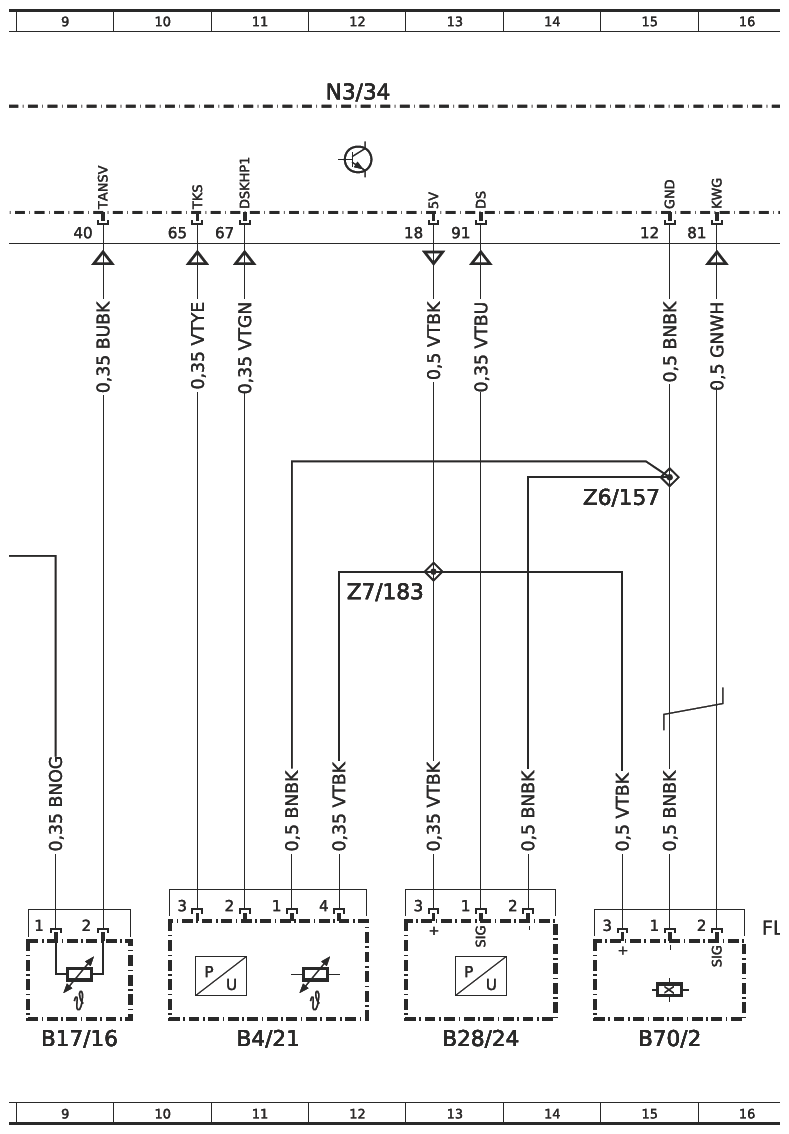

| B28/24 | Intake manifold pressure sensor | 13L |
| B4/21 | Fuel tank pressure and temperature sensor | 11L |

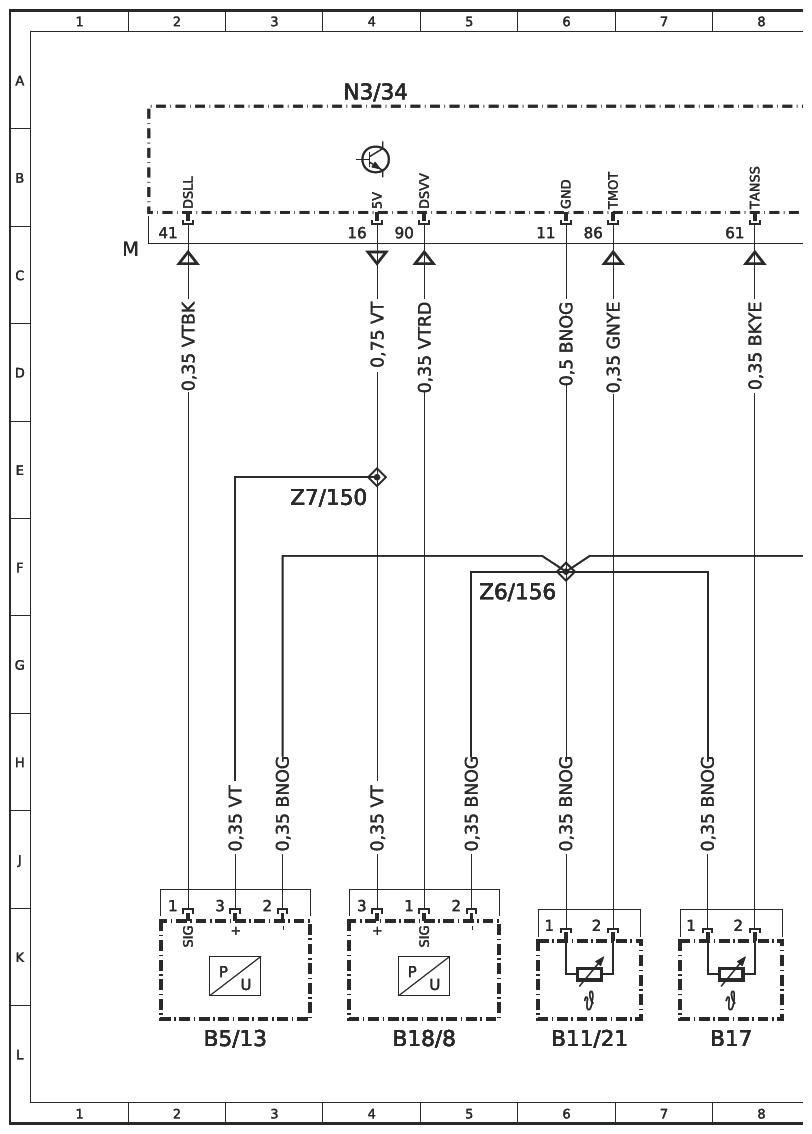

| B5/13 | Pressure sensor upstream of throttle valve | 2L |
| B6/29 | Intake camshaft Hall sensor | 54L |
| B6/30 | Exhaust camshaft Hall sensor | 52L |
| B70/2 | Crankshaft Hall sensor | 15L |

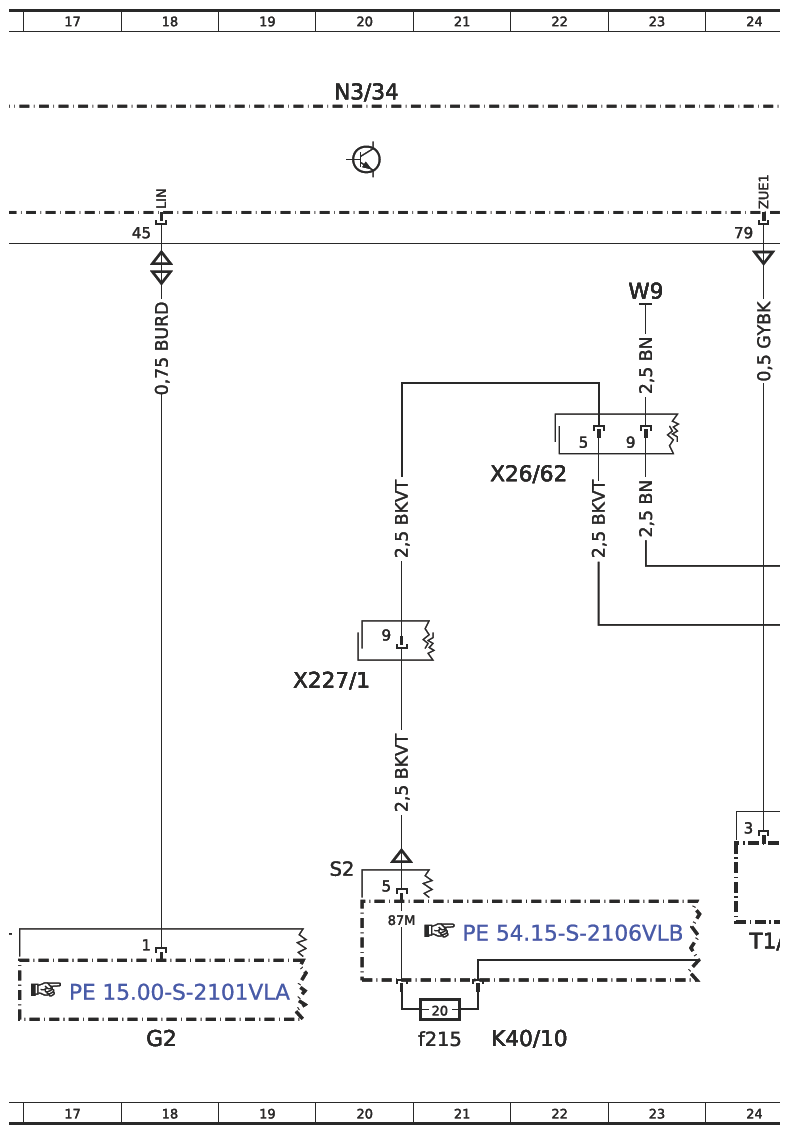

| G2 | Alternator | 18L |

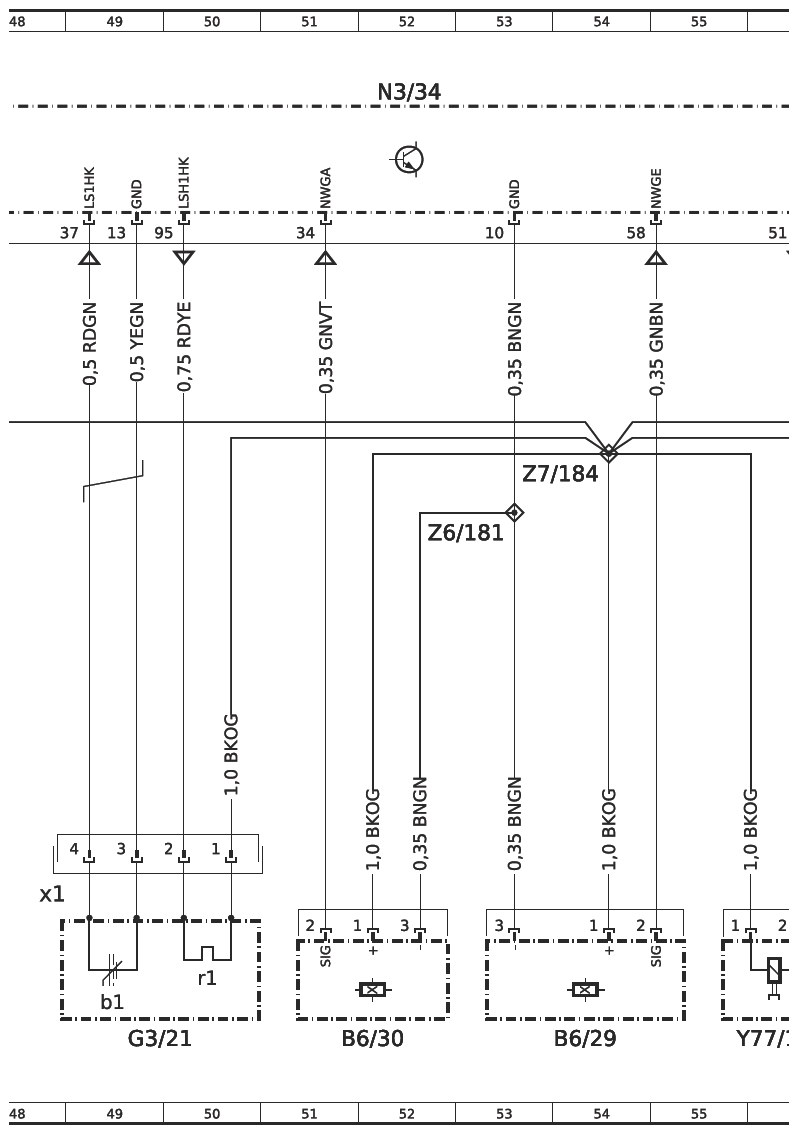

| G3/21 | Oxygen sensor downstream of catalytic converter | 49L |
| G3/21b1 | Sensor element of oxygen sensor downstream of catalytic converter | 49L |
| G3/21r1 | Heater of oxygen sensor heater downstream of catalytic converter | 50K |
| G8/6 | Oxygen sensor upstream of catalytic converter | 46L |
| G8/6b1 | Sensor element of oxygen sensor upstream of catalytic converter | 46L |
| G8/6r1 | Heater of oxygen sensor upstream of catalytic converter | 47K |
| K40/10 | Engine compartment fuse and relay module | 22L |
| K40/10 | Engine compartment fuse and relay module | 69L |
| K40/10f213 | Fuse 213 | 67L |
| K40/10f214 | Fuse 214 | 68L |
| K40/10f215 | Fuse 215 | 21L |
| M16/50 | Throttle valve actuator | 76L |
| M16/50m1 | Throttle valve actuator motor | 76K |
| M16/50r1 | Actual value potentiometer 1 | 76K |
| M16/50r2 | Actual value potentiometer 2 | 76K |

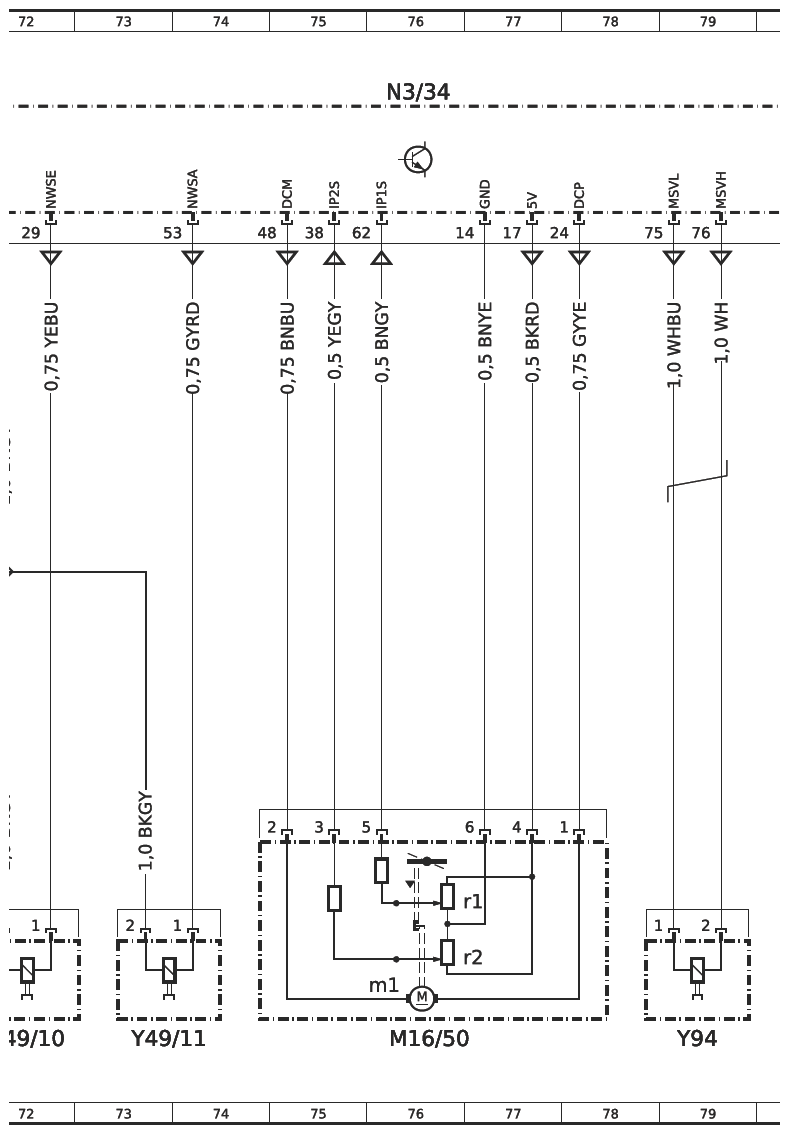

| N3/34 | ME-SFI [ME] control unit | 4A |
| N3/34 | ME-SFI [ME] control unit | 12A |
| N3/34 | ME-SFI [ME] control unit | 20A |
| N3/34 | ME-SFI [ME] control unit | 28A |
| N3/34 | ME-SFI [ME] control unit | 36A |
| N3/34 | ME-SFI [ME] control unit | 44A |
| N3/34 | ME-SFI [ME] control unit | 52A |
| N3/34 | ME-SFI [ME] control unit | 60A |
| N3/34 | ME-SFI [ME] control unit | 68A |
| N3/34 | ME-SFI [ME] control unit | 76A |
| N3/34 | ME-SFI [ME] control unit | 84A |
| N3/34 | ME-SFI [ME] control unit | 92A |
| R4 | Spark plugs | 25L |
| R4 | Spark plugs | 28L |
| R4 | Spark plugs | 31L |
| R4 | Spark plugs | 33L |
| R48/4 | Thermostat heating element | 59L |
| S43/5 | Oil level check switch | 35L |

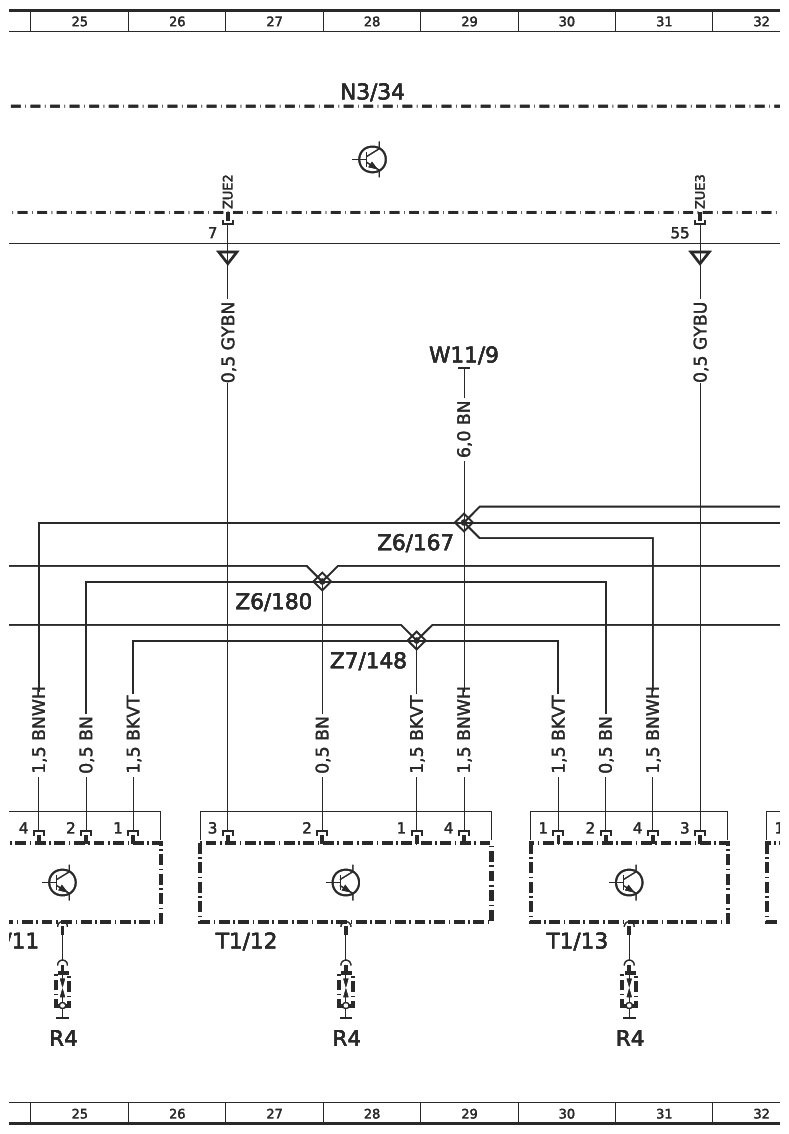

| T1/11 | Cylinder 1 ignition coil | 24K |
| T1/12 | Cylinder 2 ignition coil | 27K |
| T1/13 | Cylinder 3 ignition coil | 30K |
| T1/14 | Cylinder 4 ignition coil | 32K |
| W11/9 | Combustion engine ground point | 29D |
| W9 | Left front lamp unit ground point | 23C |

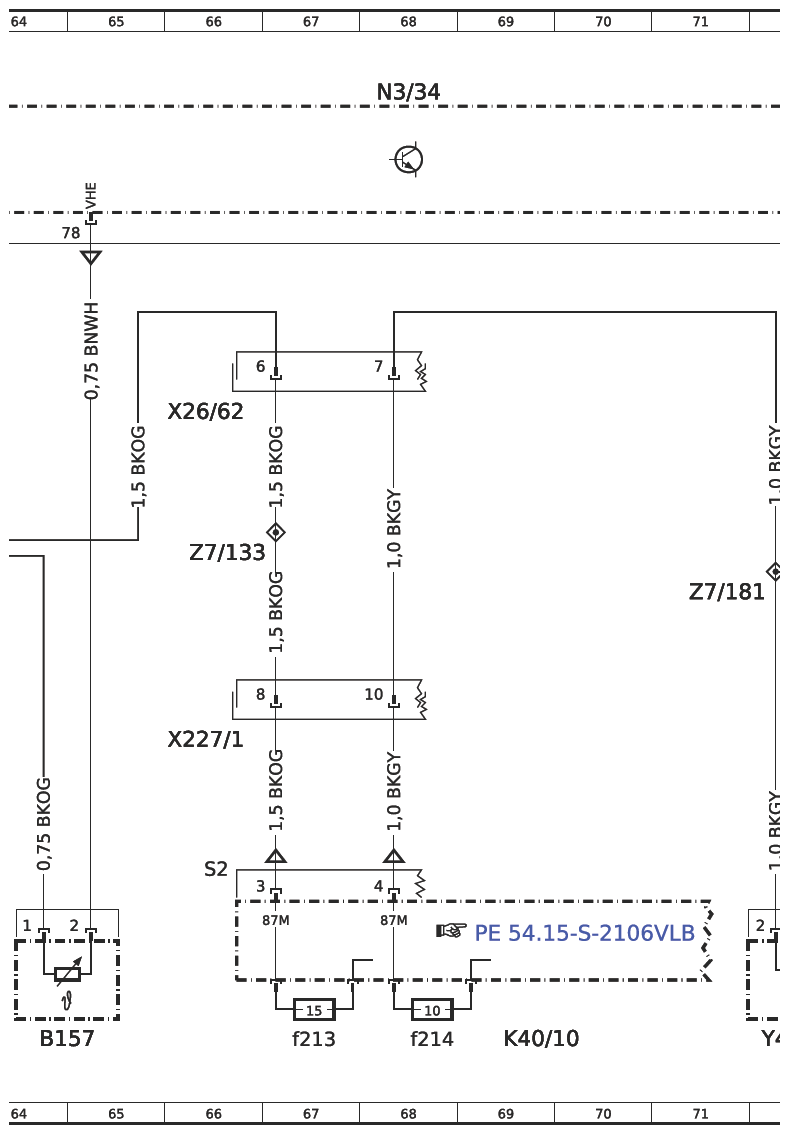

| X227/1 | Main wiring harness/fuse and relay module electrical connector 2 | 66H |
| X227/1 | Main wiring harness/fuse and relay module electrical connector 2 | 20G |
| X26/62 | Main wiring harness/engine wiring harness electrical connector | 22E |
| X26/62 | Main wiring harness/engine wiring harness electrical connector | 66D |
| Y101 | Divert air switchover valve | 60L |

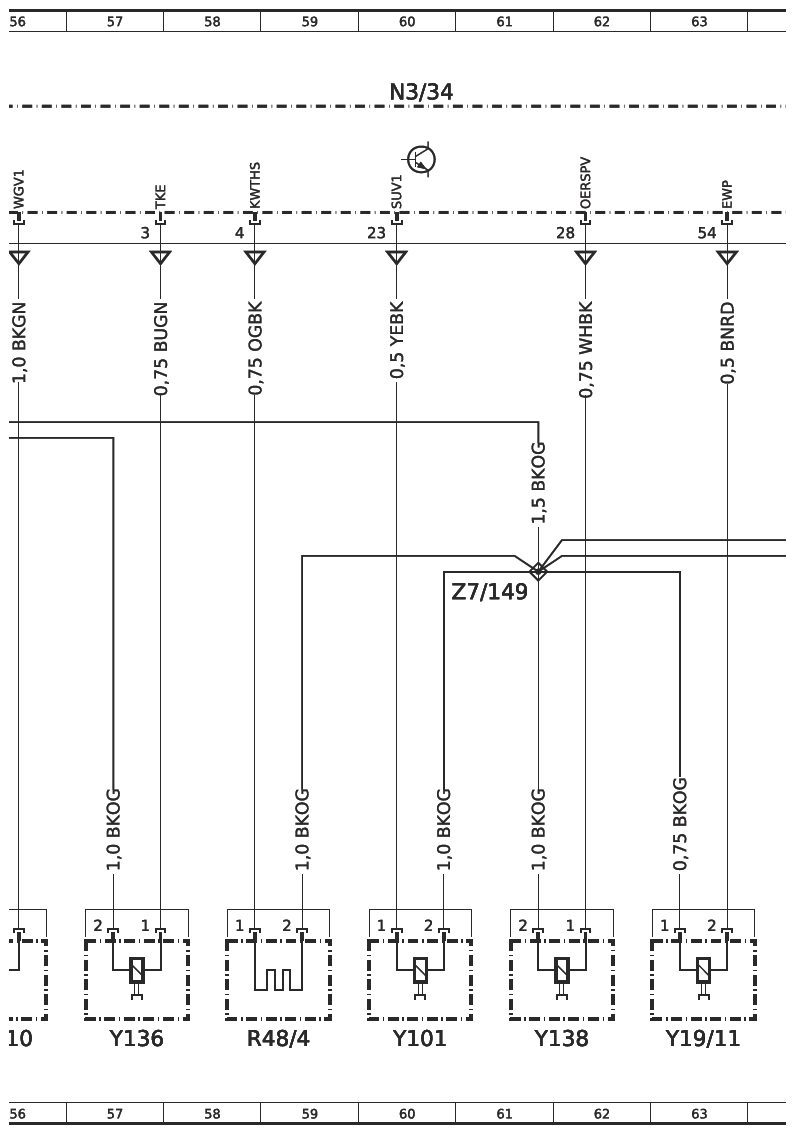

| Y136 | Partial load operation crankcase ventilation valve | 57L |
| Y138 | Engine oil pump valve | 61L |
| Y19/11 | Coolant pump switchover valve | 63L |
| Y49/10 | Intake camshaft solenoid | 72L |
| Y49/11 | Exhaust camshaft solenoid | 73L |

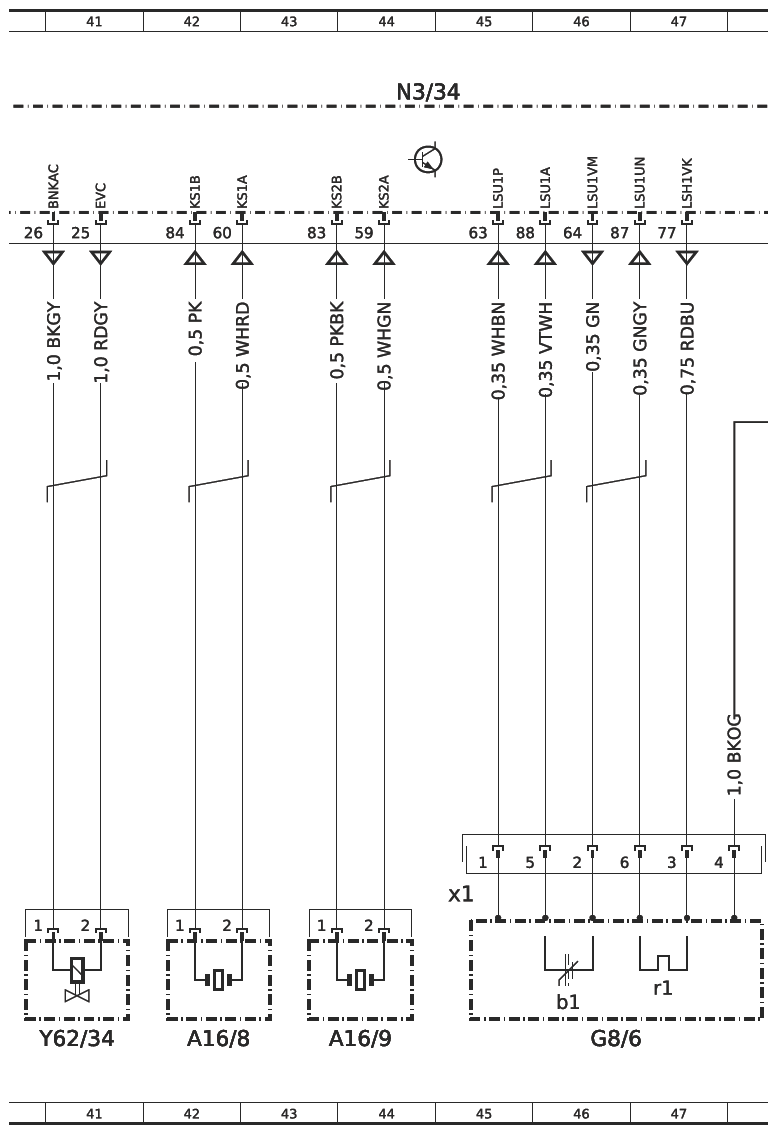

| Y62/31 | Cylinder 1 fuel injector | 36L |
| Y62/32 | Cylinder 2 fuel injector | 38L |
| Y62/33 | Cylinder 3 fuel injector | 39L |
| Y62/34 | Cylinder 4 fuel injector | 41L |
| Y77/10 | Boost pressure control pressure transducer | 56L |
| Y94 | Quantity control valve | 79L |
| Z6/156 | Sensor ground connection connector sleeve | 6F |
| Z6/157 | Sensor ground connection connector sleeve | 15E |
| Z6/167 | Ground connection connector sleeve | 29F |
| Z6/180 | Ground connection connector sleeve | 27F |
| Z6/181 | Camshaft sensor ground connection connector sleeve | 53F |
| Z7/133 | Circuit 87/2 connector sleeve | 66F |
| Z7/148 | Circuit 87/1 connector sleeve | 28G |
| Z7/149 | Circuit 87/2 connector sleeve | 61F |
| Z7/150 | 5V output connector sleeve | 4E |
| Z7/181 | Circuit 87/3 connector sleeve | 71F |
| Z7/183 | 5V output connector sleeve | 12F |
| Z7/184 | Circuit 87 connector sleeve | 54E |
