(Wiring Diagram Of Starter, Alternator, Battery - PE15.00-S-2101-97VLA)
Engine 274 in model 447.7
with code ZL3 (National version for Latin America)
except code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code ME4 (Electric motor 145 kW)
except code XM0 (Facelift)
except code XM7 (MOPF II)
M1
Engine 622 in model 447.6/7
with code ZL3 (National version for Latin America)
except code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except code M8E (Electric motor 85 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code ME4 (Electric motor 145 kW)
except code XM0 (Facelift)
except code XM7 (MOPF II)
M1
| Code: | Designation: | Position: |
|---|---|---|

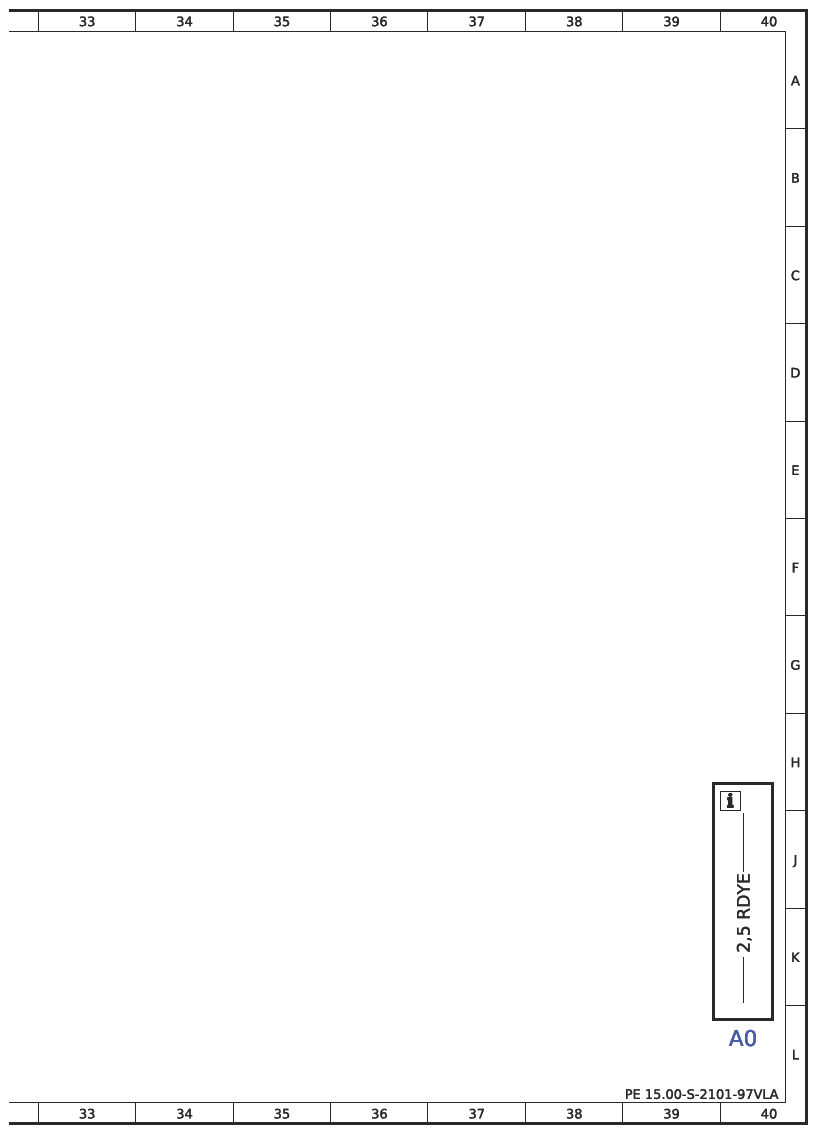

| A0 | Color code key | 40L |
| B95 | Battery sensor | 6L |
| F1 | Pre-fuse box | 4A |
| F1 | Pre-fuse box | 12A |
| F1 | Pre-fuse box | 20A |
| F1fA1 | Pyrofuse A1 | 13C |
| F1fE2 | Pre-fuse E2 | 19C |

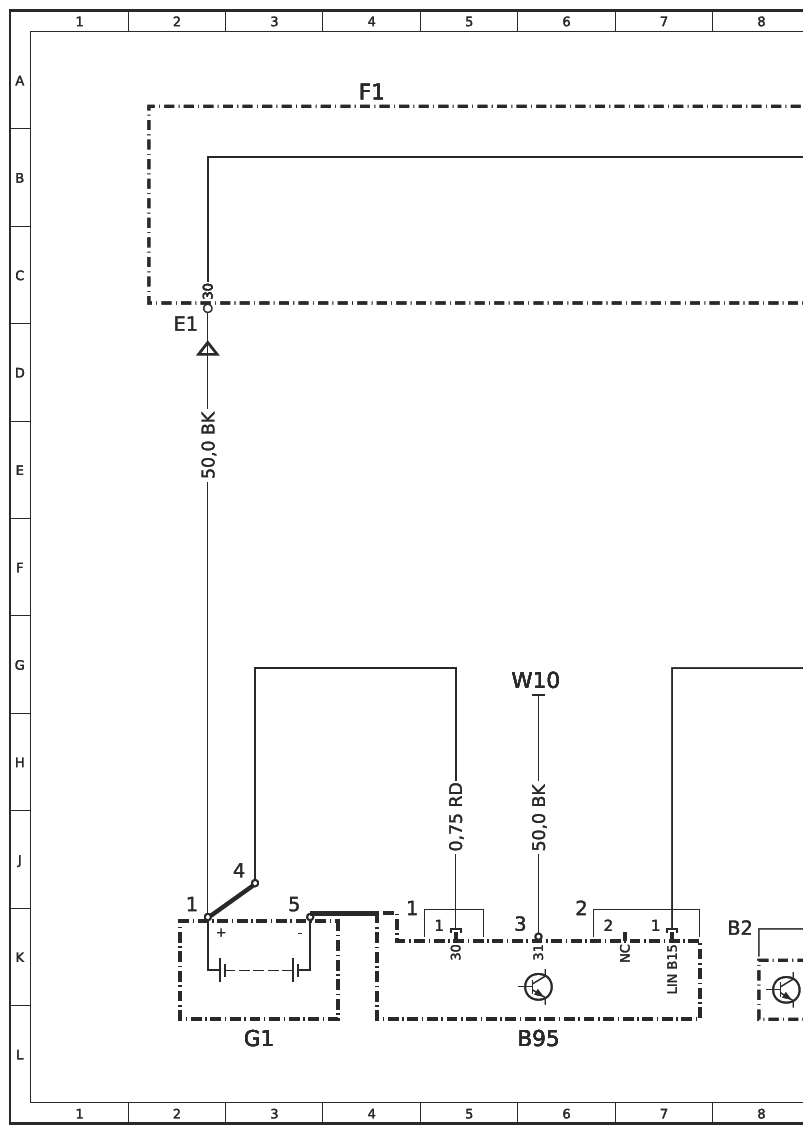

| G1 | On-board electrical system battery | 3L |

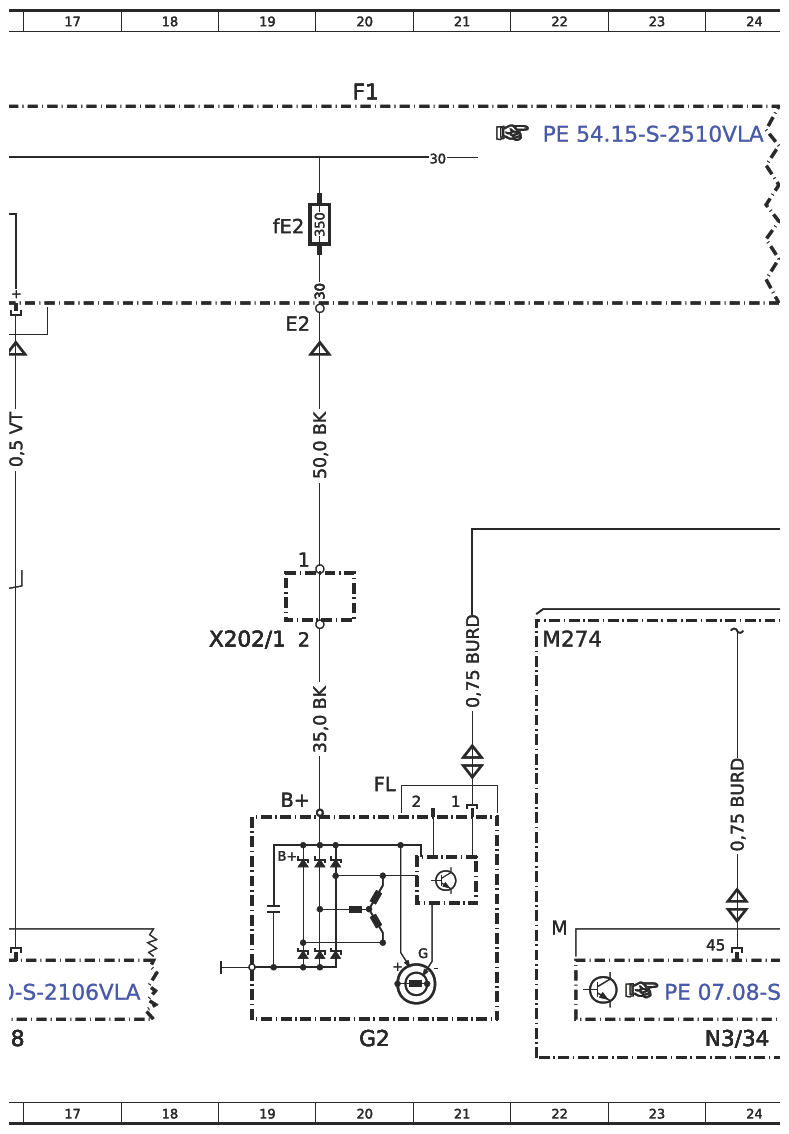

| G2 | Alternator | 20L |

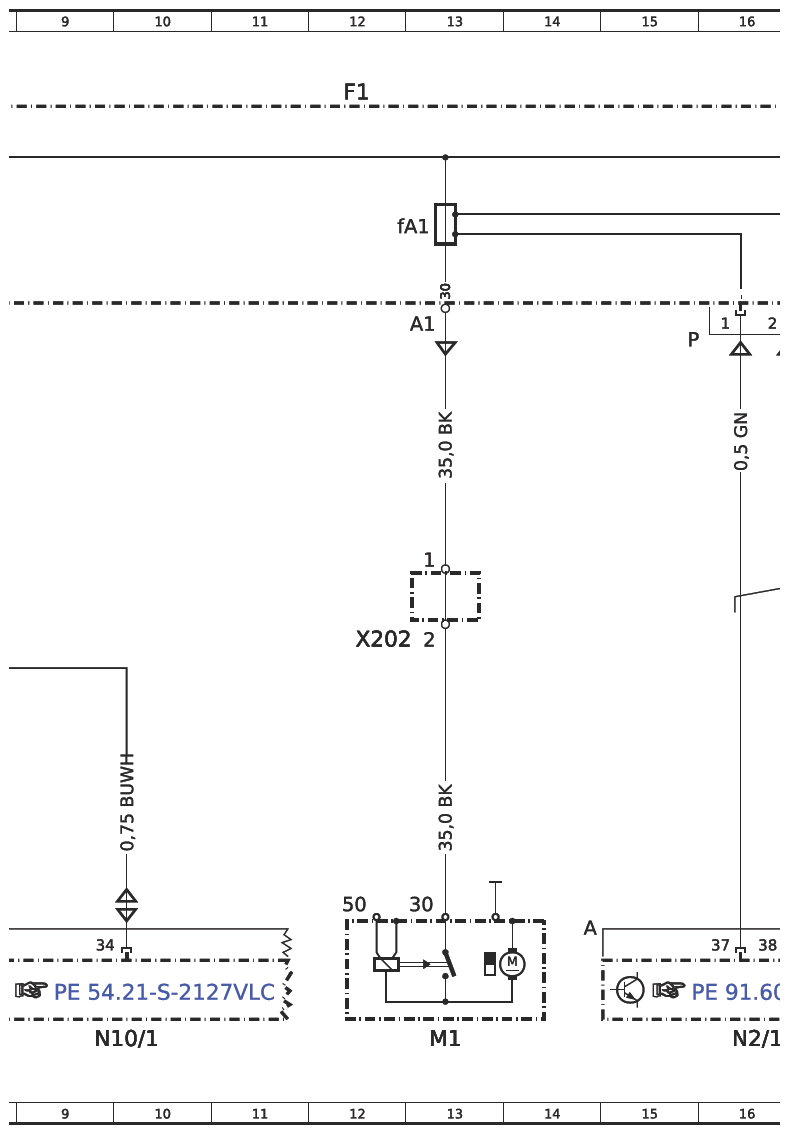

| M1 | Starter | 13L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 9L |
| N2/18 | Supplemental restraint system (SRS) control unit | 16L |
| N3/34 | ME-SFI [ME] control unit | 24L |

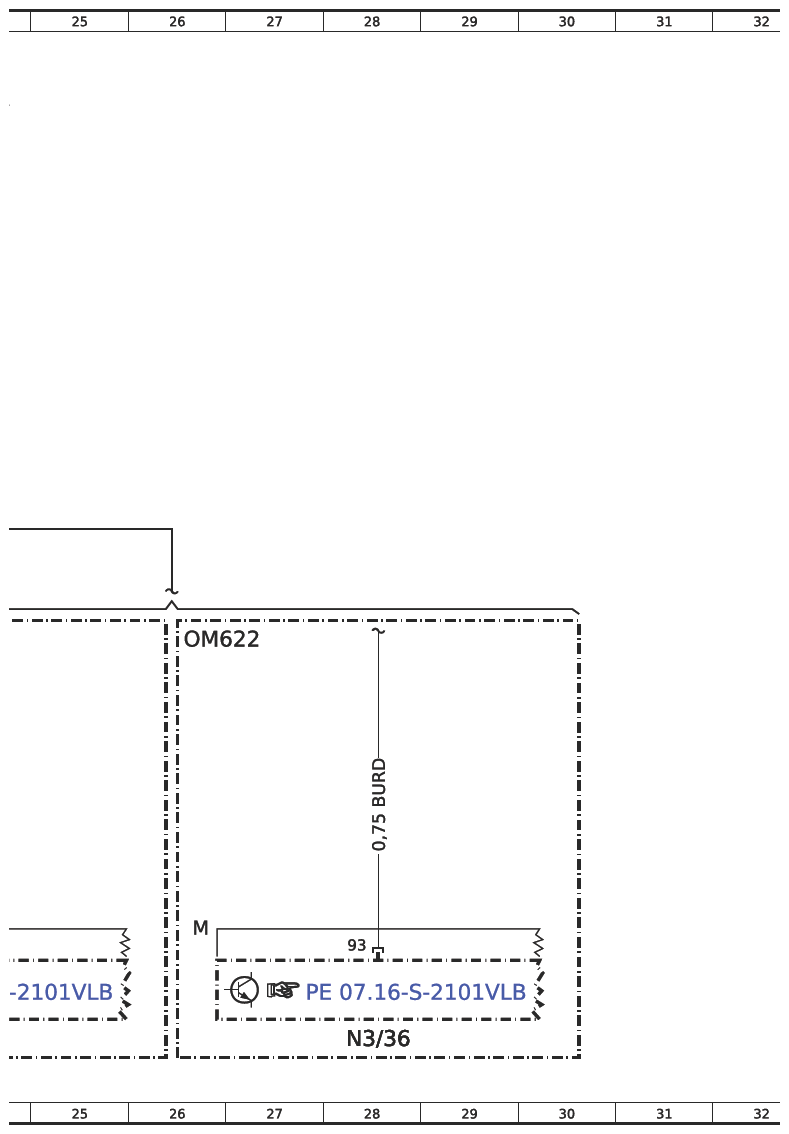

| N3/36 | CDI control unit | 28L |
| W10 | Battery ground point | 6G |
| X202 | Pre-fuse box/starter electrical distributor rail | 12G |
| X202/1 | Pre-fuse box/alternator electrical distributor rail | 19G |
