Remove/Install Engine Mount - AR22.10-S-1100EG

Model 447, 448 with engine 274

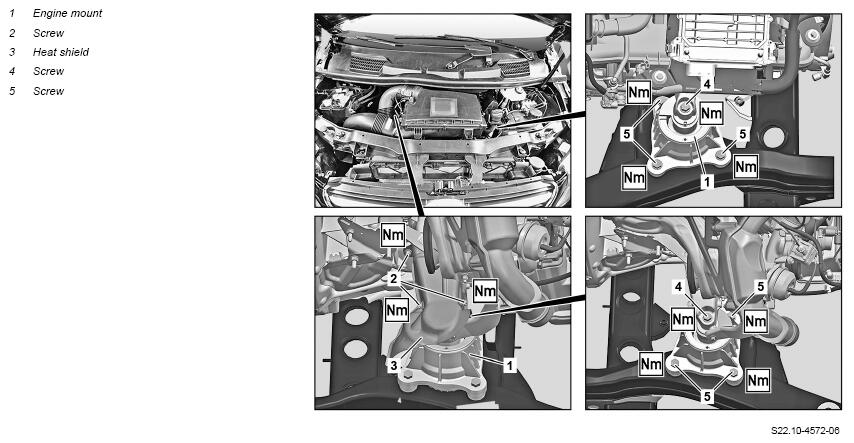

Fig 1: Engine Mount Components Location - Model 447 With Engine 274
G16481972DANGERREMOVINGINSTALLINGTORQUE SPECIFICATIONTORQUE SPECIFICATIONIMPORTANTTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLTORQUE SPECIFICATIONCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
REMOVINGINSTALLING Remove/install
1 Remove air filter housing   AR09.10-S-1150EG
2 Remove screw/bolts (2) TORQUE SPECIFICATION M6 *BA00.10-Z-1002-01KOA
3 Remove heat shield (3)
4 Remove charge air hose upstream of charge air cooler Only if right engine mount (1) is removed. AR09.41-S-8621EG
5 Remove charge air hose downstream of the charge air cooler   AR09.41-S-8625EG
6 Remove screws (4) TORQUE SPECIFICATION Bolt, front engine mount to engine support *BA22.10-Z-1003-01KEE
7 Install engine hoist and raise engine IMPORTANT Raise engine until the engine support no longer lies on the engine mount (1). AR33.10-S-0100-01E
    TORQUE SPECIFICATION M8 *BA00.10-Z-1003-01KOA
    SPECIAL TOOL Support braces Fig 2
    SPECIAL TOOL Engine lifting device Fig 3
8 Remove screws (5) TORQUE SPECIFICATION Bolt, engine mount at front to integral carrier *BA22.10-Z-1009-01KEE
9 Remove engine mount (1)
10 Install in the reverse order
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation 8.8 10.9
BA00.10-Z-1002-01KOA M6 Galvanized Nm 9 13
Phosphated Nm 9 12
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation 12.9
BA00.10-Z-1002-01KOA M6 Galvanized Nm 16
Phosphated Nm 14
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation 8.8 10.9
BA00.10-Z-1003-01KOA M8 Galvanized Nm 23 32
Phosphated Nm 21 29
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation 12.9
BA00.10-Z-1003-01KOA M8 Galvanized Nm 38
Phosphated Nm 36
ENGINE MOUNTS, ENGINE SUPPORTS

Number Designation Engine 274 in model 447 with transmission 710.5 Engine 651 in model 447 Engine 274 in model 447, 448 with transmission 722.9
BA22.10-Z-1003-01KEE Bolt, front engine mount to engine support Nm 58 58
ENGINE MOUNTS, ENGINE SUPPORTS

Number Designation Engine 274 in model 447, 448 with transmission 725.0
BA22.10-Z-1003-01KEE Bolt, front engine mount to engine support Nm 58
ENGINE MOUNTS, ENGINE SUPPORTS

Number Designation Engine 274 in model 447 with transmission 710.5 Engine 651 in model 447 Engine 274 in model 447, 448 with transmission 722.9
BA22.10-Z-1009-01KEE Bolt, engine mount at front to integral carrier Nm 58 58
ENGINE MOUNTS, ENGINE SUPPORTS

Number Designation Engine 274 in model 447, 448 with transmission 725.0
BA22.10-Z-1009-01KEE Bolt, engine mount at front to integral carrier Nm 58
Fig 2: Identifying Support Braces (447 589 00 63 00)
G16482536Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Engine Lifting Device (639 589 00 61 00)
G12094671Courtesy of MERCEDES-BENZ USA
