Detach/Attach Oil Lines Of Turbocharger - AR09.40-S-6020-19EG
Model 447, 448 with engine 274
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A |
MODIFICATION NOTES
| 01.12.2023 | Screw, oil return line to crankcase | BA09.40-Z-1007-02KOF | |
| 01.12.2023 | Screw, oil return line to turbocharger | BA09.40-Z-1006-02KOF | |
| 01.12.2023 | Bolt, oil feed line to crankcase | BA09.40-Z-1005-02KOF | |
| 01.12.2023 | Bolt, oil feed line to exhaust gas turbocharger | BA09.40-Z-1004-02KOF | |
| 29.04.2024 | Change notice (AH) document reference, added | Information block |
TURBOCHARGER
| Number | Designation | Engine 274 in model 447, 448 | ||
|---|---|---|---|---|
| BA09.40-Z-1004-02KOF | Bolt, oil feed line to exhaust gas turbocharger | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | ||
TURBOCHARGER
| Number | Designation | Engine 274 in model 447, 448 | ||
|---|---|---|---|---|
| BA09.40-Z-1005-02KOF | Bolt, oil feed line to crankcase | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | ||
TURBOCHARGER
| Number | Designation | Engine 274 in model 447, 448 | ||
|---|---|---|---|---|
| BA09.40-Z-1006-02KOF | Bolt, oil return flow line to turbocharger | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | ||
TURBOCHARGER
| Number | Designation | Engine 274 in model 447, 448 | ||
|---|---|---|---|---|
| BA09.40-Z-1007-02KOF | Screw, oil return line to crankcase | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | ||

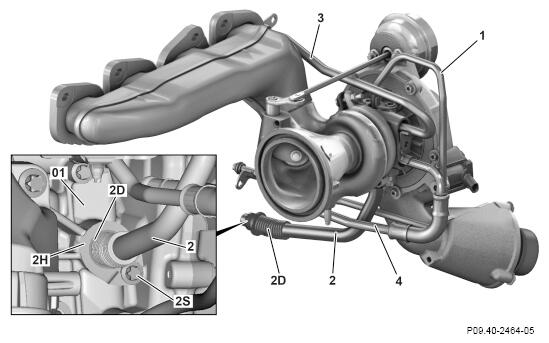

- Remove oil feed line (1) on crankcase (01)
.
: Replace seal.
- Disassemble oil inlet line (1) on exhaust gas turbocharger and remove
- Remove oil return feed line (2) from crankcase (01)
- Disassemble oil return feed line (2) on exhaust gas turbocharger and remove
- Install in the reverse order.
