Detach/Attach Coolant Lines Of Turbocharger - AR09.40-S-6020-18EG
Model 447, 448 with engine 274
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A |
TURBOCHARGER
| Number | Designation | Engine 274 in model 447, 448 | |
|---|---|---|---|
| BA09.40-Z-1008-02KOF | Screw/bolt, coolant line to exhaust gas turbocharger | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 274 in model 447, 448 | |
|---|---|---|---|
| BA09.40-Z-1009-02KOF | Screw/bolt, coolant line to coolant pump | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 274 in model 447, 448 | |
|---|---|---|---|
| BA09.40-Z-1010-02KOF | Screw/bolt, coolant line to cylinder head | Nm | 9 |

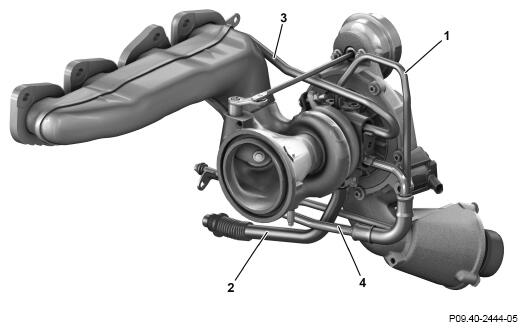

- Remove coolant return line (3) on ATL
.
: Replace seals.
- Remove coolant return line (3)
To do this remove coolant return line (3) from cylinder head.
- Remove coolant feed pipe (4) on ATL
- Remove coolant feed pipe (4)
- Install in the reverse order.
