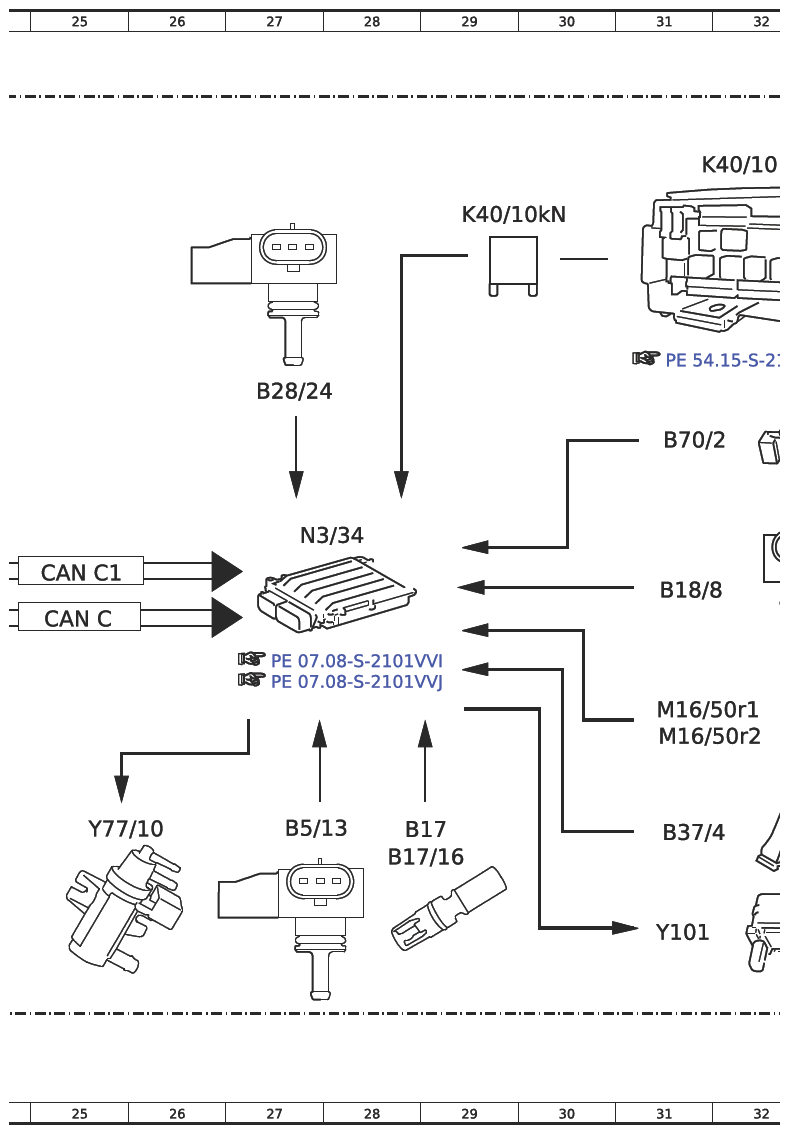

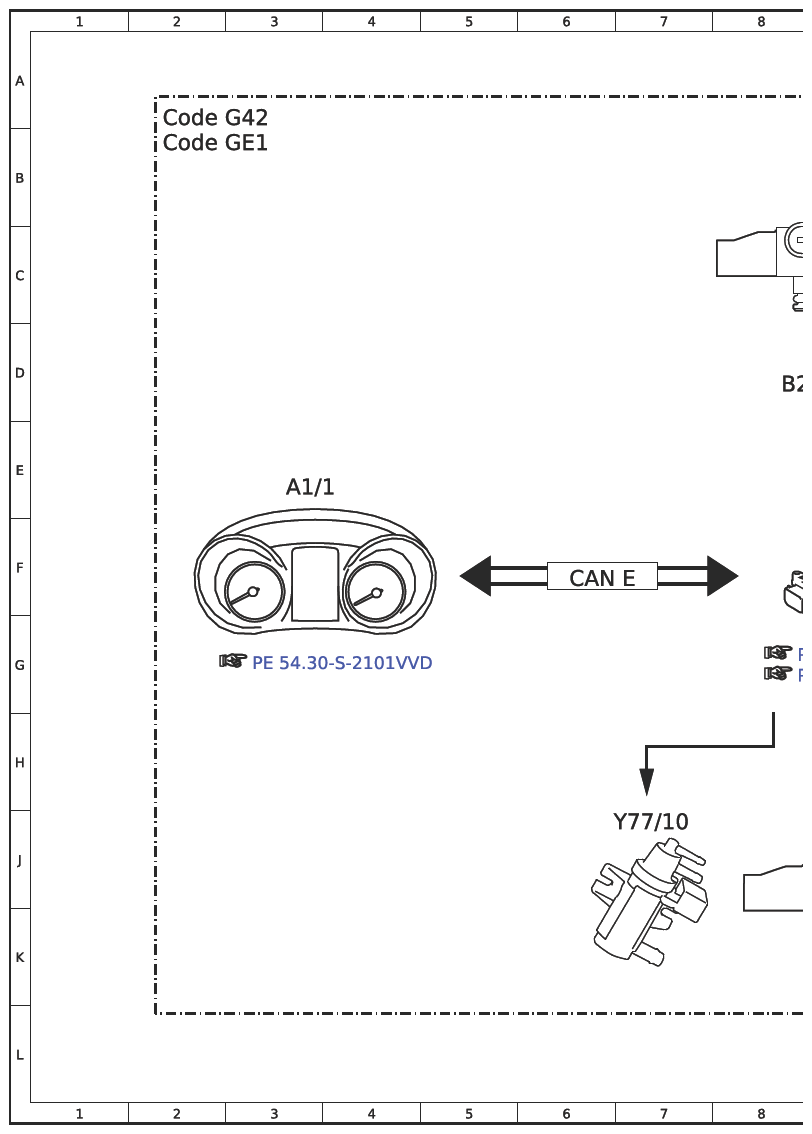

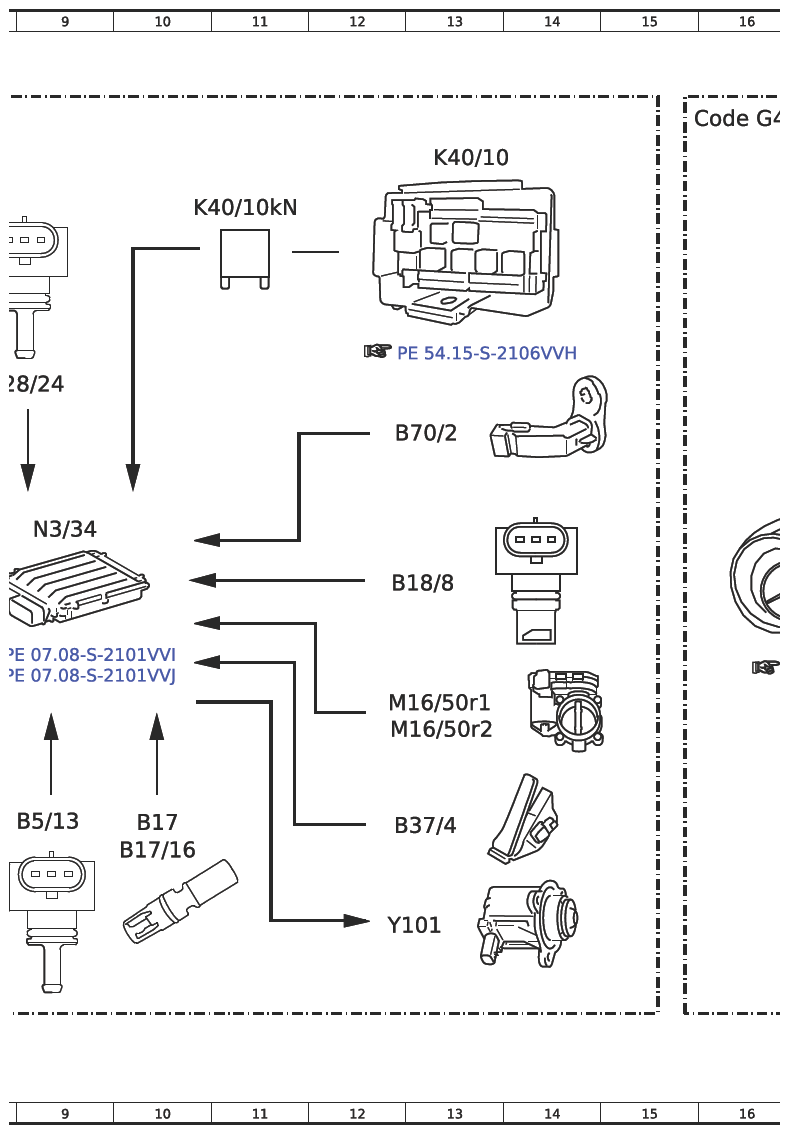

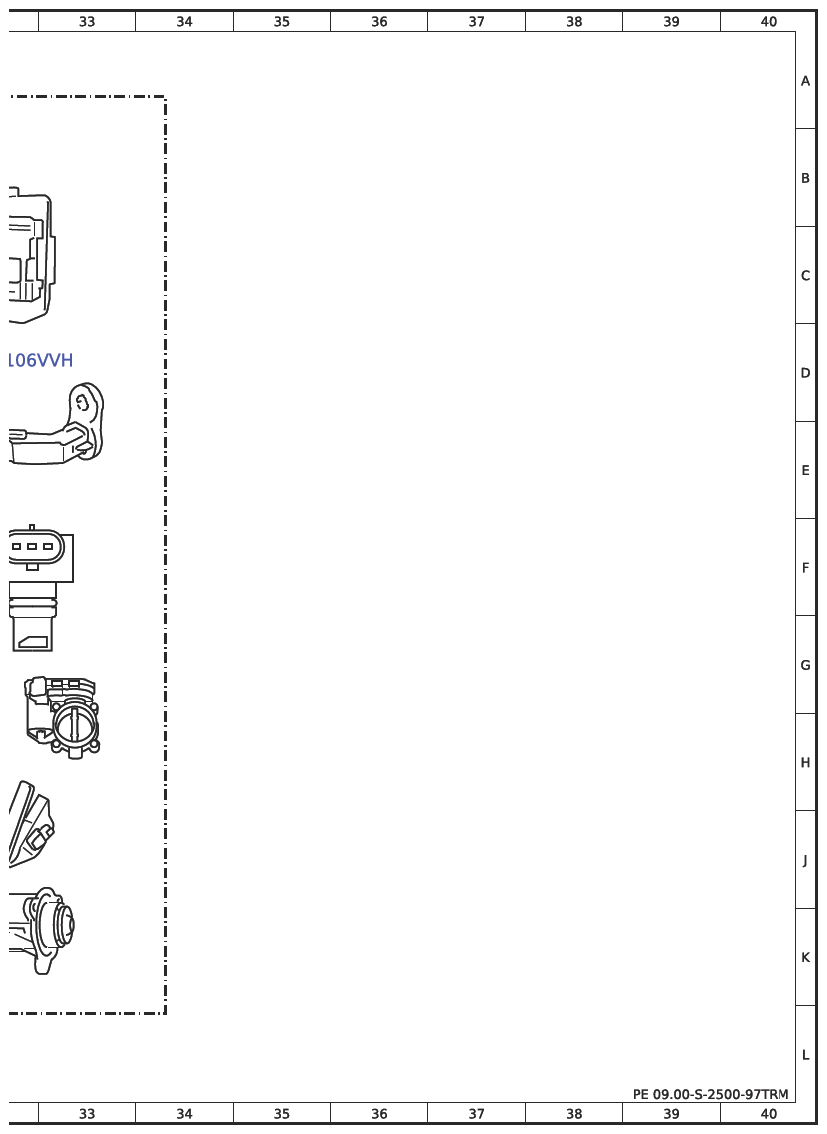

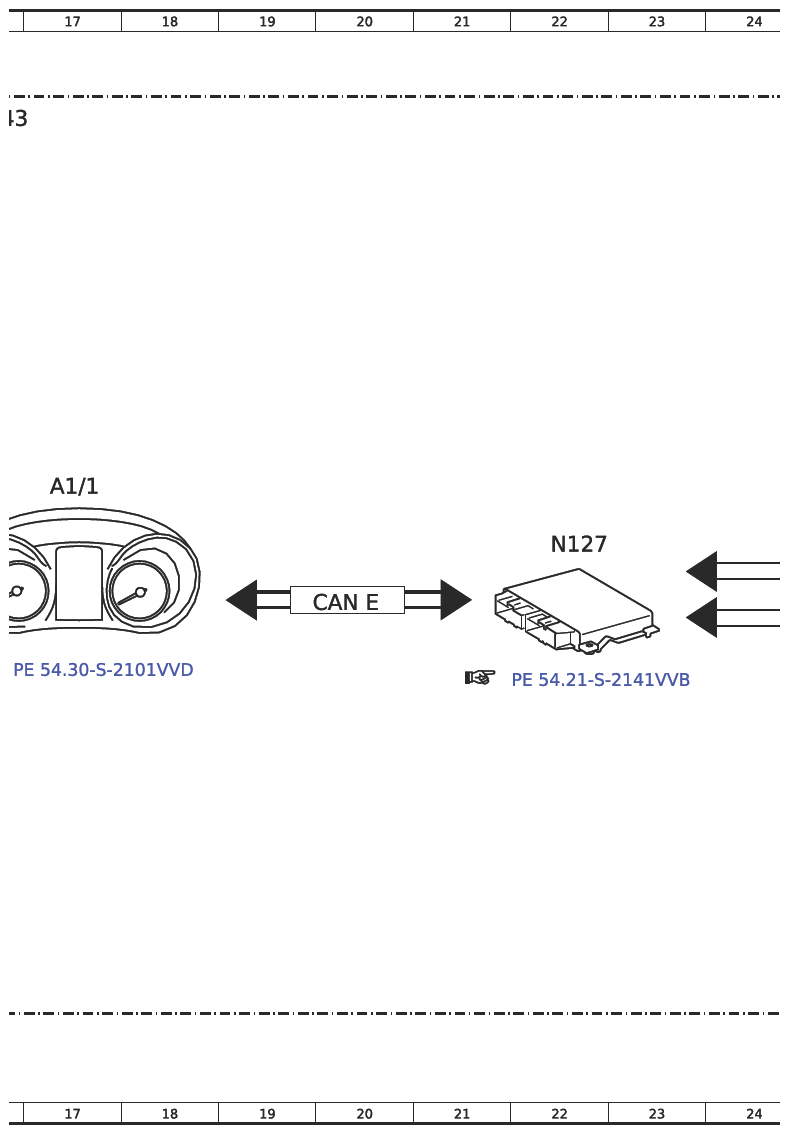

Function Schematic For Charging - PE09.00-S-2500-97TRM
Engine 274 in model 447.6/7 with code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| A1/1 | Instrument cluster (KI) control unit | 3E |
| A1/1 | Instrument cluster (KI) control unit | 17E |
| B17 | Charge air temperature sensor upstream of throttle valve | 10J |
| B17 | Charge air temperature sensor upstream of throttle valve | 28J |
| B17/16 | Charge air temperature sensor downstream of throttle valve | 10J |
| B17/16 | Charge air temperature sensor downstream of throttle valve | 28J |
| B18/8 | Pressure sensor downstream of air filter | 13F |
| B18/8 | Pressure sensor downstream of air filter | 31F |
| B28/24 | Intake manifold pressure sensor | 8D |
| B28/24 | Intake manifold pressure sensor | 27D |
| B37/4 | Accelerator pedal module | 12J |
| B37/4 | Accelerator pedal module | 31J |
| B5/13 | Pressure sensor upstream of throttle valve | 9J |
| B5/13 | Pressure sensor upstream of throttle valve | 27J |
| B70/2 | Crankshaft Hall sensor | 12E |
| B70/2 | Crankshaft Hall sensor | 31E |
| CAN C | Drive train CAN | 25G |
| CAN C1 | Engine CAN | 25F |
| CAN E | Chassis CAN | 6F |
| CAN E | Chassis CAN | 20F |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 2A |
| Code G43 | 9G-TRONIC | 15A |
| Code GE1 | 6-speed manual transmission TSG 380 | 2B |
| K40/10 | Engine compartment fuse and relay module | 13B |
| K40/10 | Engine compartment fuse and relay module | 32B |
| K40/10kN | Circuit 87M relay | 11B |
| K40/10kN | Circuit 87M relay | 29B |
| M16/50r1 | Actual value potentiometer 1 | 13G |
| M16/50r1 | Actual value potentiometer 1 | 31H |
| M16/50r2 | Actual value potentiometer 2 | 13H |
| M16/50r2 | Actual value potentiometer 2 | 31H |
| N127 | Drivetrain control unit | 22F |
| N3/34 | ME-SFI [ME] control unit | 9F |
| N3/34 | ME-SFI [ME] control unit | 27F |
| Y101 | Divert air switchover valve | 12K |
| Y101 | Divert air switchover valve | 31K |
| Y77/10 | Boost pressure control pressure transducer | 7J |
| Y77/10 | Boost pressure control pressure transducer | 25J |
