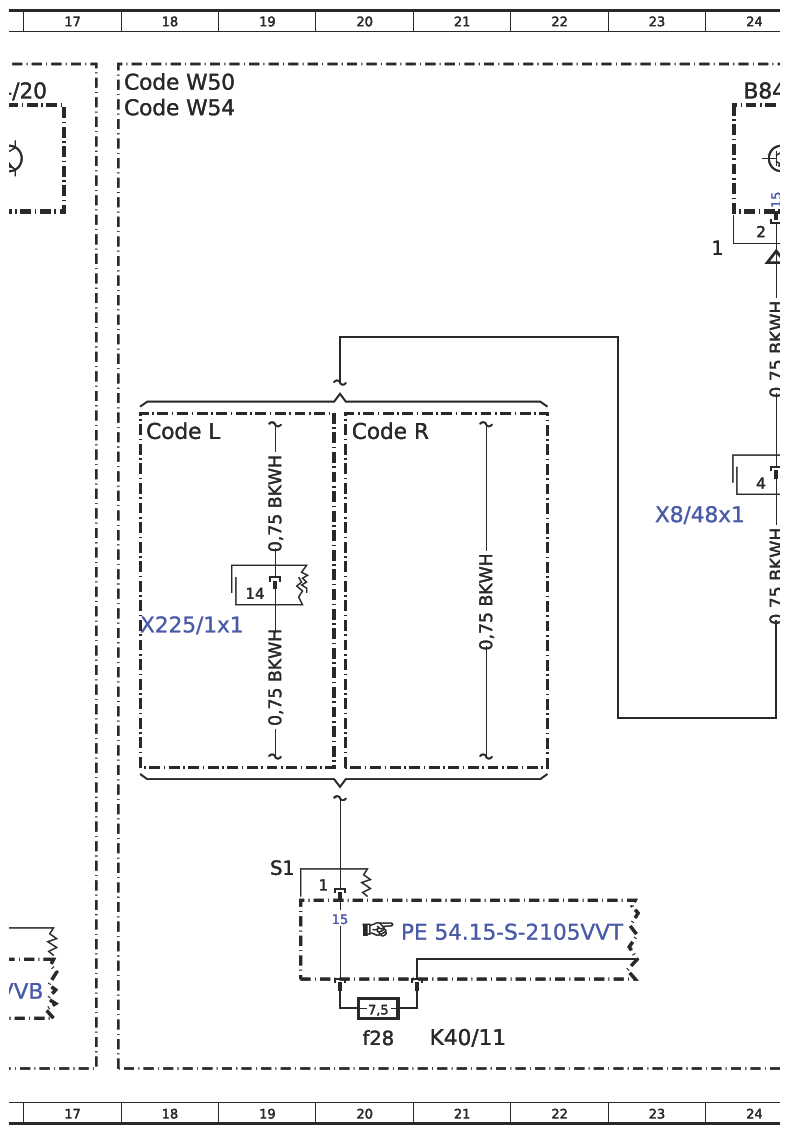

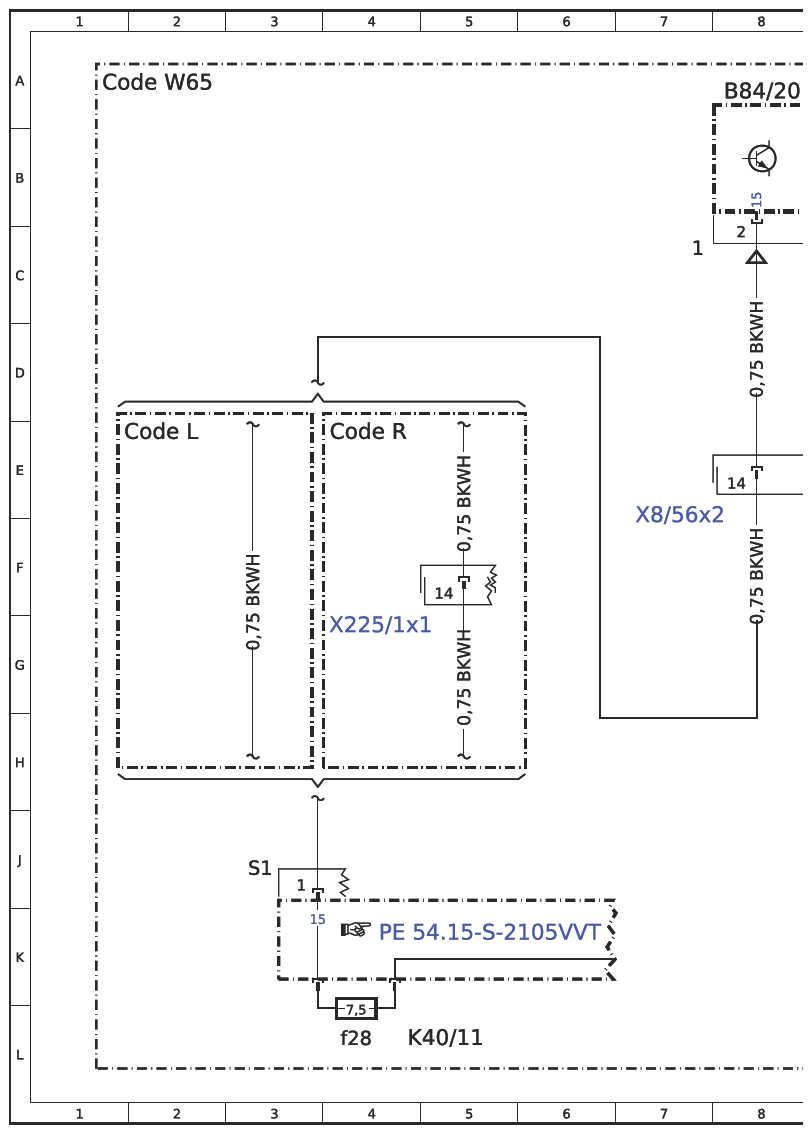

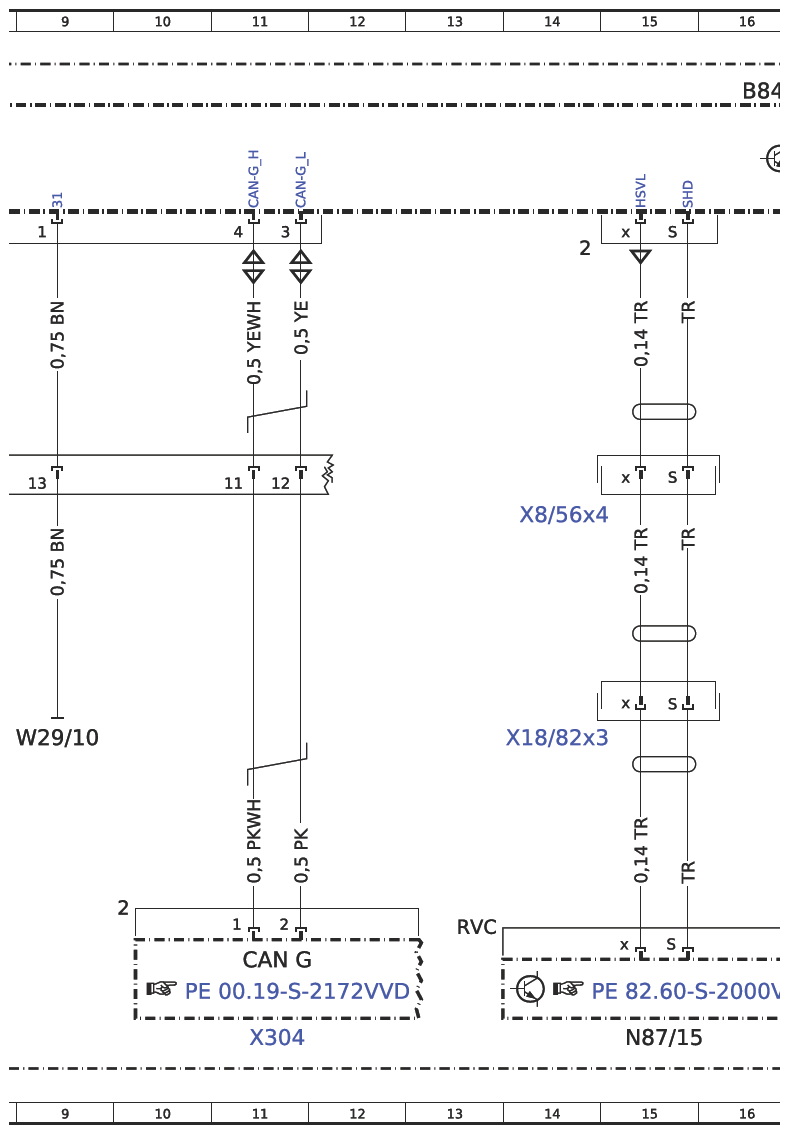

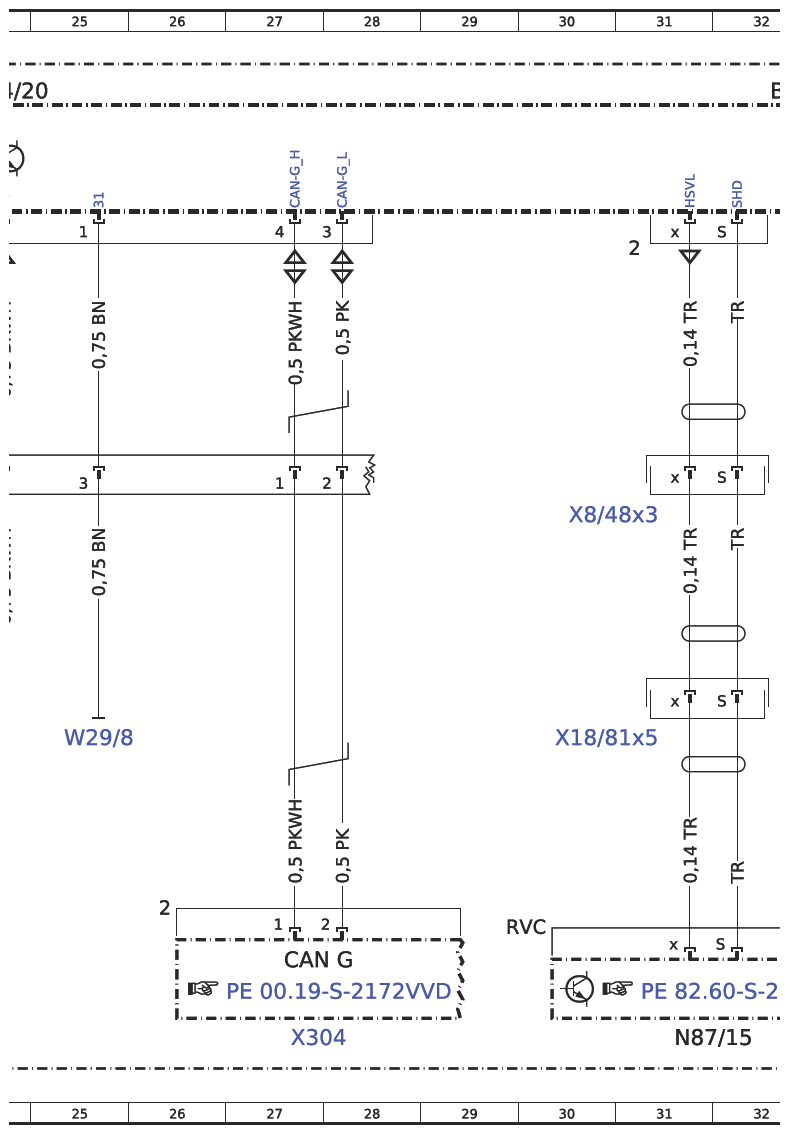

Wiring Diagram Of Reversing Camera - PE54.65-S-2103-97VVE
Model 447.6 as of 7/1/20 with code FR8 (Rear view camera) with code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) B84/20
Model 447.7 as of 7/1/20 with code FR8 (Rear view camera) with code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) B84/20
| Code: | Designation: | Position: |
|---|---|---|

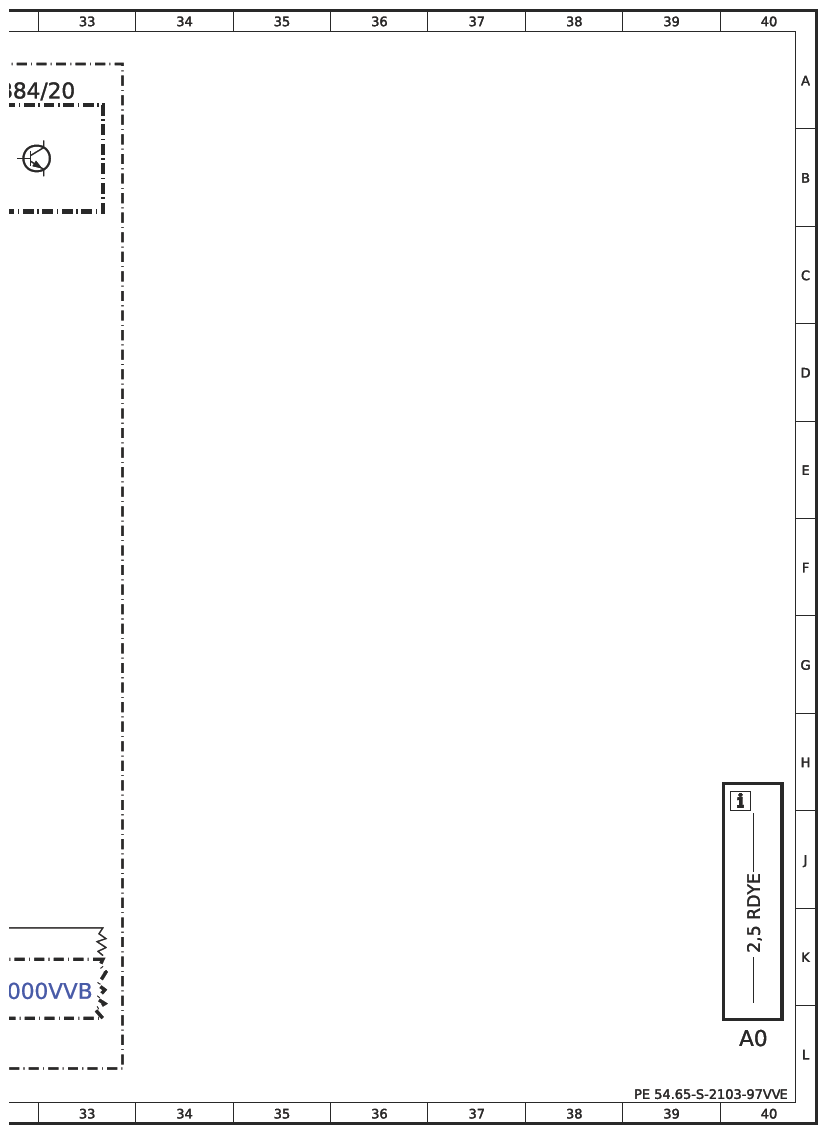

| A0 | Color code key | 40L |
| B84/20 | Reversing camera (RFK) control unit | 8A |
| B84/20 | Reversing camera (RFK) control unit | 16A |
| B84/20 | Reversing camera (RFK) control unit | 24A |
| B84/20 | Reversing camera (RFK) control unit | 32A |
| CAN G | Front end CAN | 11K |
| CAN G | Front end CAN | 27K |
| Code L | Valid for left-hand drive vehicles | 18E |
| Code L | Valid for left-hand drive vehicles | 1E |
| Code R | Valid for right-hand drive vehicles | 20E |
| Code R | Valid for right-hand drive vehicles | 4E |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 18A |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 18A |
| Code W65 | Liftgate | 1A |
| K40/11 | Firewall fuse and relay module | 21L |
| K40/11 | Firewall fuse and relay module | 5L |
| K40/11f28 | Fuse 28 | 20L |
| K40/11f28 | Fuse 28 | 4L |
| N87/15 | Radio/radio navigation | 15L |
| N87/15 | Radio/radio navigation | 31L |
| W29/10 | Right D-pillar ground point | 9H |
| W29/8 | Left D-pillar ground point | 25H |
| X18/81x5 | Left cockpit/main wiring harness electrical connector 5 | 31H |
| X18/82x3 | Right cockpit/main wiring harness electrical connector 3 | 14H |
| X225/1x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 18G |
| X225/1x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 4G |
| X304 | Front end CAN (CAN G) potential distributor electrical connector | 11L |
| X304 | Front end CAN (CAN G) potential distributor electrical connector | 27L |
| X8/48x1 | Left rear-end door electrical connector 1 | 24F |
| X8/48x3 | Left rear-end door electrical connector 3 | 31F |
| X8/56x2 | Right liftgate electrical connector 2 | 7F |
| X8/56x4 | Right liftgate electrical connector 4 | 14F |
