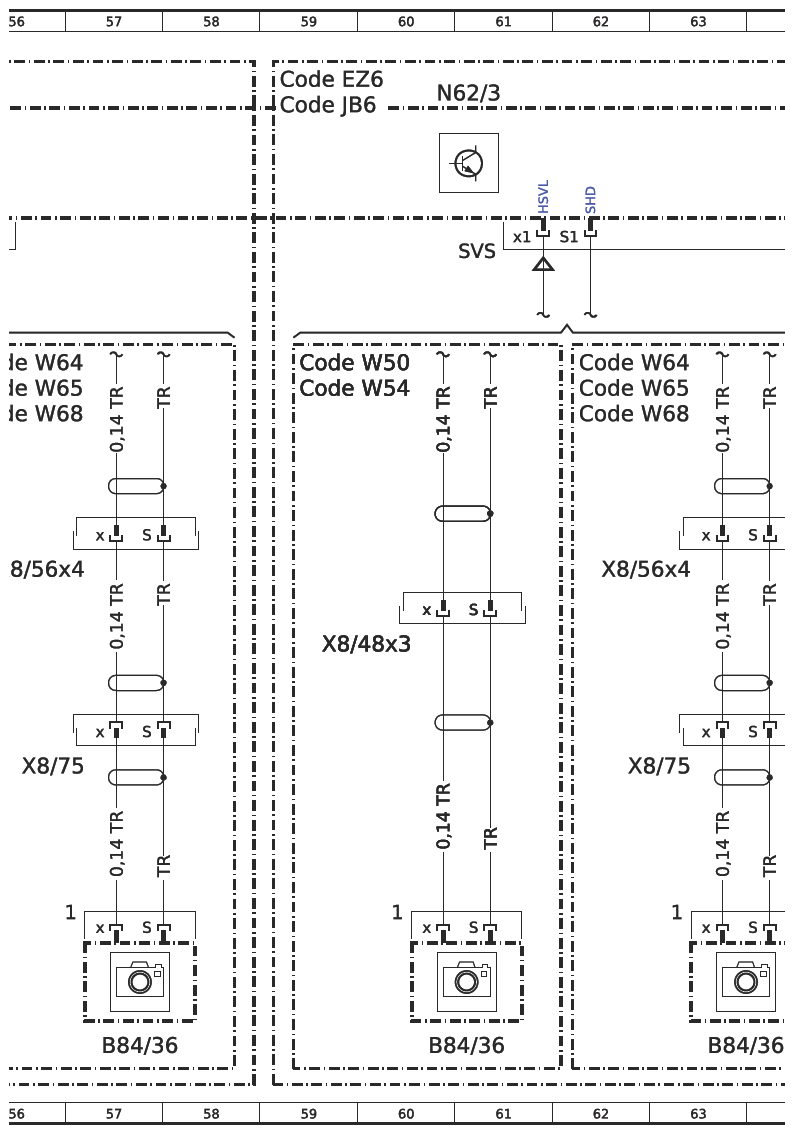

Wiring Diagram Of Parking System Control Unit - PE54.65-S-2107-97VKA
Model 447 with code EZ5 (Active Parking Assist with reversing camera) with code EZ6 (Parking package with 360-degree camera) with code JB6 (Parking package with 360-degree camera) with code JB7 (Parking Package with reversing camera) with code XM7 (MOPF II) N62/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |

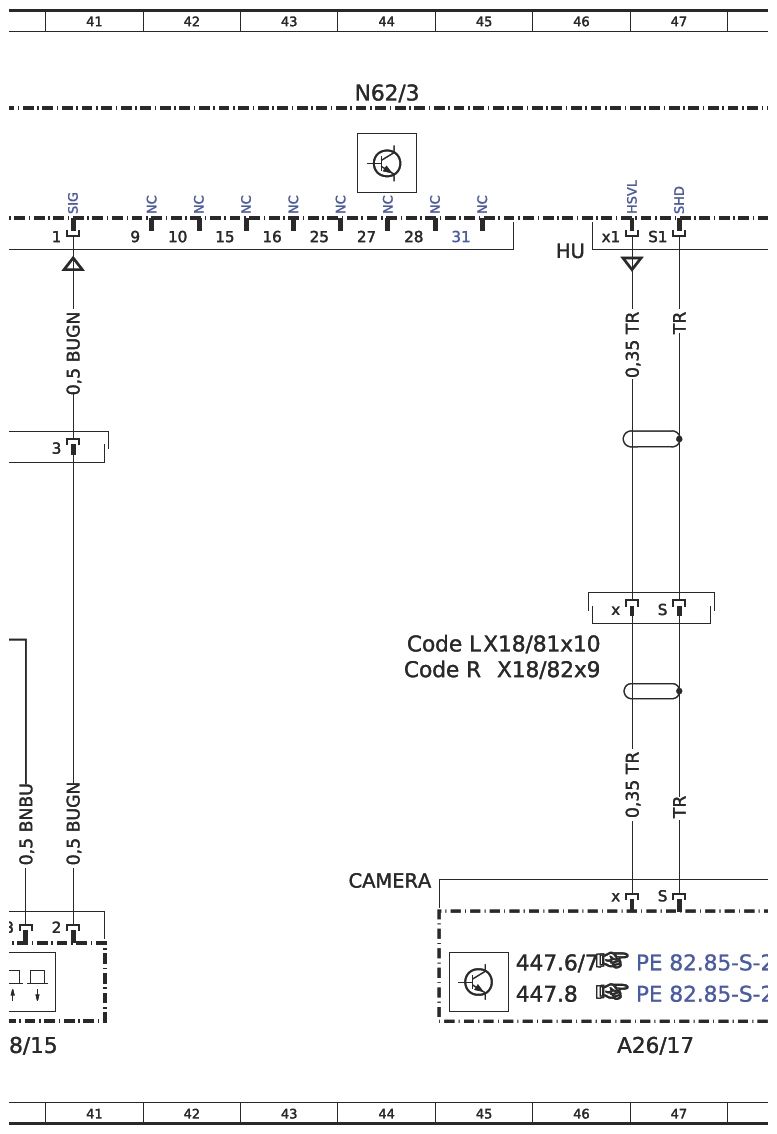

| A26/17 | Head unit | 47L |
| B8/10 | Parktronic sensor, inner left rear | 34L |
| B8/11 | PARKTRONIC sensor, center left rear | 32L |
| B8/12 | Parktronic sensor, outer left rear | 30L |
| B8/13 | Parktronic sensor, inner right rear | 36L |
| B8/14 | PARKTRONIC sensor, center right rear | 38L |
| B8/15 | Parktronic sensor, outer right rear | 40L |
| B8/16 | PARKTRONIC sensor, inner left front | 21L |
| B8/17 | PARKTRONIC sensor, center left front | 19L |
| B8/18 | PARKTRONIC sensor, outer left front | 17L |
| B8/19 | PARKTRONIC sensor, inner right front | 23L |
| B8/20 | PARKTRONIC sensor, center right front | 25L |
| B8/21 | PARKTRONIC sensor, outer right front | 27L |

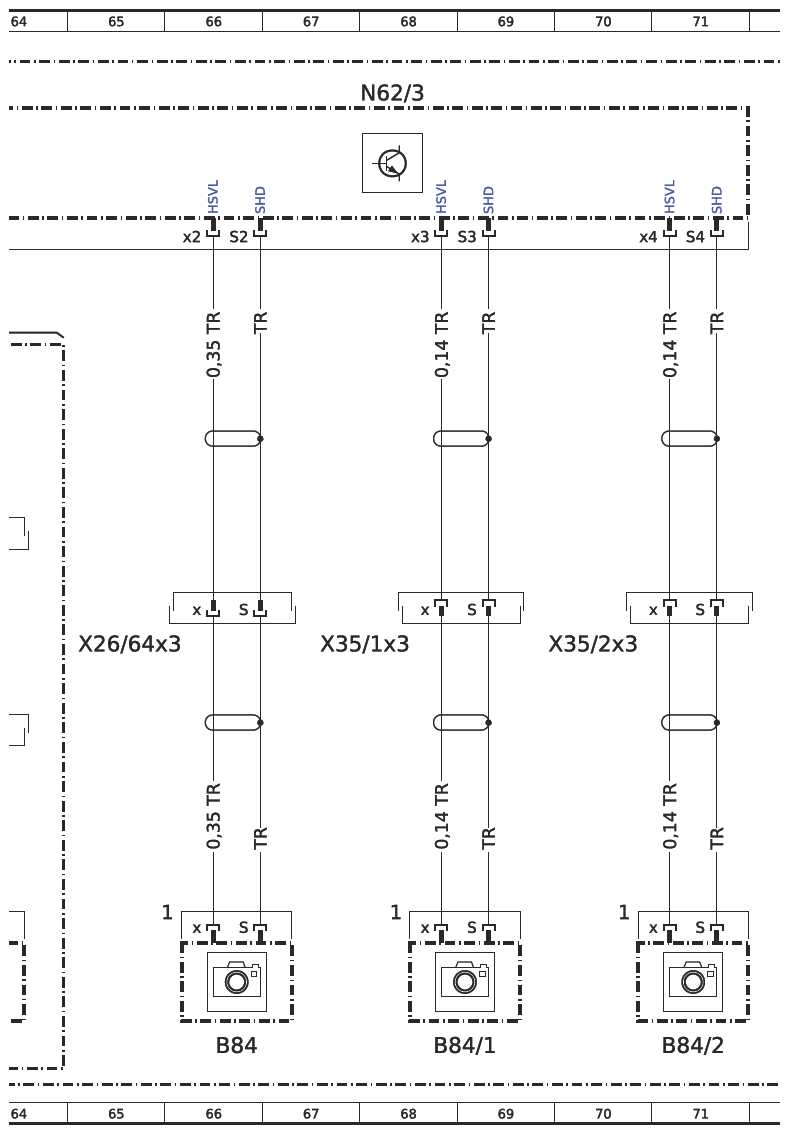

| B84 | Front 360° camera | 66L |
| B84/1 | Left outside mirror 360° camera | 68L |
| B84/2 | Right outside mirror 360° camera | 71L |
| B84/36 | Rear reversing camera/360° camera | 54L |
| B84/36 | Rear reversing camera/360° camera | 57L |
| B84/36 | Rear reversing camera/360° camera | 63L |
| B84/36 | Rear reversing camera/360° camera | 60L |

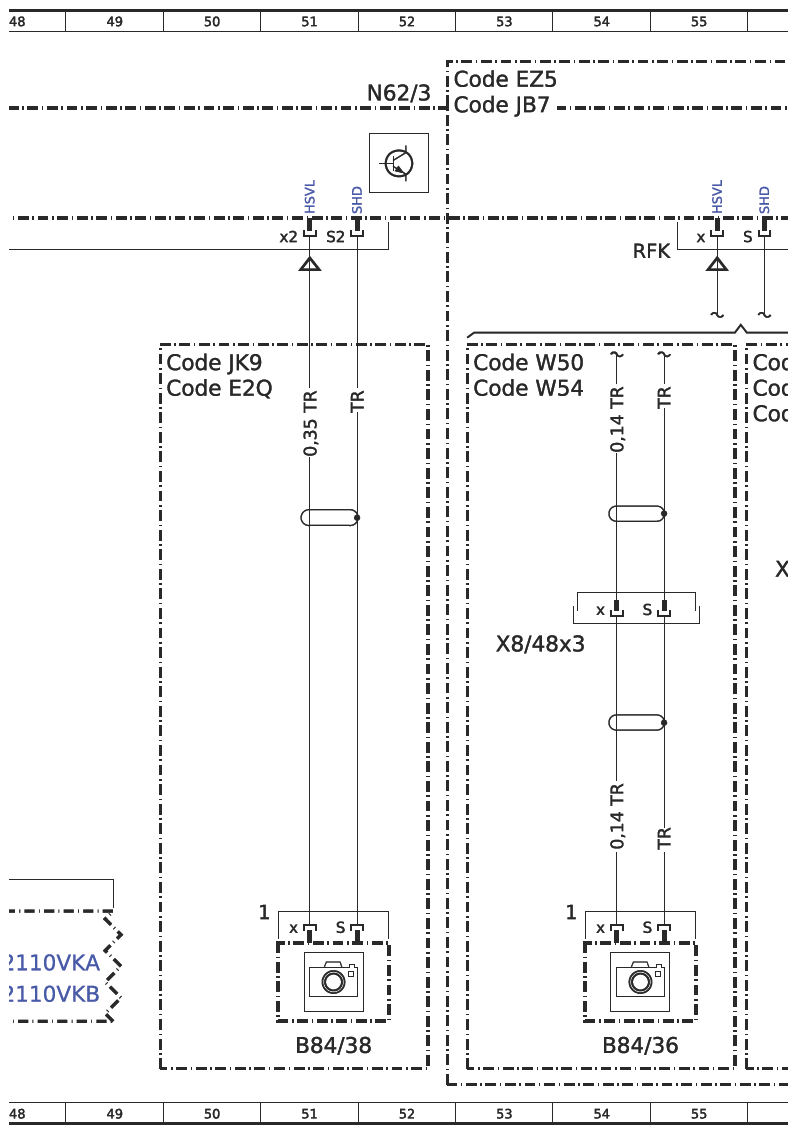

| B84/38 | Camera for Augmented Reality | 51L |

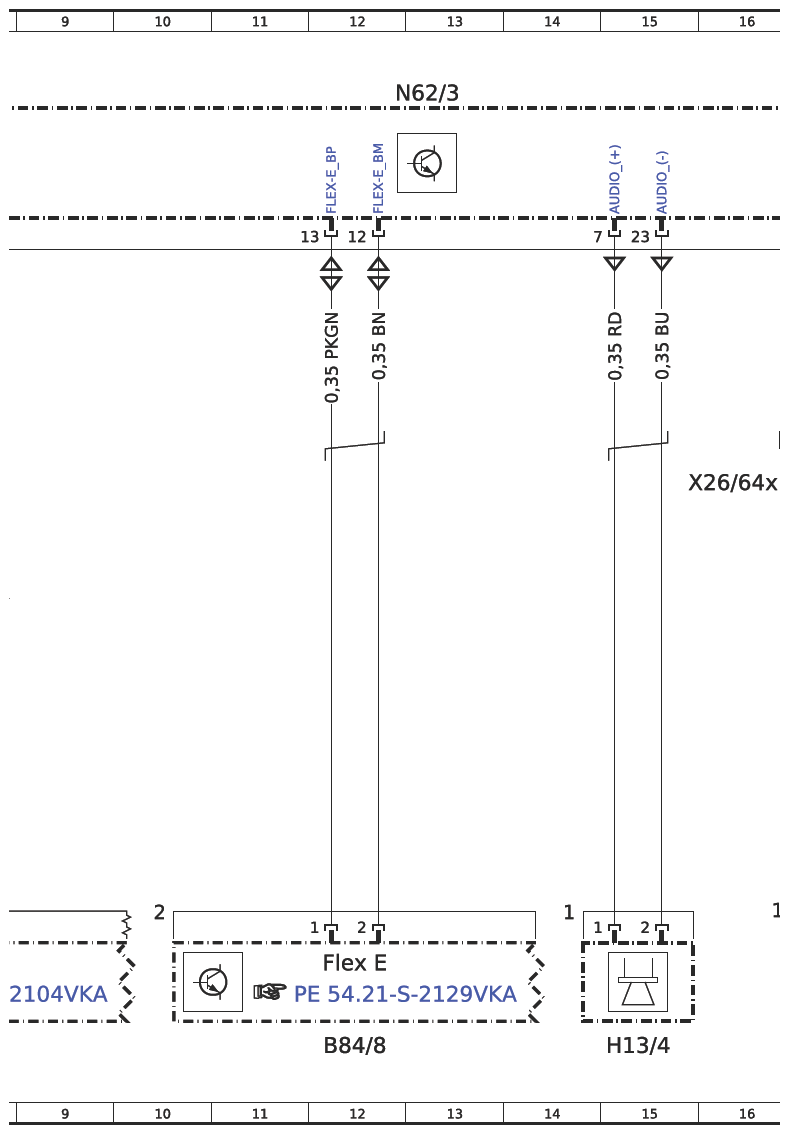

| B84/8 | Multifunction camera (MFK) control unit | 12L |
| Code E2Q | MBUX augmented reality for navigation | 50D |
| Code EZ5 | Parking package | 52A |
| Code EZ6 | Parking package with 360° camera | 59A |
| Code JB6 | Parking package with 360° camera | 59A |
| Code JB7 | Parking Package with reversing camera | 52A |
| Code JK9 | Dashcam | 50D |
| Code L | Valid for left-hand drive vehicles | 3E |
| Code L | Valid for left-hand drive vehicles | 45G |
| Code R | Valid for right-hand drive vehicles | 4E |
| Code R | Valid for right-hand drive vehicles | 45G |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 53D |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 59D |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 53D |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 59D |
| Code W64 | Separately opening rear window | 56D |
| Code W64 | Separately opening rear window | 62D |
| Code W65 | Liftgate | 56D |
| Code W65 | Liftgate | 62D |
| Code W68 | EASY PACK liftgate | 56E |
| Code W68 | EASY PACK liftgate | 62E |
| Flex E | Chassis FlexRay | 8K |
| Flex E | Chassis FlexRay | 12K |
| H13/4 | Parking assistance systems warning buzzer | 15L |

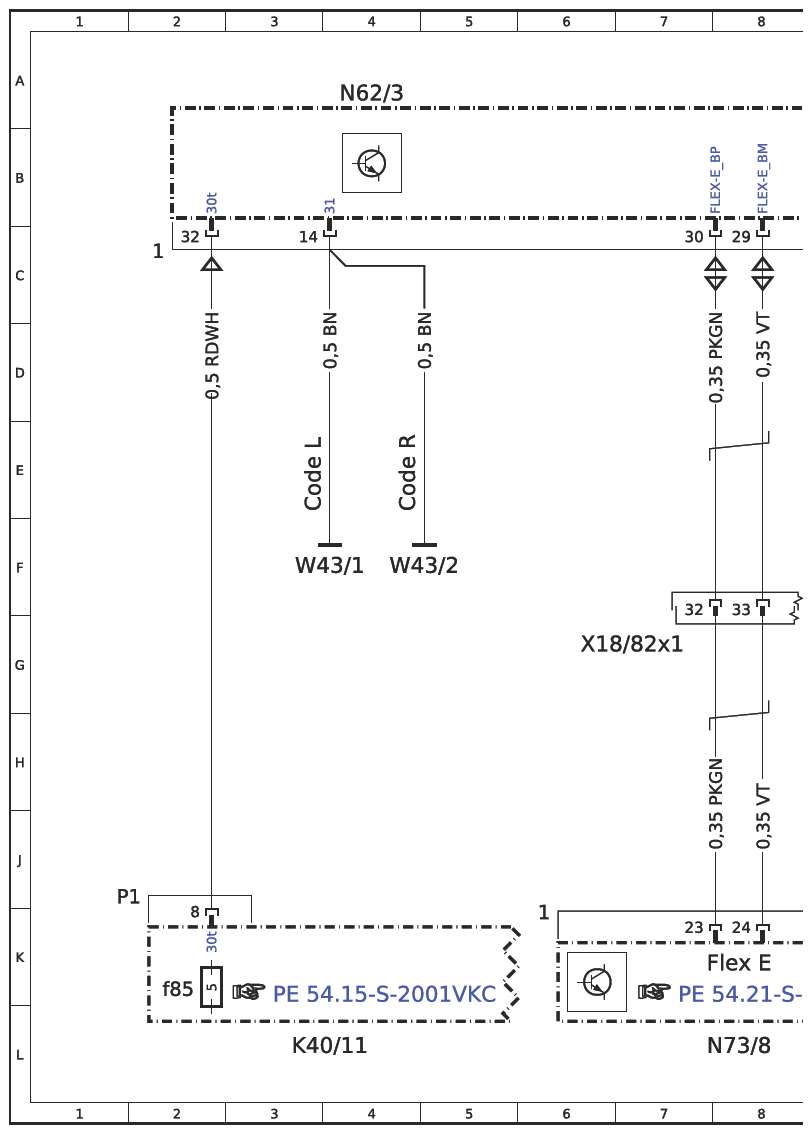

| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f85 | Fuse 85 | 2K |
| N62/3 | Parking system control unit | 4A |
| N62/3 | Parking system control unit | 20A |
| N62/3 | Parking system control unit | 28A |
| N62/3 | Parking system control unit | 44A |
| N62/3 | Parking system control unit | 13A |
| N62/3 | Parking system control unit | 36A |
| N62/3 | Parking system control unit | 52A |
| N62/3 | Parking system control unit | 61A |
| N62/3 | Parking system control unit | 68A |
| N73/8 | Electronic ignition lock (EZS) control unit | 8L |
| W43/1 | Left vehicle interior firewall ground point | 3F |
| W43/2 | Right vehicle interior firewall ground point | 4F |
| X18/81x10 | Left cockpit/main wiring harness electrical connector 10 | 46G |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 7G |
| X18/82x9 | Right cockpit/main wiring harness electrical connector 9 | 46G |

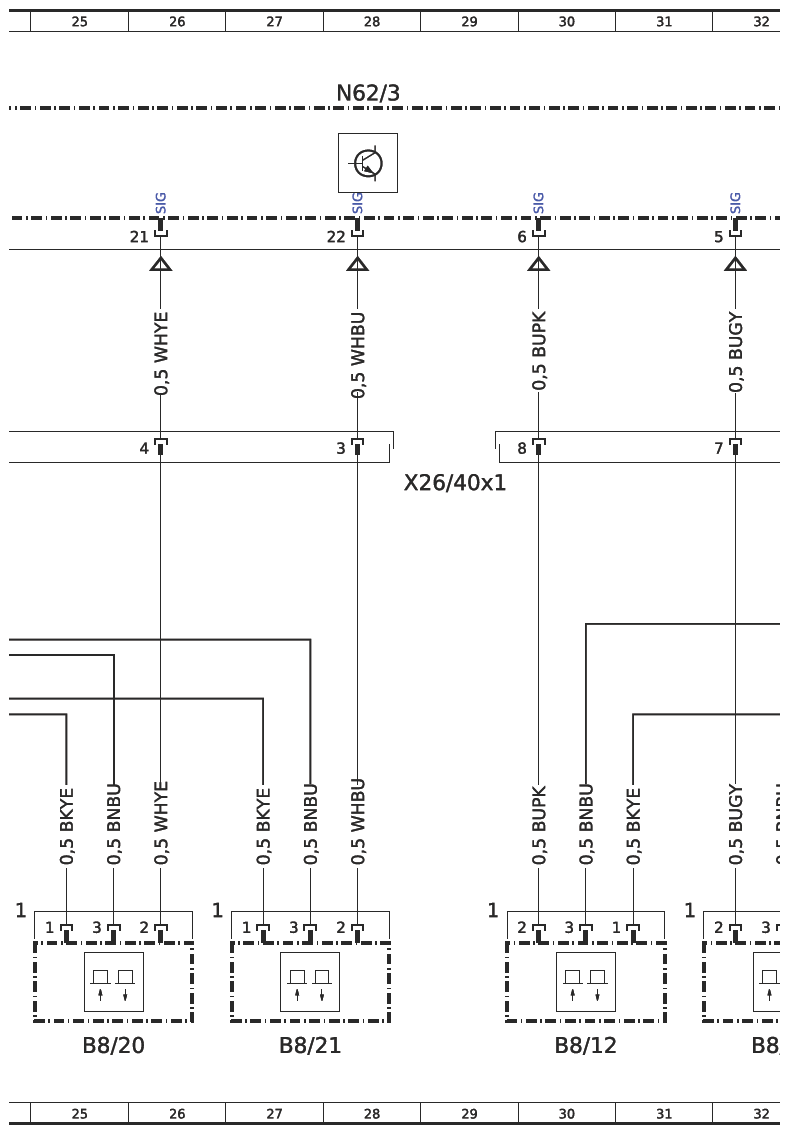

| X26/40x1 | Rear bumper PARKTRONIC electrical connector | 29E |
| X26/64x1 | Front bumper electrical connector 1 | 16E |
| X26/64x3 | Front bumper electrical connector 3 | 65G |
| X35/1x3 | Left front door electrical connector 3 | 68G |
| X35/2x3 | Right front door electrical connector 3 | 70G |
| X8/48x3 | Left rear-end door electrical connector 3 | 53G |
| X8/48x3 | Left rear-end door electrical connector 3 | 60G |
| X8/56x4 | Right liftgate electrical connector 4 | 56F |
| X8/56x4 | Right liftgate electrical connector 4 | 63F |
| X8/75 | Reversing camera/360° camera tailgate electrical connector | 56H |
| X8/75 | Reversing camera/360° camera tailgate electrical connector | 63H |

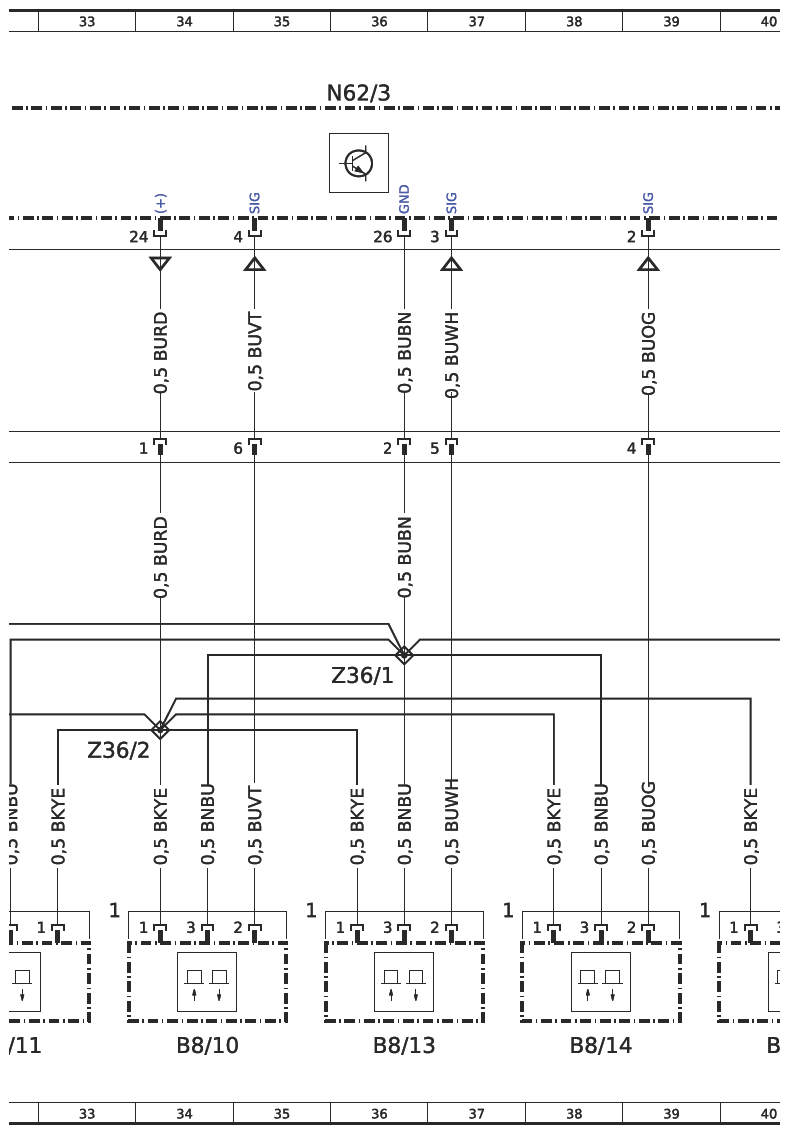

| Z36/1 | Rear sensors ground connection connector sleeve | 36G |
| Z36/2 | Rear sensors power supply connector sleeve | 33H |

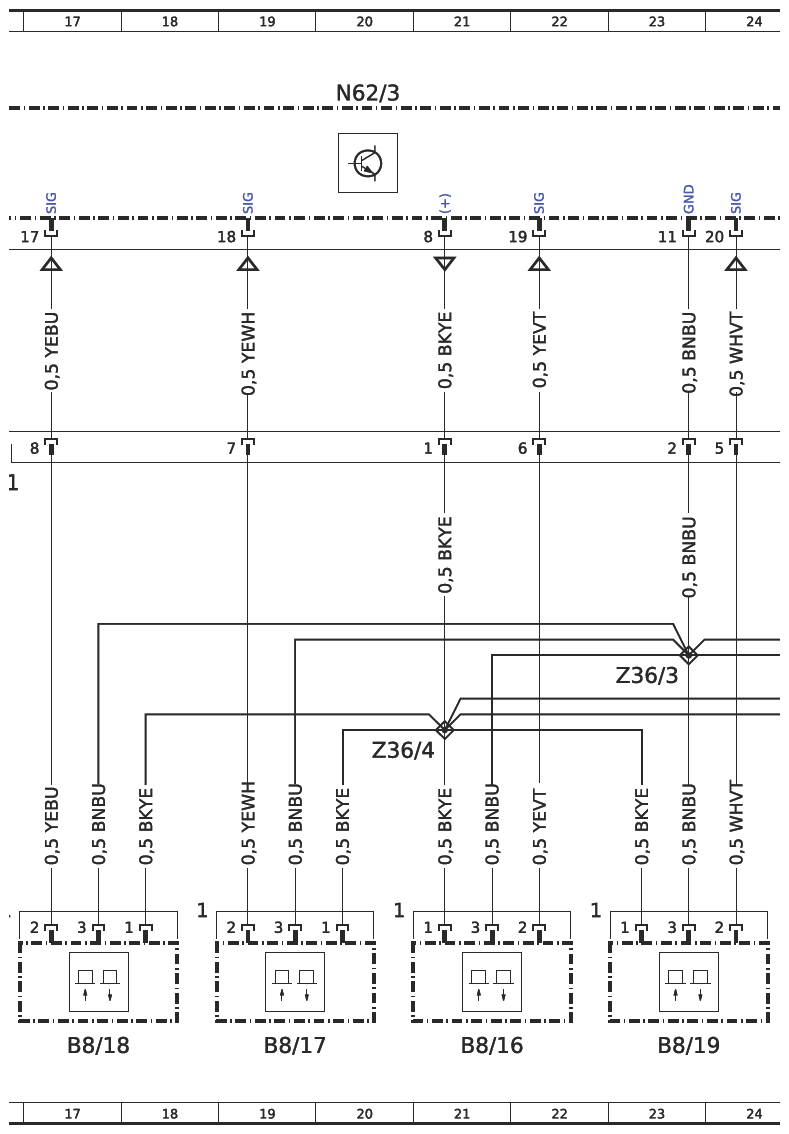

| Z36/3 | Front sensors ground connection connector sleeve | 23G |
| Z36/4 | Front sensors power supply connector sleeve | 20H |
