Wiring Diagram For Tachograph Control Unit - PE54.61-S-2101-97VVD
Model 447.6 with code J4V (Pre-installation of EU intelligent tachograph) with code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) A56
Model 447.6 with code JD6 (Intelligent tachograph, EU) with code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) A56
Model 447.7 with code J4V (Pre-installation of EU intelligent tachograph) with code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) A56
Model 447.7 with code JD6 (Intelligent tachograph, EU) with code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) A56
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A2/193 | DSRC antenna | 24L |
| A56 | Digital tachograph (DTCO) control unit | 4A |
| A56 | Digital tachograph (DTCO) control unit | 12A |
| A56 | Digital tachograph (DTCO) control unit | 20A |

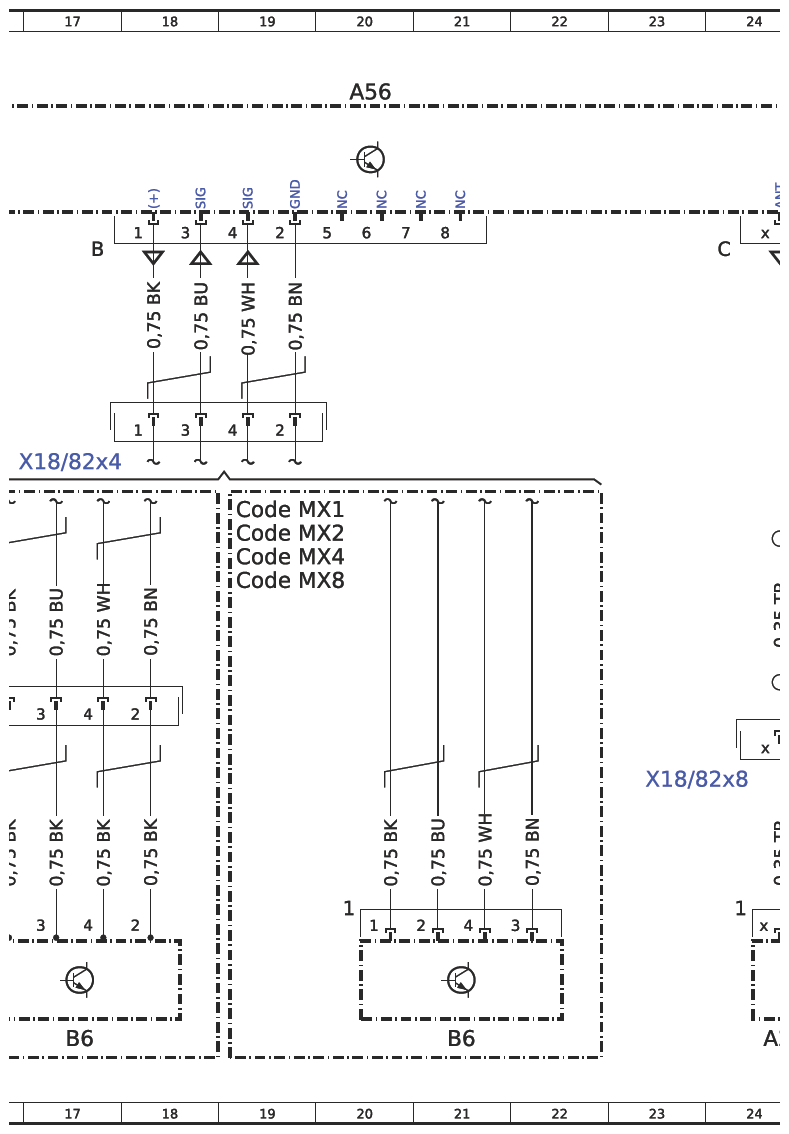

| B6 | Vehicle speed Hall sensor | 17L |
| B6 | Vehicle speed Hall sensor | 21L |

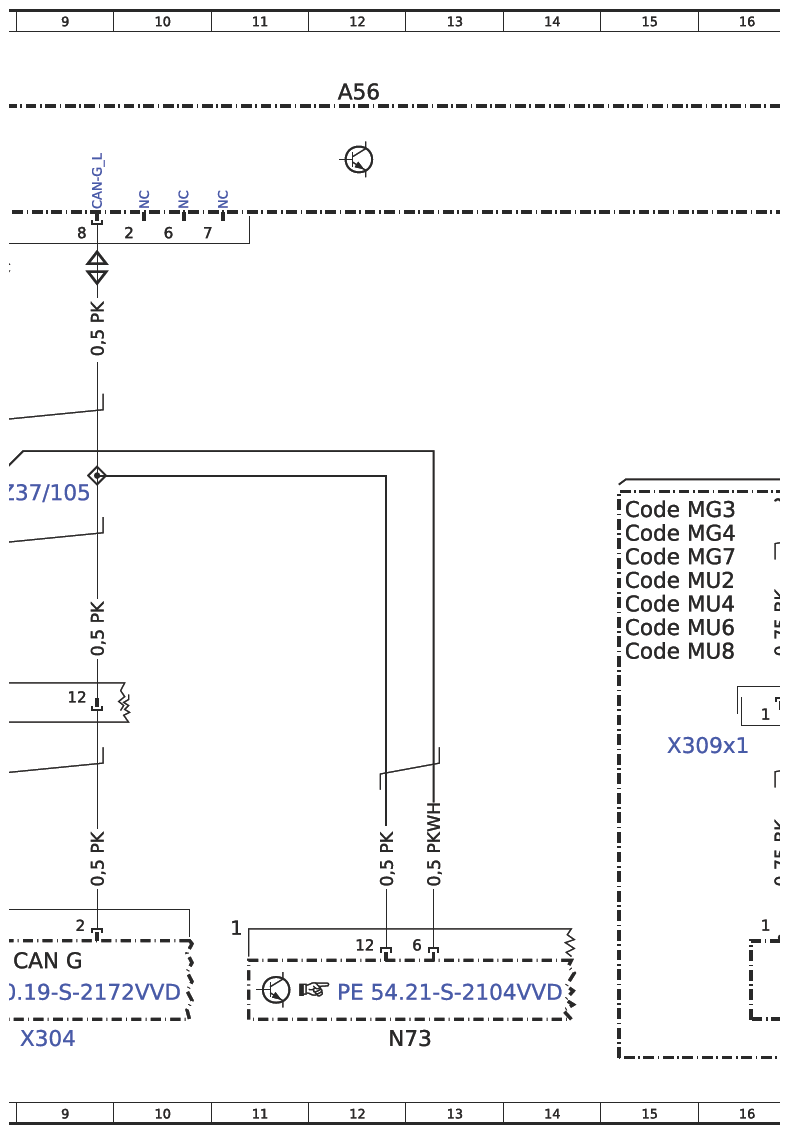

| CAN G | Front end CAN | 9K |
| Code MG3 | Engine OM 651 DE 22 LA 120 kW (163 hp) 3800 rpm | 15E |
| Code MG4 | Engine OM 651 DE 22 LA 140 kW (190 hp) 3800 rpm | 15F |
| Code MG7 | Engine OM 651 DE 22 LA 100 kW 3800 rpm | 15F |
| Code MU2 | OM 654 DE 20 LA 100 kW (136 hp) 3800 rpm | 15F |
| Code MU4 | OM 654 DE 20 LA 120 kW (163 hp) 3800 rpm | 15F |
| Code MU6 | OM 654 DE 20 LA 140 kW (190 hp) 3800 rpm | 15G |
| Code MU8 | OM 654 DE 20 LA 176 kW (239 hp) 3800 rpm | 15G |
| Code MX1 | Engine OM 622 DE 16 LA 65 kW (88 hp) 3800 rpm | 19E |
| Code MX2 | Engine OM 622 DE 16 LA 84 kW (114 hp) 3800 rpm | 19F |
| Code MX4 | Engine OM 622 DE 17 LA 75 kW (102 hp) 3800 rpm | 19F |
| Code MX8 | Engine OM 622 DE 17 LA 100 kW (136 hp) 3800 rpm | 19F |

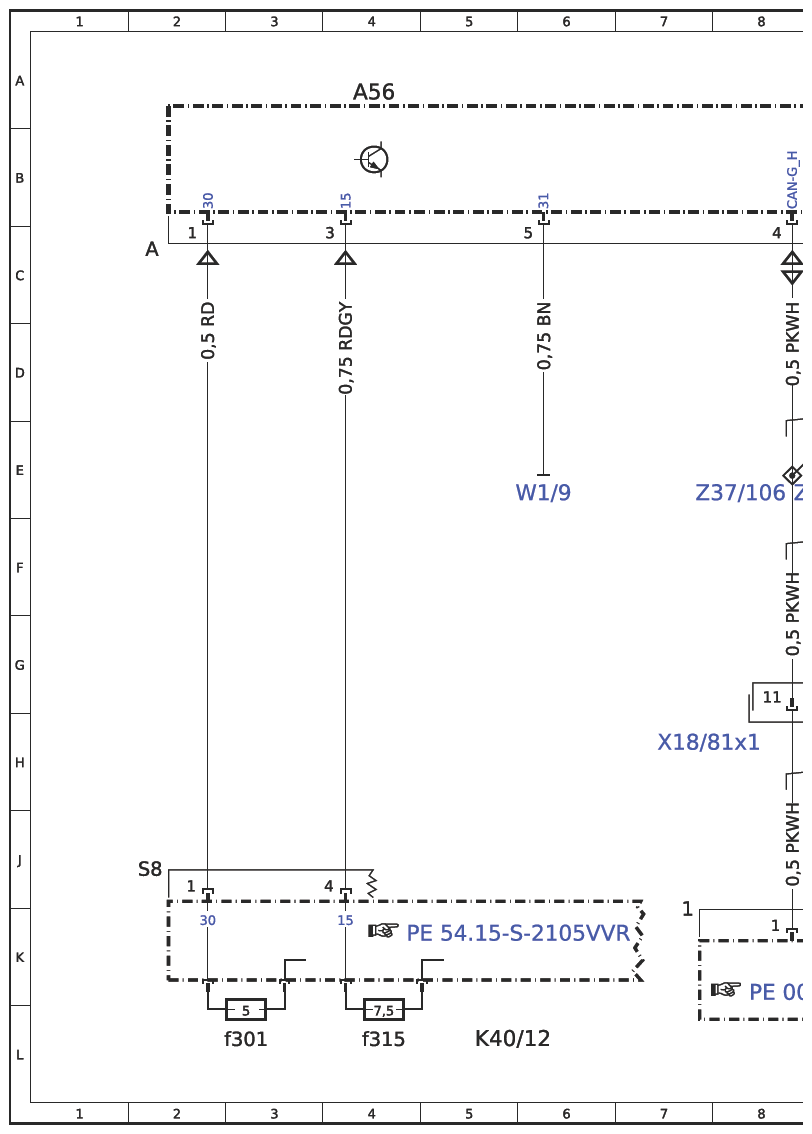

| K40/12 | Fuse and relay module, front passenger footwell | 5L |
| K40/12f301 | Fuse 301 | 3L |
| K40/12f315 | Fuse 315 | 4L |
| N73 | Electronic ignition lock (EZS) control unit | 12L |
| W1/9 | Right cockpit ground point | 6E |
| X18/81x1 | Left cockpit/main wiring harness electrical connector 1 | 8H |
| X18/82x4 | Right cockpit/main wiring harness electrical connector 4 | 17E |
| X18/82x8 | Right cockpit/main wiring harness electrical connector 8 | 24H |
| X304 | Front end CAN (CAN G) potential distributor electrical connector | 9L |
| X309x1 | Tachograph electrical connector | 16H |
| Z37/105 | Front-end CAN low end sleeve | 9E |
| Z37/106 | Front-end CAN high end sleeve | 8E |
