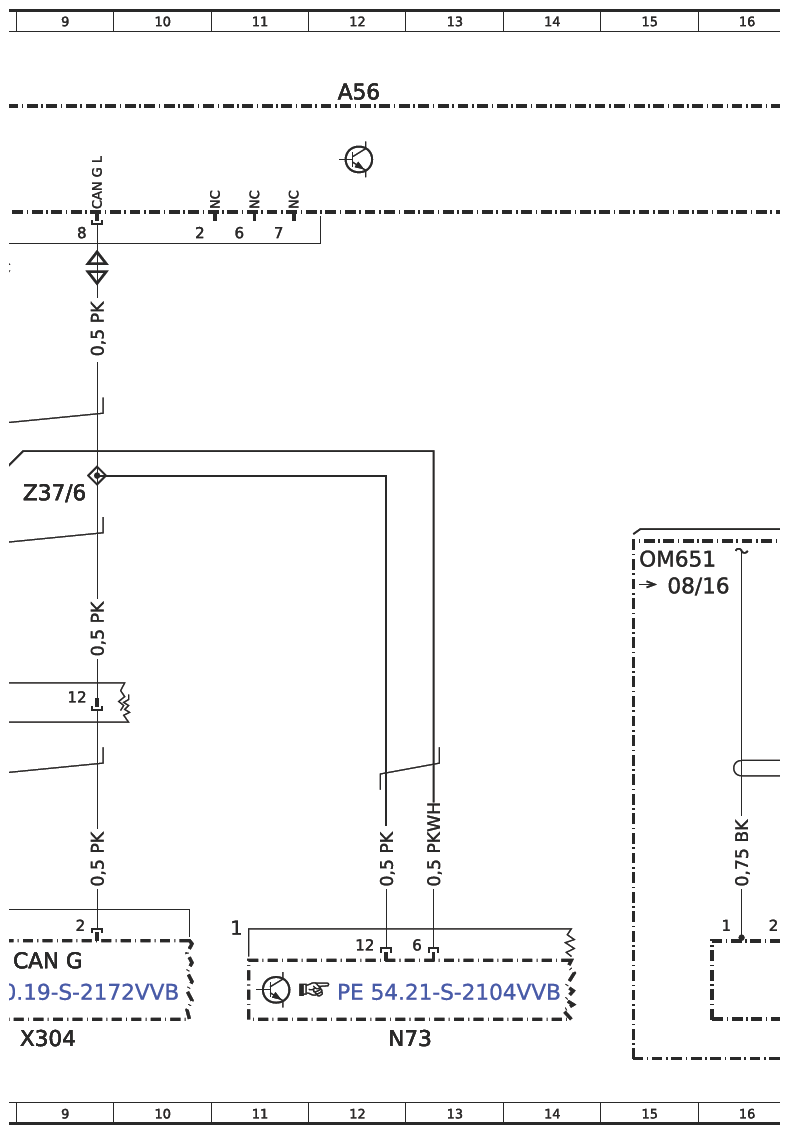

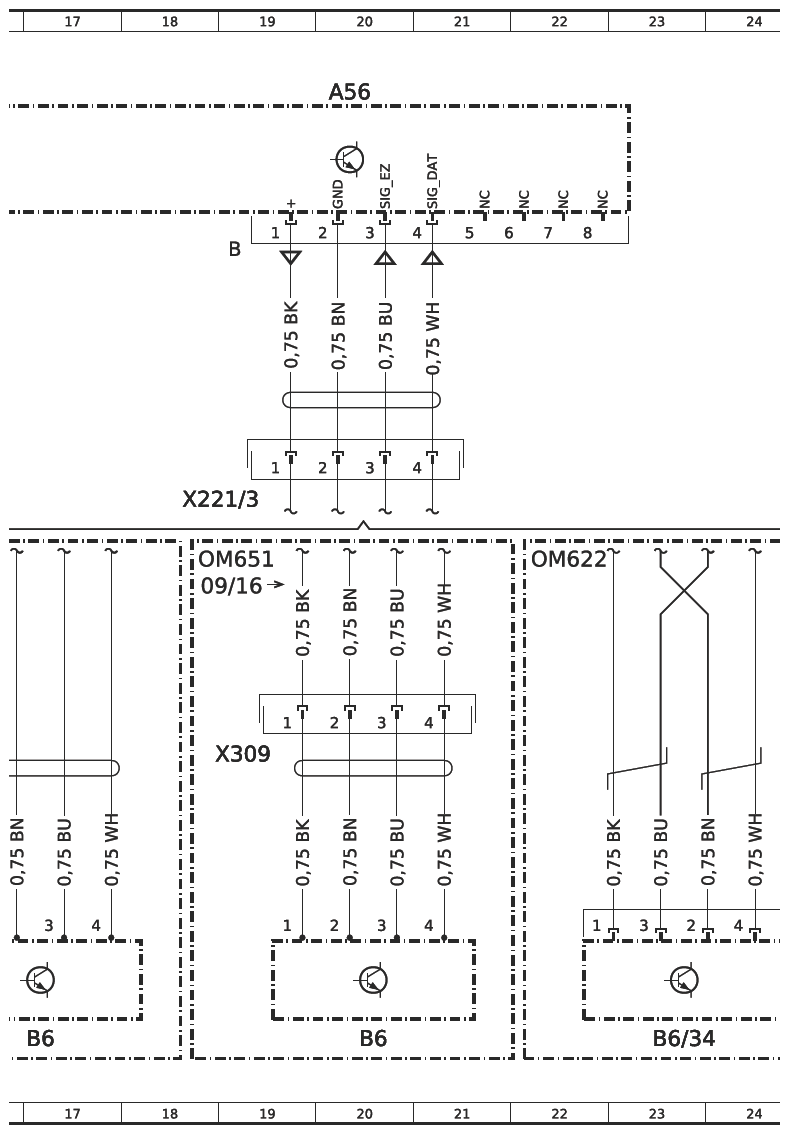

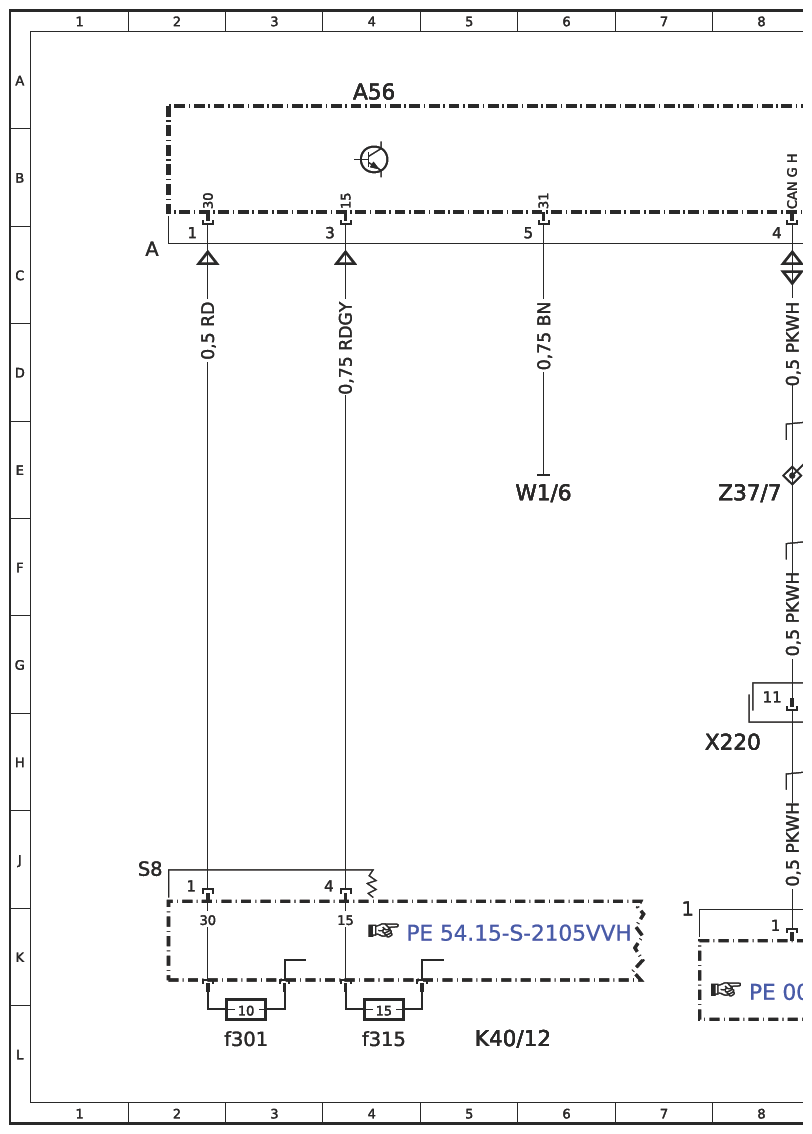

Wiring Diagram For Tachograph Control Unit - PE54.61-S-2101-97VVB
Model 447.6 with code JD1 (Digital tachograph) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) A56
Model 447.6 with code JV6 (Tachograph pre-installation kit) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) A56
Model 447.7 with code JD1 (Digital tachograph) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) A56
Model 447.7 with code JV6 (Tachograph pre-installation kit) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) A56
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A56 | Digital tachograph (DTCO) control unit | 4A |
| A56 | Digital tachograph (DTCO) control unit | 12A |
| A56 | Digital tachograph (DTCO) control unit | 20A |
| B6 | Vehicle speed Hall sensor | 17L |
| B6 | Vehicle speed Hall sensor | 20L |
| B6/34 | Manual transmission speed Hall sensor | 23L |
| CAN G | Front end CAN | 9K |
| K40/12 | Fuse and relay module, front passenger footwell | 5L |
| K40/12f301 | Fuse 301 | 3L |
| K40/12f315 | Fuse 315 | 4L |
| N73 | Electronic ignition lock (EZS) control unit | 12L |
| W1/6 | Cockpit ground point | 6E |
| X220 | Left main wiring harness/cockpit wiring harness electrical connector 1 | 8H |
| X221/3 | Right main wiring harness/cockpit wiring harness electrical connector 4 | 19E |
| X304 | Front end CAN (CAN G) potential distributor electrical connector | 9L |
| X309 | Speed sensor electrical connector | 19H |
| Z37/6 | Sensor CAN LOW connector sleeve | 9E |
| Z37/7 | Sensor CAN HIGH connector sleeve | 8E |
