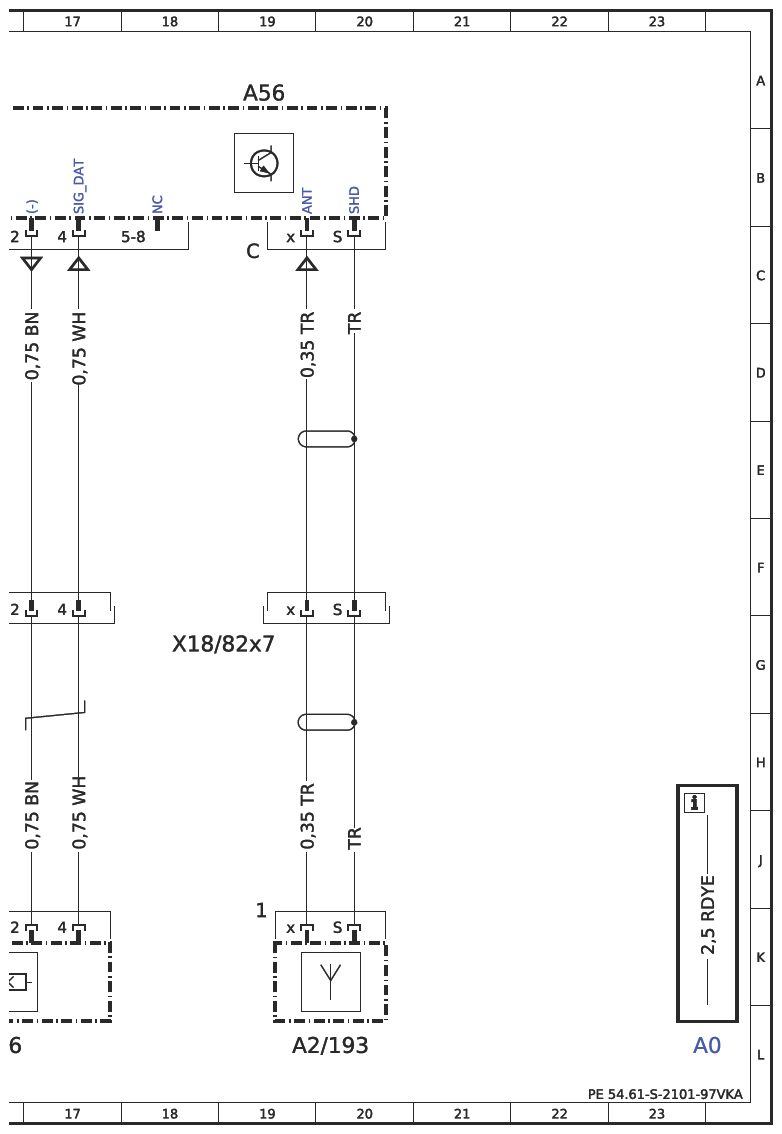

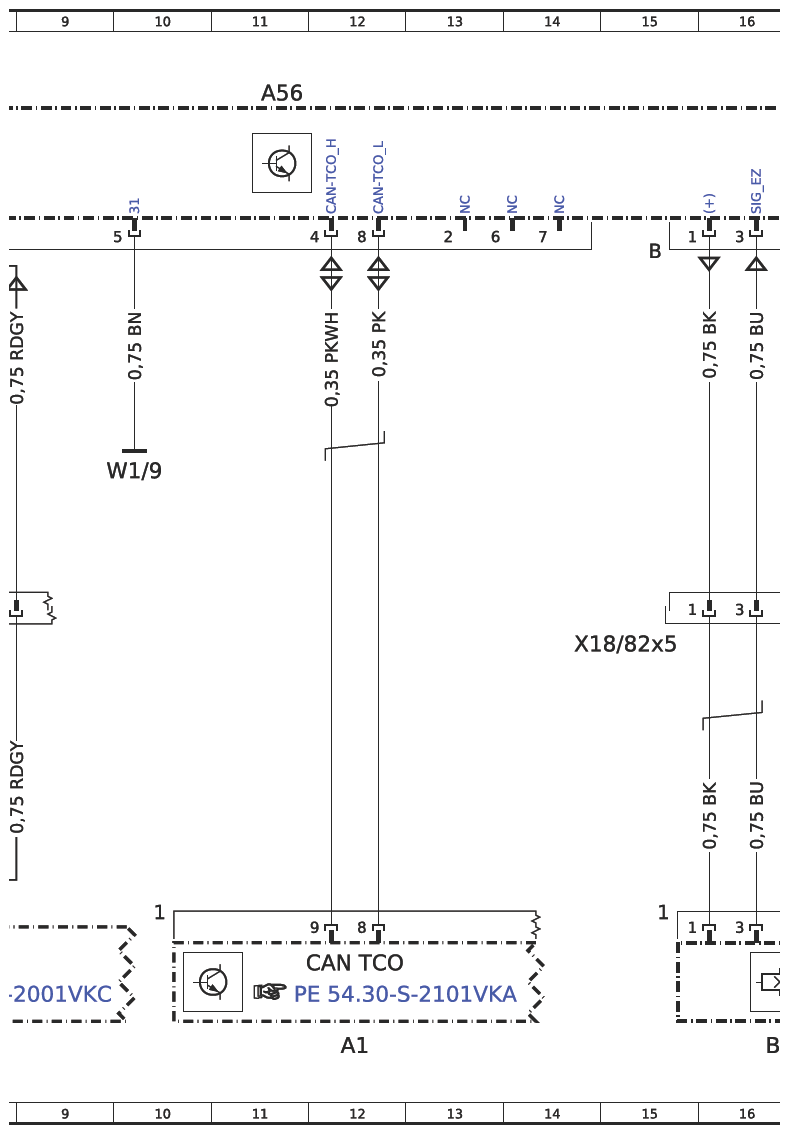

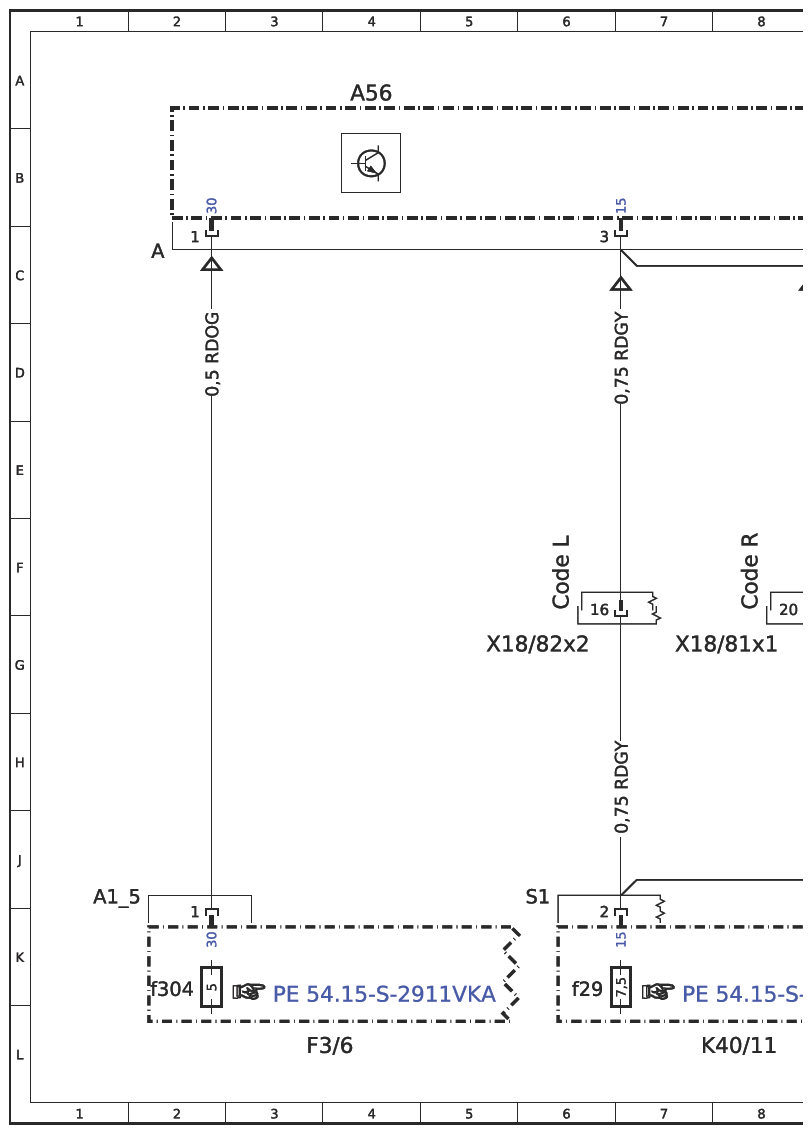

Wiring Diagram For Tachograph Control Unit - PE54.61-S-2101-97VKA
Model 447.6/7 with code J4V (Pre-installation of EU intelligent tachograph) with code XM7 (MOPF II) A56
Model 447.6/7 with code JD6 (Intelligent tachograph, EU) with code XM7 (MOPF II) A56
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| A1 | Instrument cluster | 12L |
| A2/193 | DSRC antenna | 19L |
| A56 | Digital tachograph (DTCO) control unit | 4A |
| A56 | Digital tachograph (DTCO) control unit | 19A |
| A56 | Digital tachograph (DTCO) control unit | 11A |
| B6 | Vehicle speed Hall sensor | 16L |
| CAN TCO | Tachograph CAN | 12K |
| Code L | Valid for left-hand drive vehicles | 6F |
| Code R | Valid for right-hand drive vehicles | 8F |
| F3/6 | Cockpit circuit 30/30t fuse box | 3L |
| F3/6f304 | Fuse 304 | 2K |
| K40/11 | Firewall fuse and relay module | 8L |
| K40/11f29 | Fuse 29 | 6K |
| W1/9 | Right cockpit ground point | 10E |
| X18/81x1 | Left cockpit/main wiring harness electrical connector 1 | 8G |
| X18/82x2 | Right cockpit/main wiring harness electrical connector 2 | 6G |
| X18/82x5 | Right cockpit/main wiring harness electrical connector 5 | 15G |
| X18/82x7 | Right cockpit/main wiring harness electrical connector 7 | 19G |
