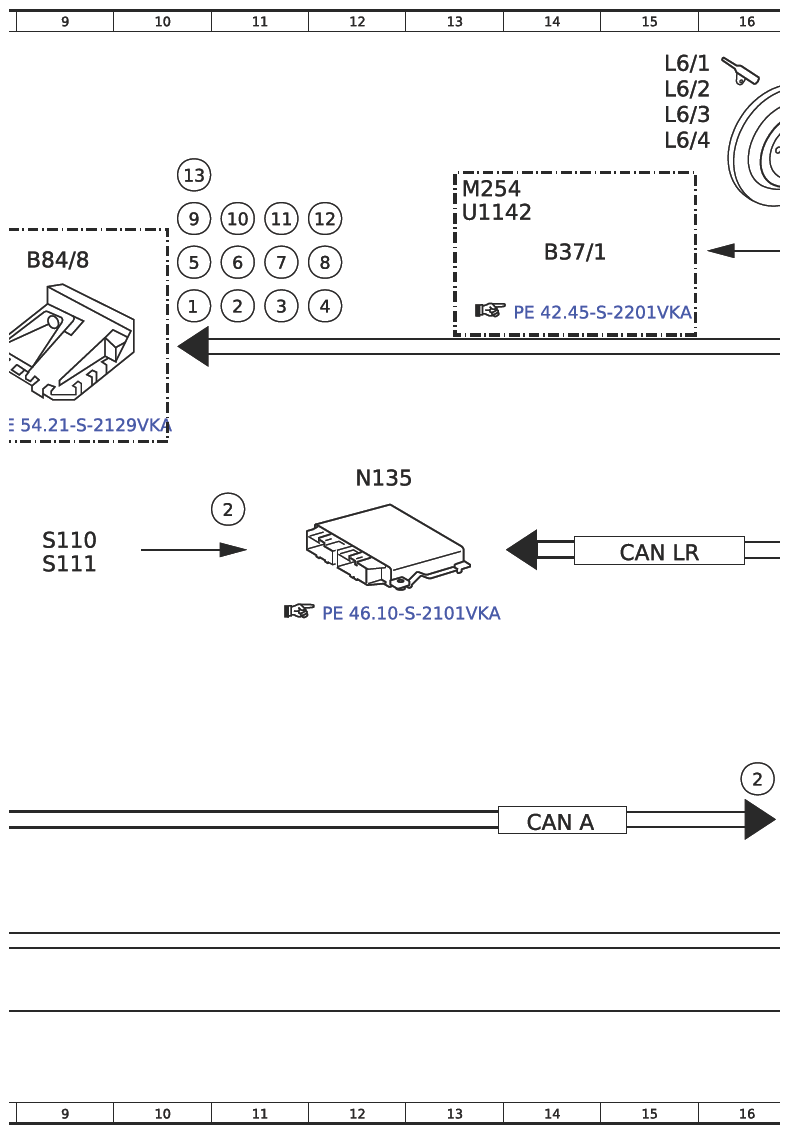

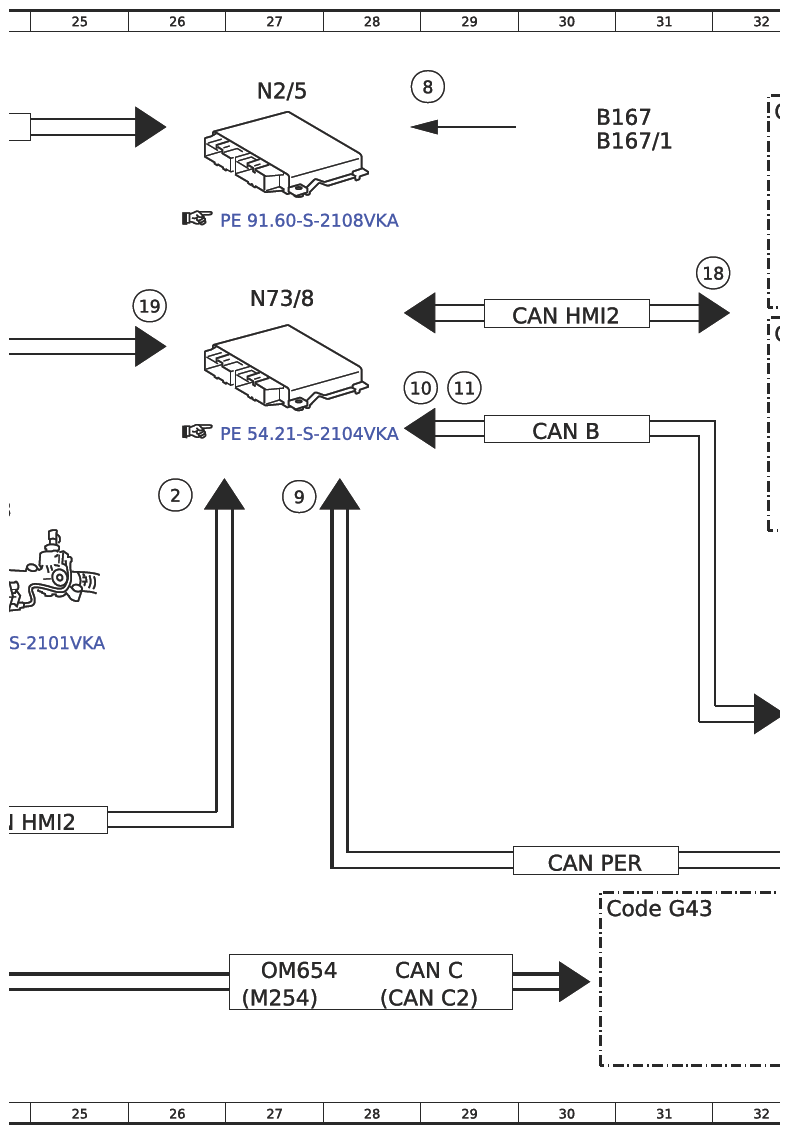

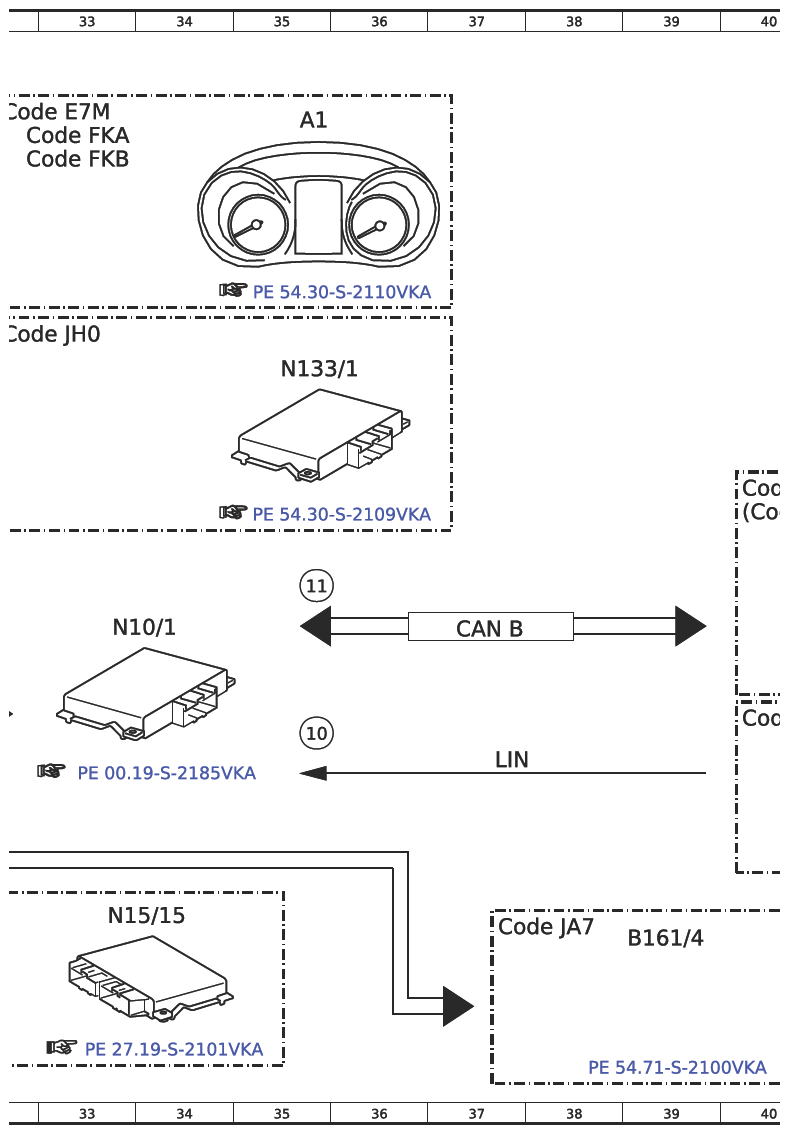

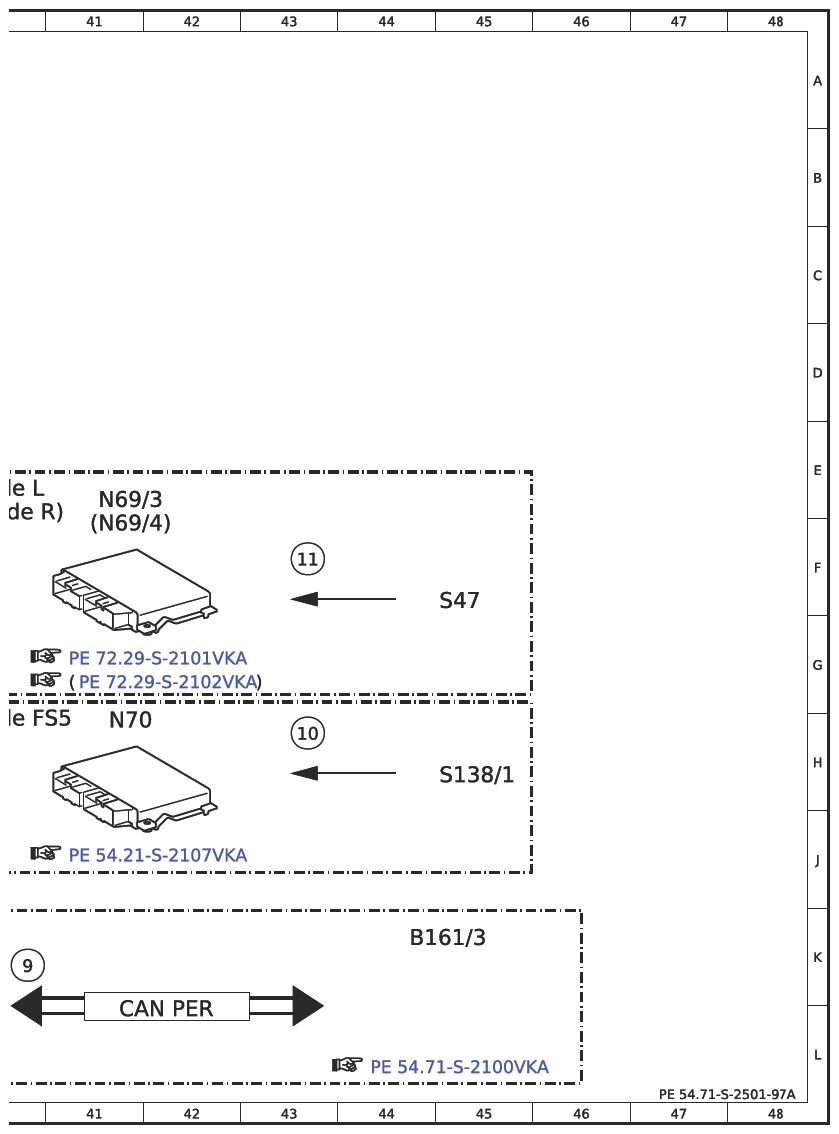

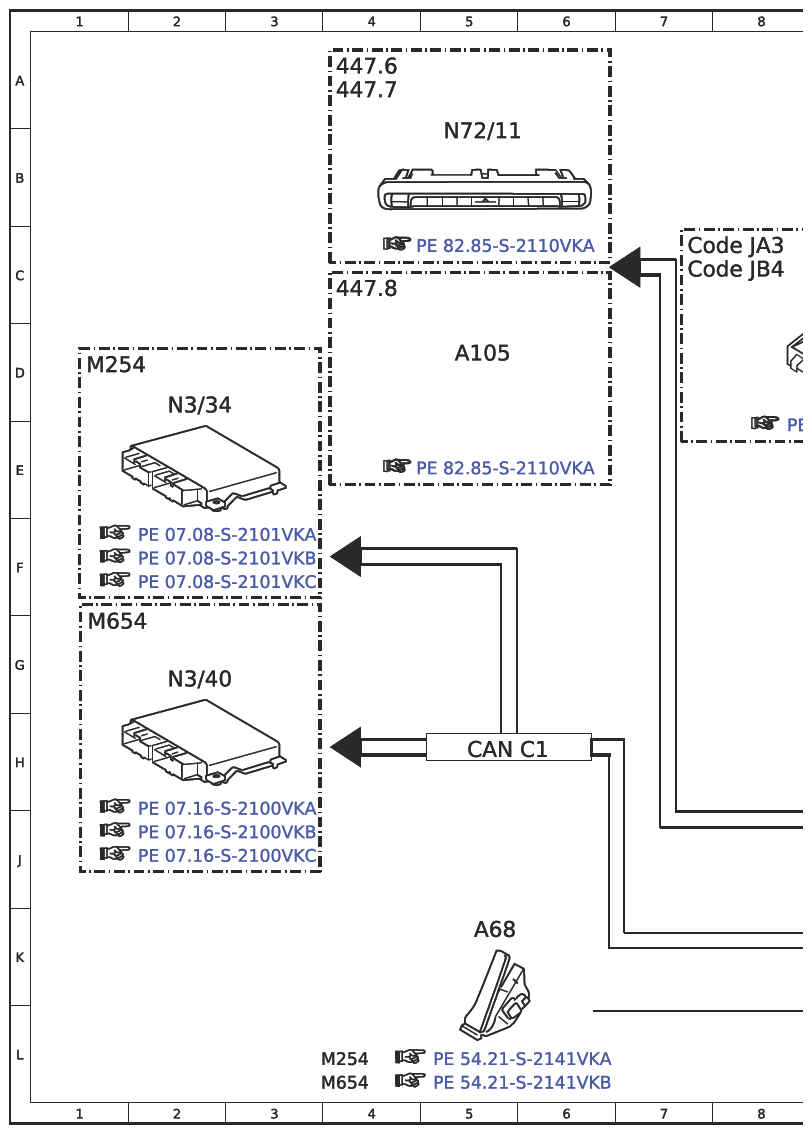

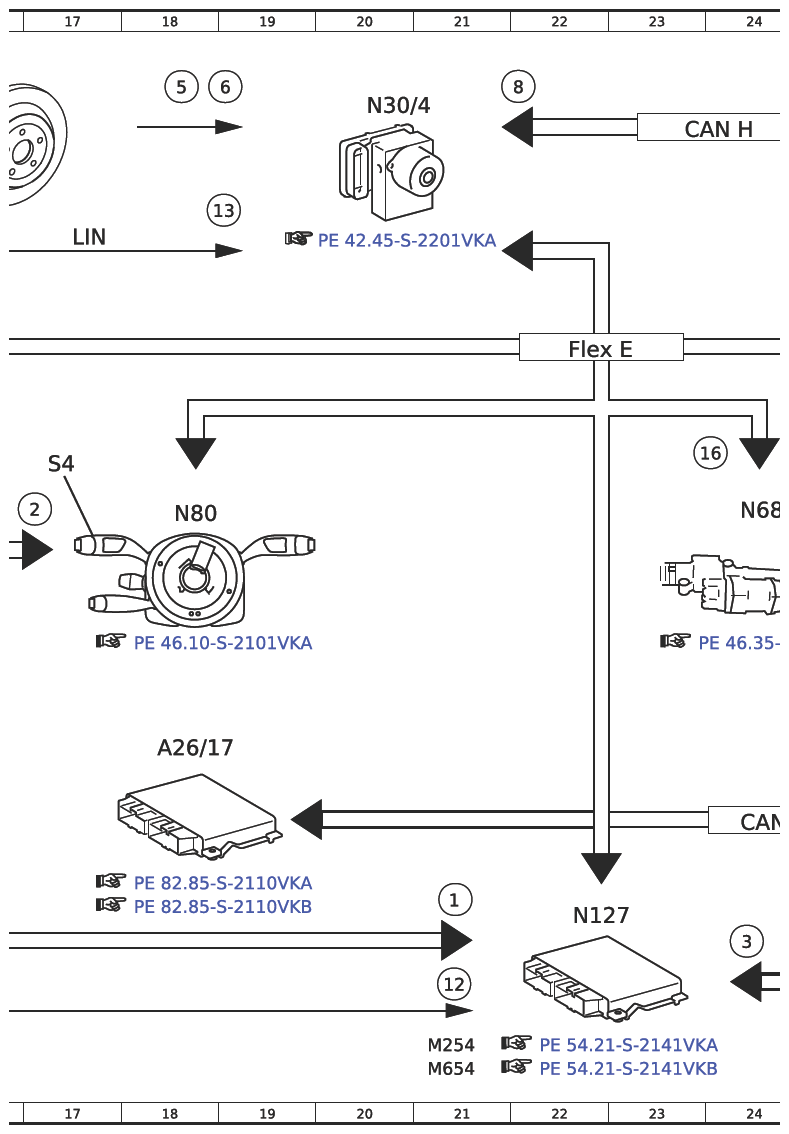

Track Guidance, Function Schematic - PE54.71-S-2501-97A
Model 447 with code XM7 (MOPF II)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 21J |
| 1 | Engine running, signal | 10C |
| 10 | Interior lamp, actuation | 28D |
| 10 | Interior lamp, actuation | 35H |
| 10 | Interior lamp, actuation | 43H |
| 10 | Interior lamp, actuation | 11B |
| 11 | Outside mirror, status | 43F |
| 11 | Outside mirror, status | 35F |
| 11 | Outside mirror, status | 11B |
| 11 | Outside mirror, status | 29D |
| 12 | Accelerator pedal sensor, signal | 21K |
| 12 | Accelerator pedal sensor, signal | 12B |
| 13 | Brake pedal, status | 18B |
| 13 | Brake pedal, status | 10B |
| 16 | Electric power steering actuator motor, actuation | 23E |
| 18 | Display, message | 31C |
| 19 | Display, message | 26C |
| 2 | Lane Keeping Assist mode, request | 17E |
| 2 | Lane Keeping Assist mode, request | 11E |
| 2 | Lane Keeping Assist mode, request | 16H |
| 2 | Lane Keeping Assist mode, request | 26E |
| 2 | Lane Keeping Assist mode, request | 11C |
| 3 | Gear range, status | 24K |
| 3 | Gear range, status | 11C |
| 4 | Turn signal lamp, status | 12C |
| 5 | Wheel rotation direction, signal | 18A |
| 5 | Wheel rotation direction, signal | 10C |
| 6 | Wheel speed, signal | 19A |
| 6 | Wheel speed, signal | 11C |
| 7 | Steering wheel angle, signal | 11C |
| 8 | Speed, turn rate and lateral acceleration, signal | 29A |
| 8 | Speed, turn rate and lateral acceleration, signal | 22A |
| 8 | Speed, turn rate and lateral acceleration, signal | 12C |
| 9 | Blind spot assist, status | 27E |
| 9 | Blind spot assist, status | 40K |
| 9 | Blind spot assist, status | 10B |
| A1 | Instrument cluster | 35A |
| A105 | Touchpad | 5D |
| A26/17 | Head unit | 18H |
| A68 | Accelerator pedal module | 5K |
| B161/3 | Left rear Blind Spot Assist radar sensor | 44K |
| B161/4 | Right rear Blind Spot Assist radar sensor | 39K |
| B167 | Left frontal acceleration sensor | 30A |
| B167/1 | Right frontal acceleration sensor | 30B |
| B37/1 | Pedal angle sensor | 14C |
| B84/8 | Multifunction camera (MFK) control unit | 9C |
| CAN A | Telematics CAN | 14J |
| CAN B | Interior CAN | 37G |
| CAN B | Interior CAN | 30E |
| CAN C | Drive train CAN | 28K |
| CAN C1 | Engine CAN | 5H |
| CAN C2 | Powertrain CAN 2 | 28K |
| CAN H | Vehicle dynamics CAN | 24B |
| CAN HMI2 | User interface CAN 2 | 30C |
| CAN HMI2 | User interface CAN 2 | 24J |
| CAN LR | Steering Wheel CAN | 15F |
| CAN PER | Peripherals CAN | 30J |
| CAN PER | Peripherals CAN | 42L |
| Code E7M | MBUX multimedia system | 32A |
| Code FKA | Panel van | 32B |
| Code FKB | Vito Mixto and Tourer | 32B |
| Code FS5 | Illuminated mirrors for sun visors | 40H |
| Code G43 | 9G-TRONIC | 30K |
| Code JA7 | Blind spot assist | 37K |
| Code JH0 | Display package | 32D |
| Code L | Valid for left-hand drive vehicles | 40E |
| Code R | Valid for right-hand drive vehicles | 40F |
| Flex E | Chassis FlexRay | 22D |
| L6/1 | Left front axle rpm sensor | 15A |
| L6/2 | Right front axle rpm sensor | 15A |
| L6/3 | Left rear axle rpm sensor | 15A |
| L6/4 | Right rear axle rpm sensor | 15B |
| LIN | Local Interconnect Network | 17C |
| LIN | Local Interconnect Network | 37H |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 33G |
| N127 | Drivetrain control unit | 22K |
| N133/1 | Instrument cluster control unit | 35D |
| N135 | Steering wheel electronics | 12E |
| N15/15 | Fully integrated transmission control (VGS) electric controller unit | 33K |
| N2/5 | Supplemental restraint system (SRS) control unit | 27A |
| N3/34 | ME-SFI [ME] control unit | 2D |
| N3/40 | CDI control unit | 2G |
| N30/4 | Electronic Stability Program (ESP) control unit | 20A |
| N68 | Electrical power steering (ES) control unit | 24E |
| N69/3 | Left front door control unit | 41E |
| N69/4 | Right front door control unit | 41F |
| N70 | Overhead control panel (OCP [DBE]) control unit | 41H |
| N72/11 | Head unit control panel control unit | 5B |
| N73/8 | Electronic ignition lock (EZS) control unit | 27C |
| N80 | Steering column tube module (MRM) control unit | 18F |
| S110 | Left multifunction steering wheel button group | 9F |
| S111 | Right multifunction steering wheel button group | 9F |
| S138/1 | Left sun visor illumination switch | 45H |
| S4 | Combination switch | 17E |
| S47 | Driver door control panel | 45F |
| U1142 | Valid for electric vehicle | 13B |
