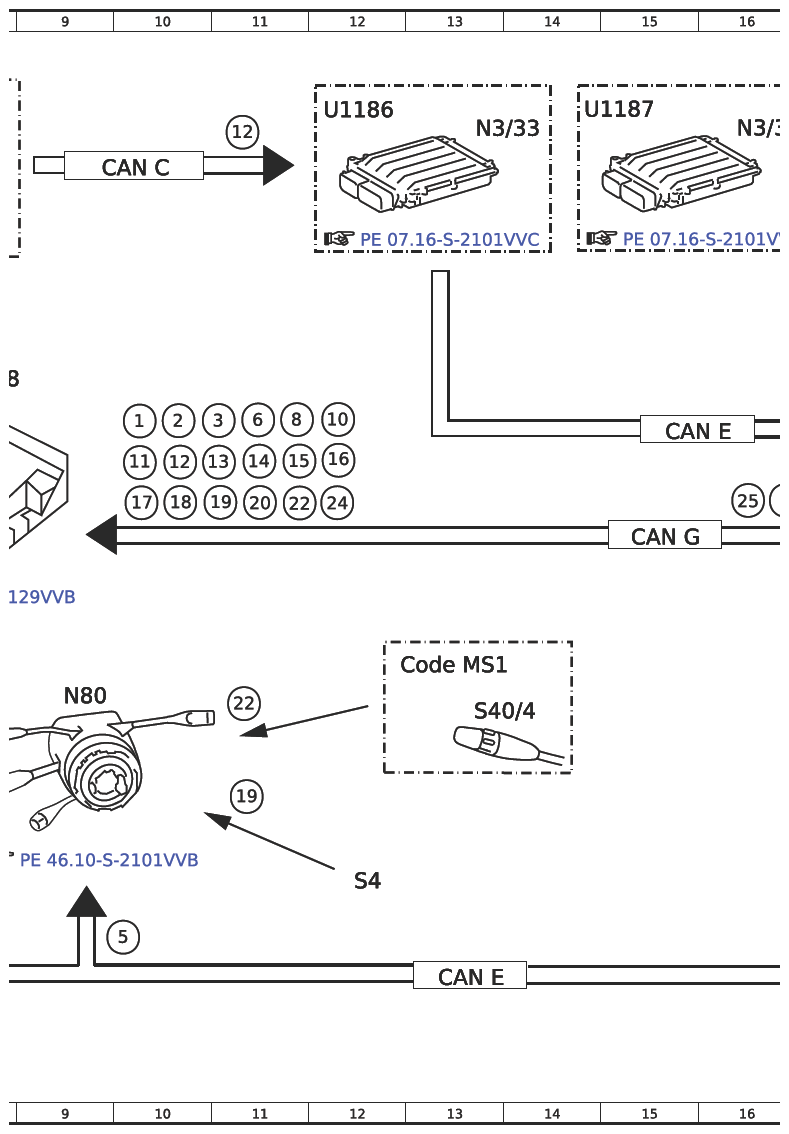

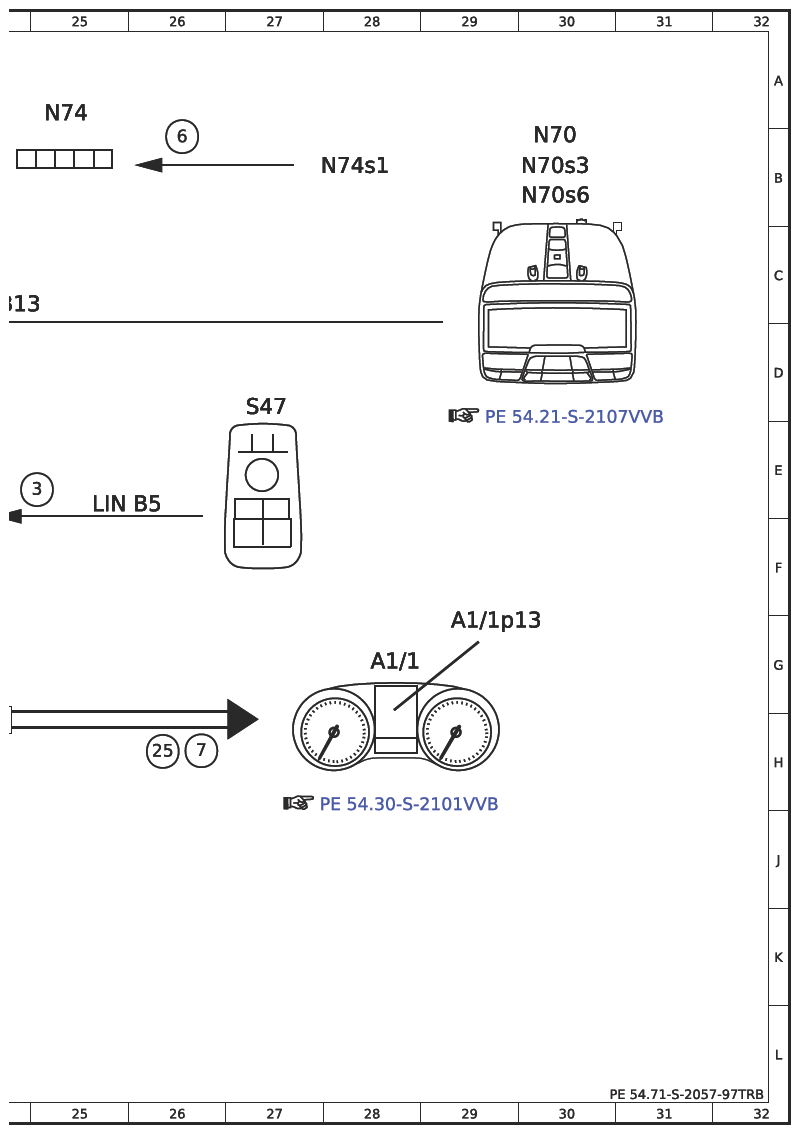

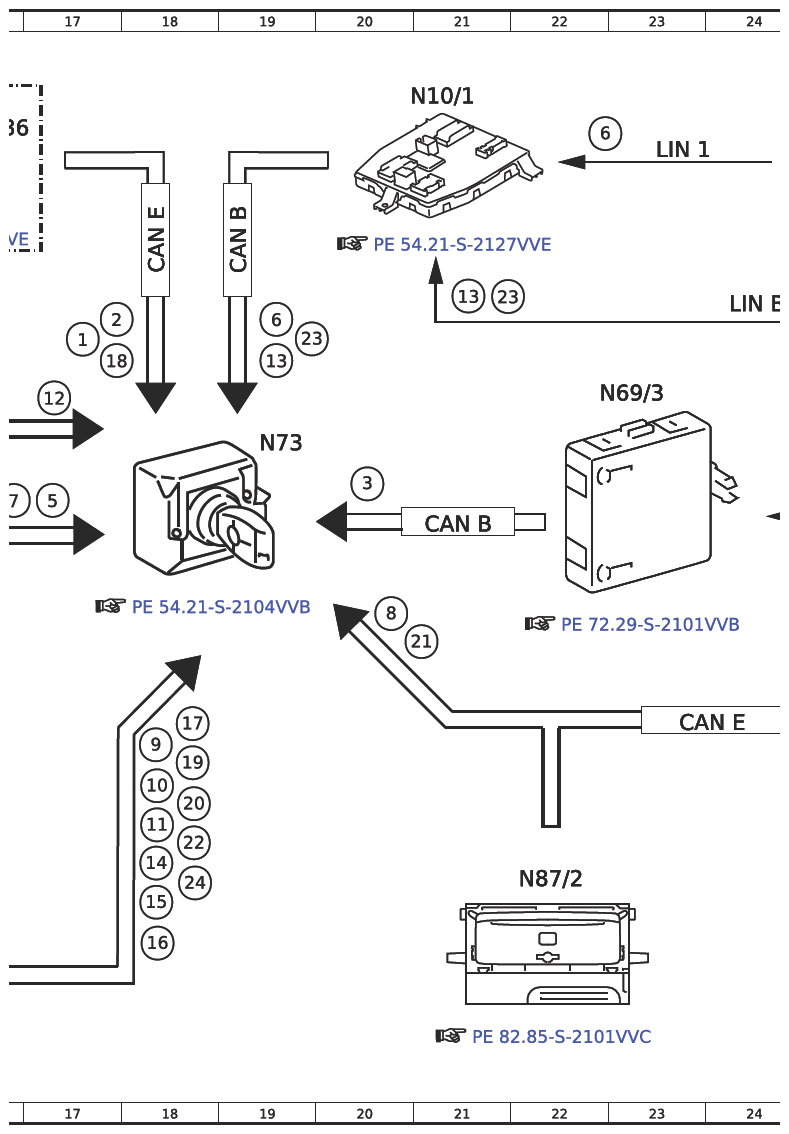

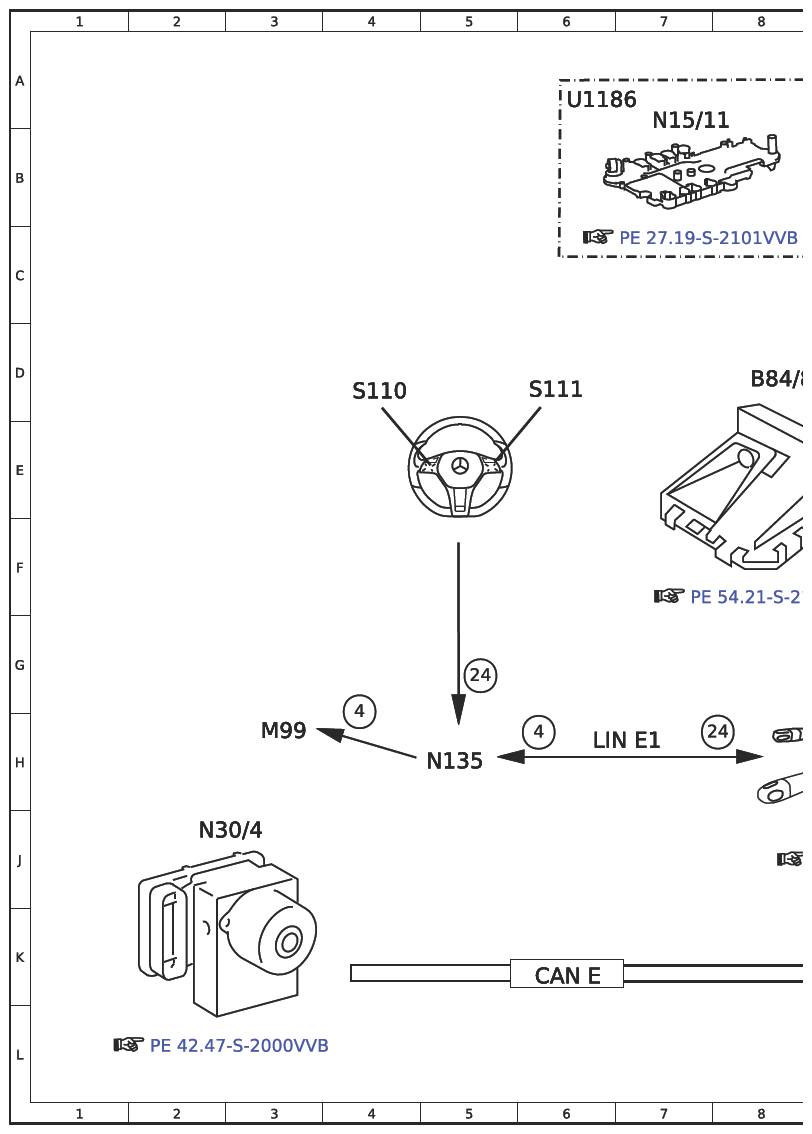

Electrical Function Schematic For Lane Keeping Assist - PE54.71-S-2057-97TRB
Model 447.6/7 with code JW5 (Lane keeping assist) except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 17C |
| 1 | Engine running, signal | 10D |
| 10 | Vehicle speed, signal | 12E |
| 10 | Vehicle speed, signal | 18H |
| 11 | Wheel rotation direction, signal | 10E |
| 11 | Wheel rotation direction, signal | 18J |
| 12 | Gear range, status | 10E |
| 12 | Gear range, status | 17D |
| 12 | Gear range, status | 11B |
| 13 | Reading lamp button, status | 21C |
| 13 | Reading lamp button, status | 19D |
| 13 | Reading lamp button, status | 11E |
| 14 | ESP®, status | 11E |
| 14 | ESP®, status | 18J |
| 15 | Steering wheel angle, signal | 18J |
| 15 | Steering wheel angle, signal | 12E |
| 16 | Steering wheel velocity, signal | 12E |
| 16 | Steering wheel velocity, signal | 18K |
| 17 | Brake pedal, status | 10E |
| 17 | Brake pedal, status | 18H |
| 18 | Accelerator pedal position, signal | 10E |
| 18 | Accelerator pedal position, signal | 17D |
| 19 | Combination switch, status | 11H |
| 19 | Combination switch, status | 11E |
| 19 | Combination switch, status | 18H |
| 2 | Drivetrain operational, signal | 10E |
| 2 | Drivetrain operational, signal | 18C |
| 20 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 18H |
| 20 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 11E |
| 21 | Operation, signal | 20G |
| 22 | CRUISE CONTROL lever, signal | 22E |
| 22 | CRUISE CONTROL lever, signal | 18J |
| 22 | CRUISE CONTROL lever, signal | 11G |
| 23 | Automatic function switch, status | 21C |
| 23 | Automatic function switch, status | 19C |
| 24 | Multifunction steering wheel button group, signal | 12E |
| 24 | Multifunction steering wheel button group, signal | 8H |
| 24 | Multifunction steering wheel button group, signal | 18J |
| 24 | Multifunction steering wheel button group, signal | 5G |
| 25 | Lane Keeping Assist warning, request | 16E |
| 25 | Lane Keeping Assist warning, request | 26H |
| 3 | Driver-side switch group, status | 20E |
| 3 | Driver-side switch group, status | 25E |
| 3 | Driver-side switch group, status | 11D |
| 4 | Steering wheel vibration motor, actuation | 6H |
| 4 | Steering wheel vibration motor, actuation | 4H |
| 5 | Steering wheel vibration motor, request | 10K |
| 5 | Steering wheel vibration motor, request | 17E |
| 6 | Lane Keeping Assist button, status | 19D |
| 6 | Lane Keeping Assist button, status | 22B |
| 6 | Lane Keeping Assist button, status | 11E |
| 6 | Lane Keeping Assist button, status | 26B |
| 7 | Lane Keeping Assist, status | 26H |
| 7 | Lane Keeping Assist, status | 16E |
| 8 | Lane Keeping Assist mode, request | 20G |
| 8 | Lane Keeping Assist mode, request | 11D |
| 9 | Wheel speed, signal | 18H |
| A1/1 | Instrument cluster (KI) control unit | 28G |
| A1/1p13 | Multifunction display | 29G |
| B84/8 | Multifunction camera (MFK) control unit | 8D |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 19C |
| CAN C | Drive train CAN | 10B |
| CAN E | Chassis CAN | 13K |
| CAN E | Chassis CAN | 18C |
| CAN E | Chassis CAN | 23H |
| CAN E | Chassis CAN | 6K |
| CAN E | Chassis CAN | 15E |
| CAN G | Front end CAN | 15F |
| Code MS1 | Cruise control | 12G |
| LIN 1 | Instrument panel LIN | 23B |
| LIN B13 | Roof LIN | 24C |
| LIN B5 | Left front door LIN | 25E |
| LIN E1 | Steering LIN | 6H |
| M99 | Steering wheel vibration motor | 3H |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 21A |
| N135 | Steering wheel electronics | 5H |
| N15/11 | Fully integrated transmission control (VGS) control unit | 7A |
| N3/33 | CDI control unit | 13B |
| N3/36 | CDI control unit | 16B |
| N30/4 | Electronic Stability Program (ESP) control unit | 2J |
| N69/3 | Left front door control unit | 23D |
| N70 | Overhead control panel (OCP [DBE]) control unit | 30B |
| N70s3 | Interior lamp automatic function button | 30B |
| N70s6 | Left front reading lamp button | 30B |
| N73 | Electronic ignition lock (EZS) control unit | 19E |
| N74 | Driver assistance systems operating panel control unit | 25A |
| N74s1 | Lane Keeping Assist button | 27B |
| N80 | Steering column tube module (MRM) control unit | 9G |
| N87/2 | Radio (Audio) | 22J |
| S110 | Left multifunction steering wheel button group | 4D |
| S111 | Right multifunction steering wheel button group | 6D |
| S4 | Combination switch | 12J |
| S40/4 | Cruise control lever | 13H |
| S47 | Left front door control panel | 27D |
| U1186 | - | 6A |
| U1186 | - | 12A |
| U1187 | - | 15A |
