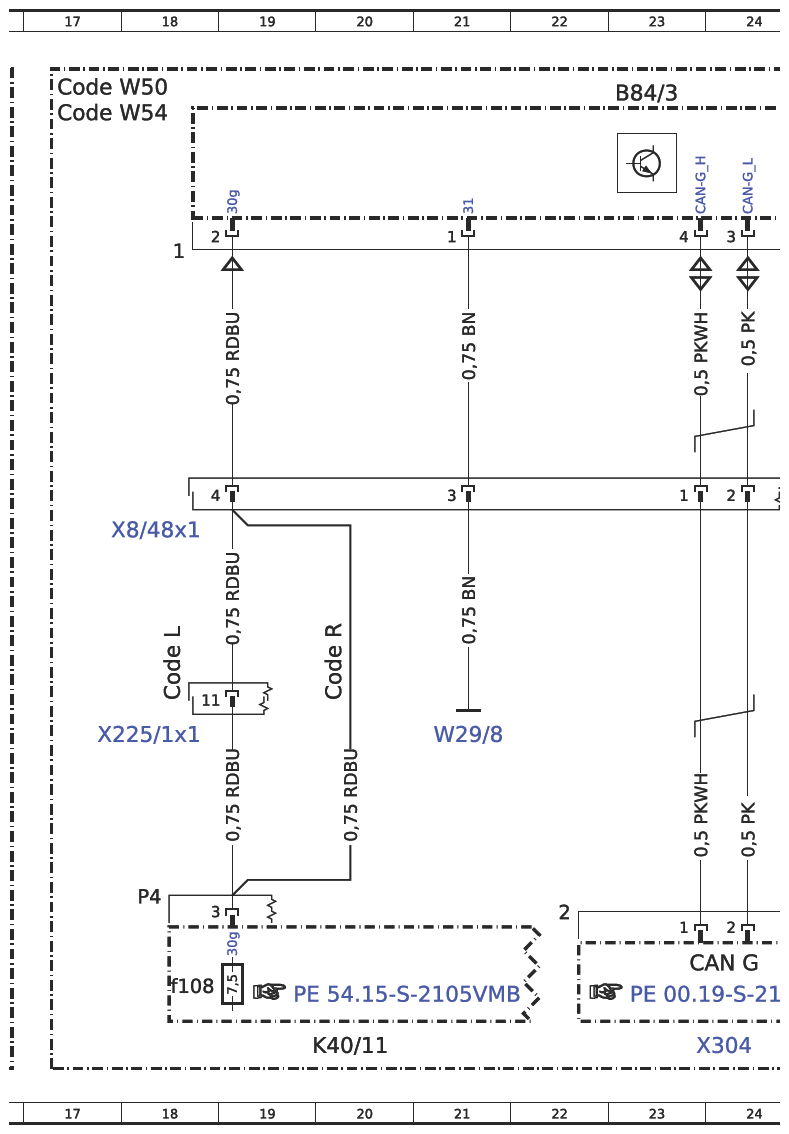

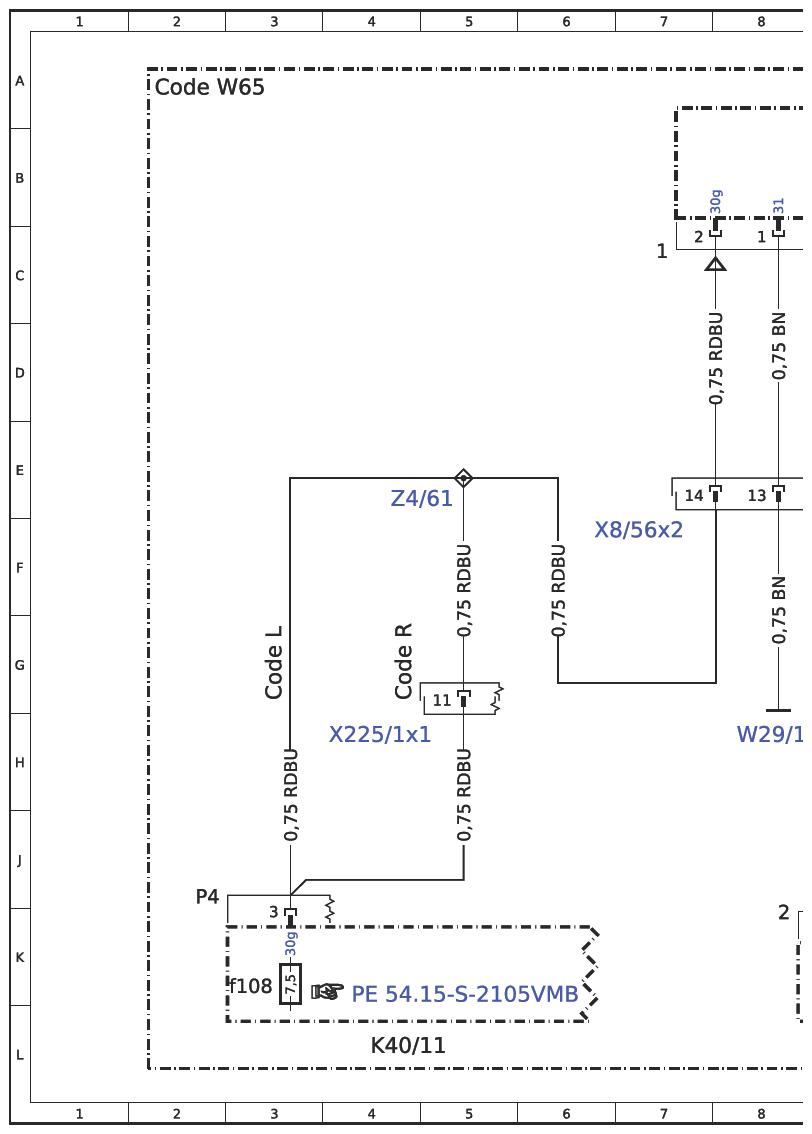

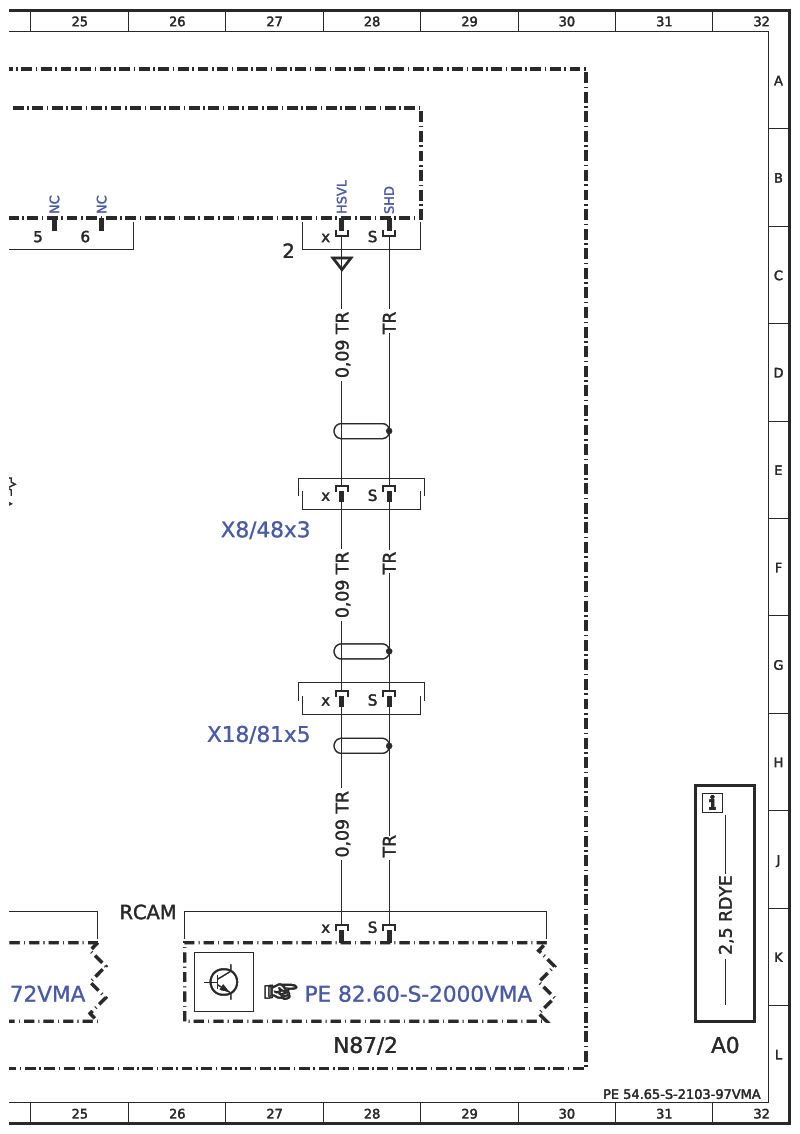

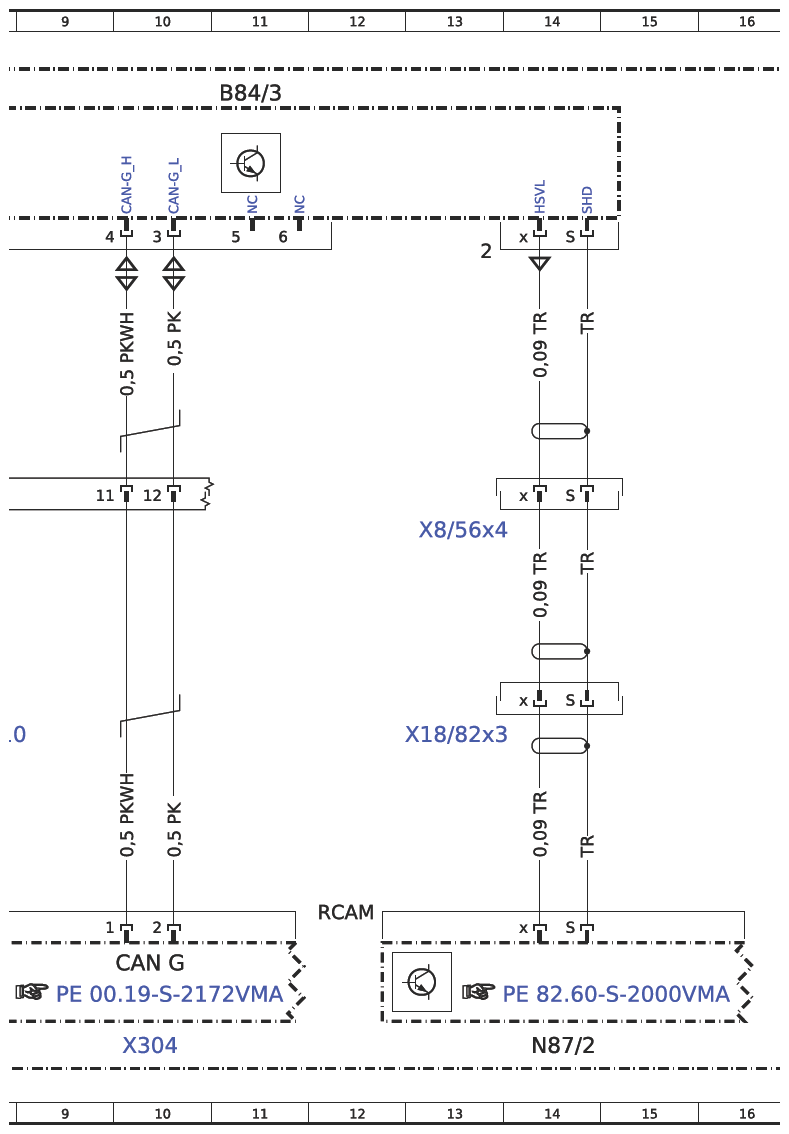

(Wiring Diagram Of Reversing Camera - PE54.65-S-2103-97VMA)
Model 447.6/7 up to 6/30/20 with code FR8 (Rear view camera) with code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) B84/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B84/3 | Reversing camera (RFK) control unit | 11A |
| B84/3 | Reversing camera (RFK) control unit | 23A |
| CAN G | Front end CAN | 10K |
| CAN G | Front end CAN | 24K |
| Code L | Valid for left-hand drive vehicles | 3G |
| Code L | Valid for left-hand drive vehicles | 18G |
| Code R | Valid for right-hand drive vehicles | 20G |
| Code R | Valid for right-hand drive vehicles | 4G |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 17A |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 17A |
| Code W65 | Liftgate | 2A |
| K40/11 | Firewall fuse and relay module | 4L |
| K40/11 | Firewall fuse and relay module | 20L |
| K40/11f108 | Fuse 108 | 3K |
| K40/11f108 | Fuse 108 | 18K |
| N87/2 | Radio (Audio) | 14L |
| N87/2 | Radio (Audio) | 28L |
| W29/10 | Right D-pillar ground point | 8H |
| W29/8 | Left D-pillar ground point | 21H |
| X18/81x5 | Left cockpit/main wiring harness electrical connector 5 | 27H |
| X18/82x3 | Right cockpit/main wiring harness electrical connector 3 | 13H |
| X225/1x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 4H |
| X225/1x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 18H |
| X304 | Front end CAN (CAN G) potential distributor electrical connector | 10L |
| X304 | Front end CAN (CAN G) potential distributor electrical connector | 24L |
| X8/48x1 | Left rear-end door electrical connector 1 | 18F |
| X8/48x3 | Left rear-end door electrical connector 3 | 27F |
| X8/56x2 | Right liftgate electrical connector 2 | 7F |
| X8/56x4 | Right liftgate electrical connector 4 | 13F |
| Z4/61 | Reversing camera tml. 30g end sleeve | 5E |
