Wiring Diagram For Multifunction Camera - PE54.21-S-2129-97VVD
Model 447.6 with Code JW5 (Lane keeping assist) with Code LG2 (LED Intelligent Light System) with Code XM0 (Facelift) except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM7 (MOPF II) B84/8
Model 447.7 with Code JW5 (Lane keeping assist) with Code LG2 (LED Intelligent Light System) with Code XM0 (Facelift) except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) B84/8

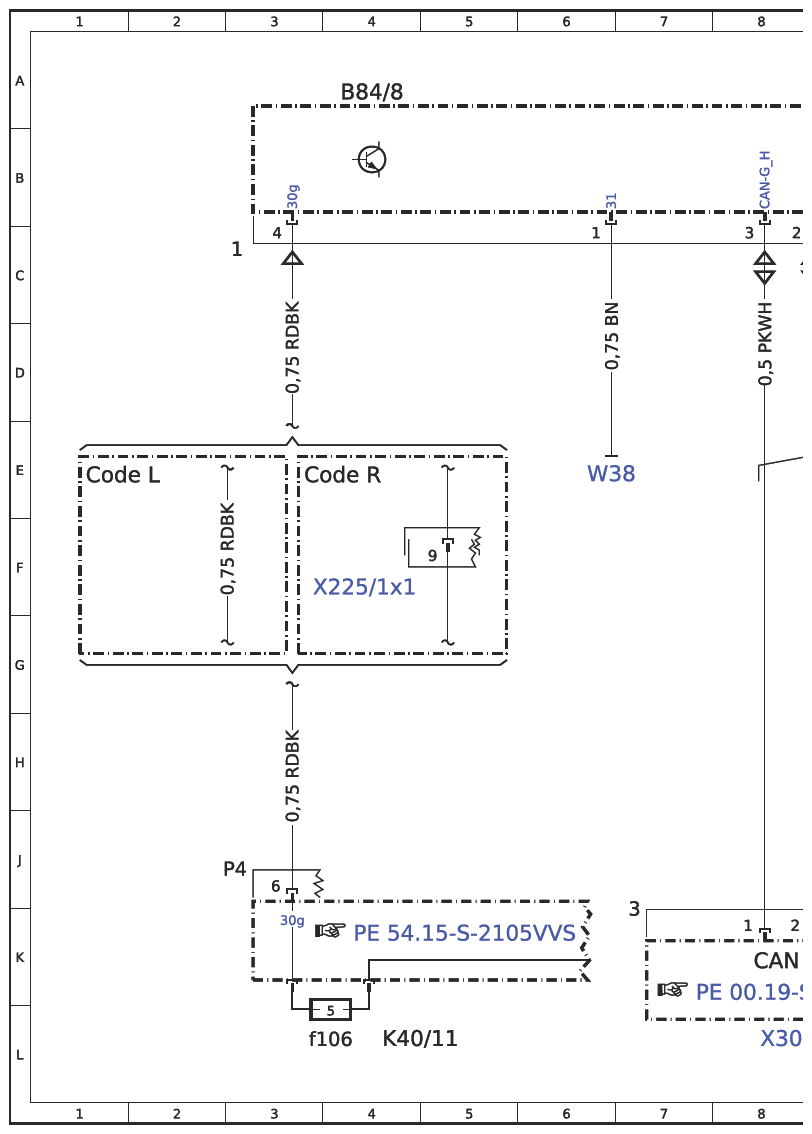

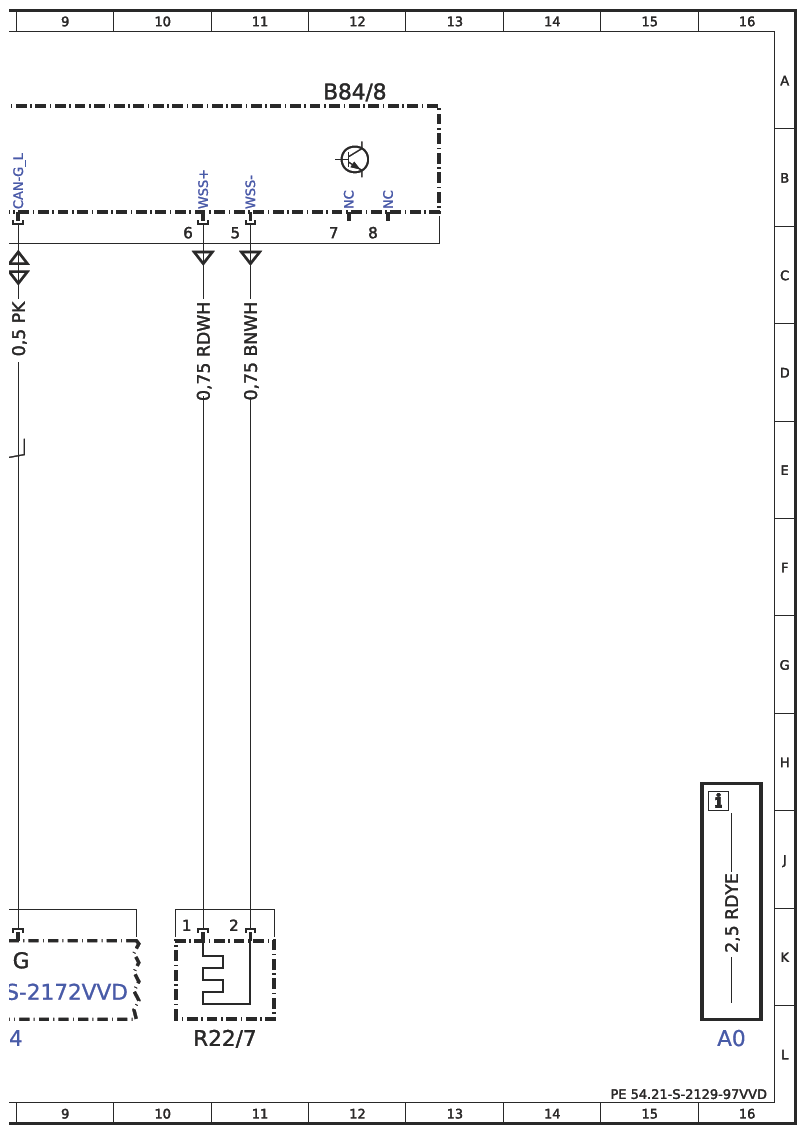

| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 16L |
| B84/8 | Multifunction camera (MFK) control unit | 4A |
| B84/8 | Multifunction camera (MFK) control unit | 12A |
| CAN G | Front end CAN | 8K |
| Code L | Valid for left-hand drive vehicles | 1E |
| Code R | Valid for right-hand drive vehicles | 3E |
| K40/11 | Firewall fuse and relay module | 4L |
| K40/11f106 | Fuse 106 | 3L |
| R22/7 | Multifunction camera windshield heater field | 11L |
| W38 | Roof frame ground point 1 | 6E |
| X225/1 x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 4F |
| X304 | Front end CAN (CAN G) potential distributor electrical connector | 8L |
