Wiring Diagram For Multifunction Camera - PE54.21-S-2129-97VVB
Model 447.6 with Code JW5 (Lane keeping assist) except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) except Code ZL3 (National version for Latin America) B84/8
Model 447.6 with Code LG2 (LED Intelligent Light System) except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) except Code ZL3 (National version for Latin America) B84/8
Model 447.7 with Code JW5 (Lane keeping assist) except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) except Code ZL3 (National version for Latin America) B84/8
Model 447.7 with Code LG2 (LED Intelligent Light System) except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) except Code ZL3 (National version for Latin America) B84/8

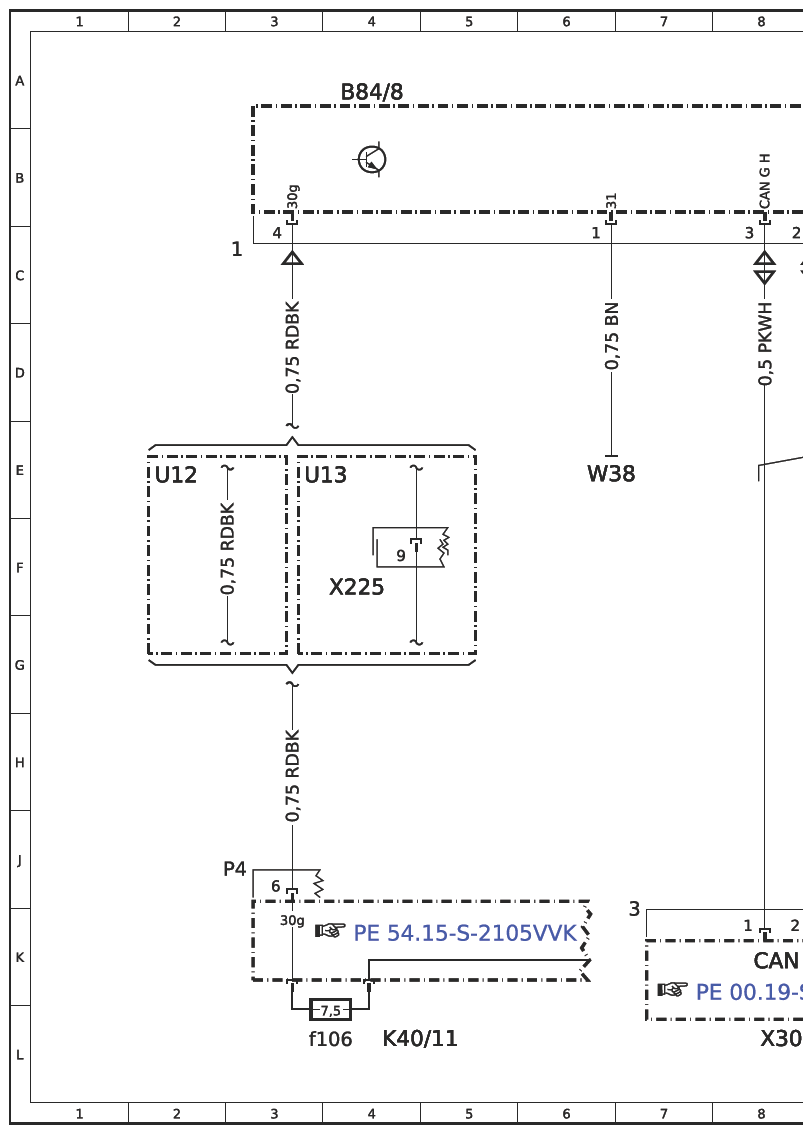

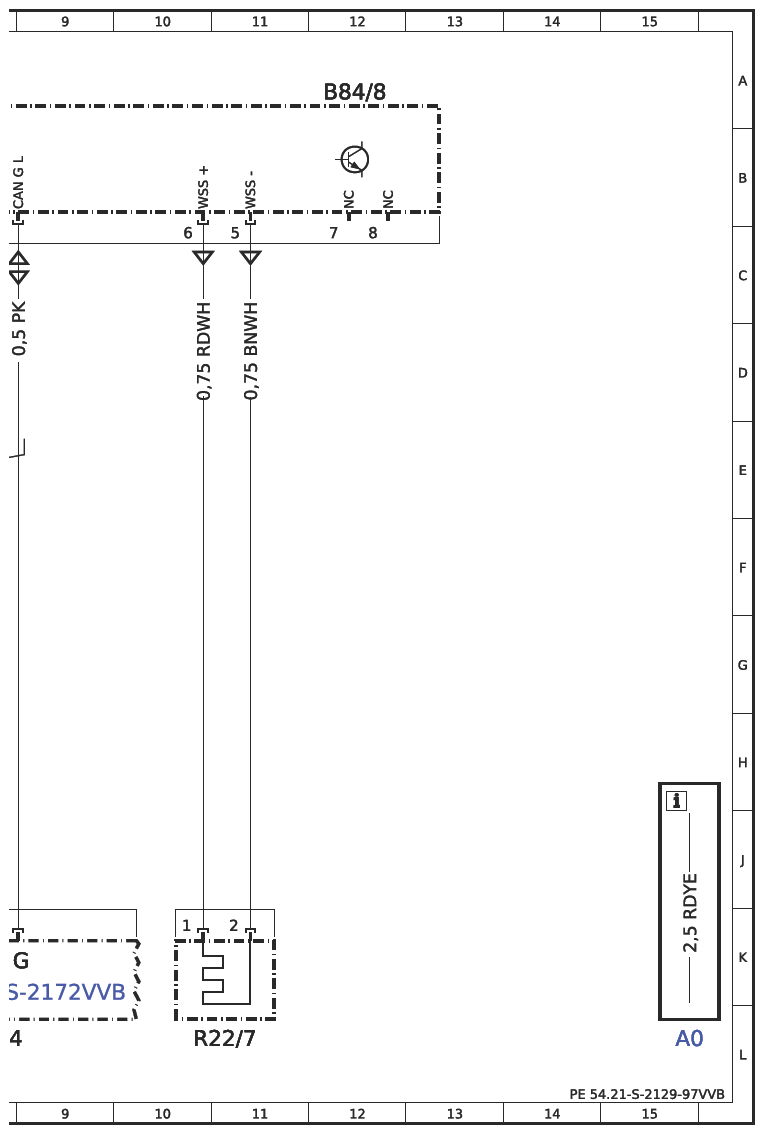

| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 15L |
| B84/8 | Multifunction camera (MFK) control unit | 4A |
| B84/8 | Multifunction camera (MFK) control unit | 12A |
| CAN G | Front end CAN | 8K |
| K40/11 | Firewall fuse and relay module | 4L |
| K40/11f106 | Fuse 106 | 3L |
| R22/7 | Multifunction camera windshield heater field | 11L |
| U12 | Valid for left-hand drive vehicles | 2E |
| U13 | Valid for right-hand drive vehicles | 3E |
| W38 | Roof frame ground point 1 | 6E |
| X225 | Main wiring harness/firewall main wiring harness 1 electrical connector | 4F |
| X304 | Front end CAN (CAN G) potential distributor electrical connector | 8L |
