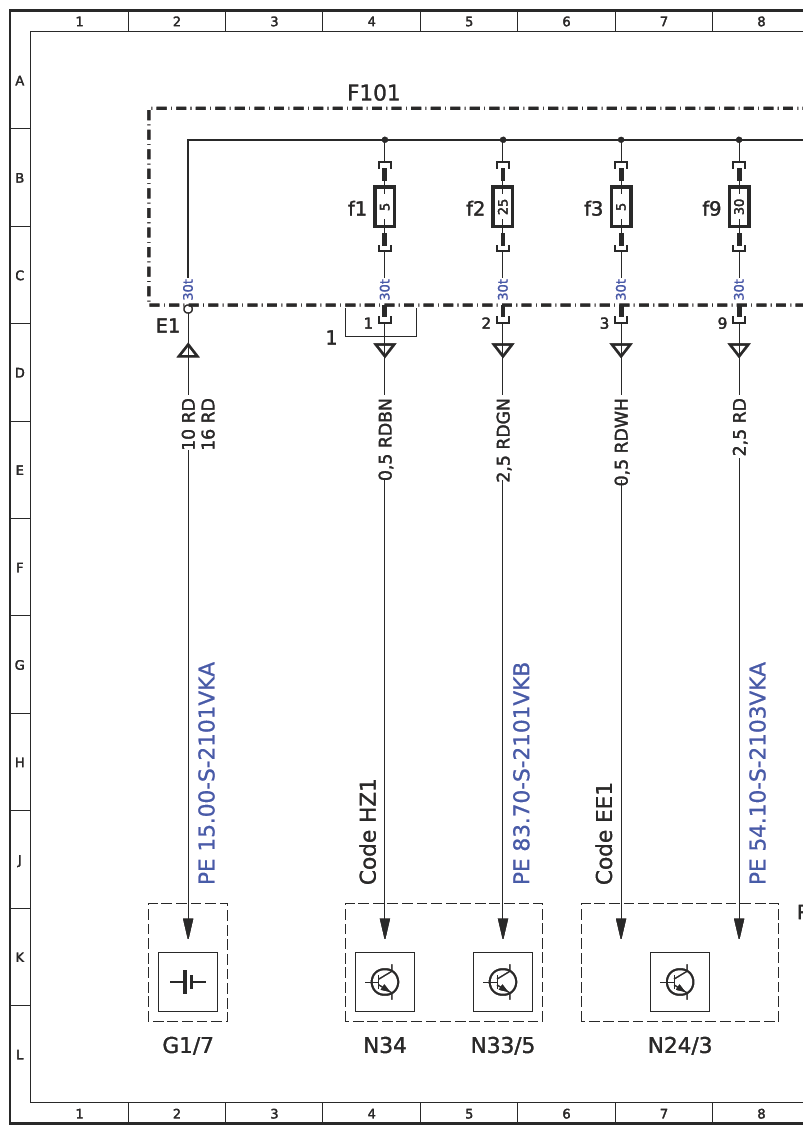

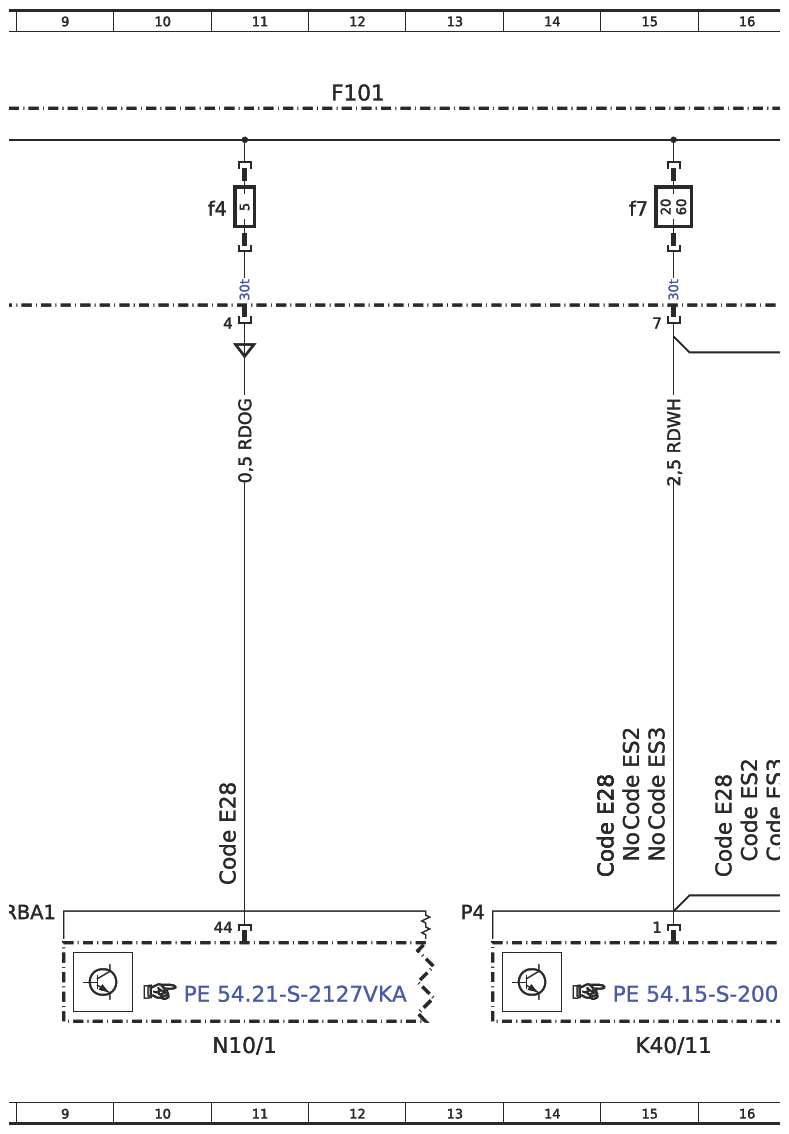

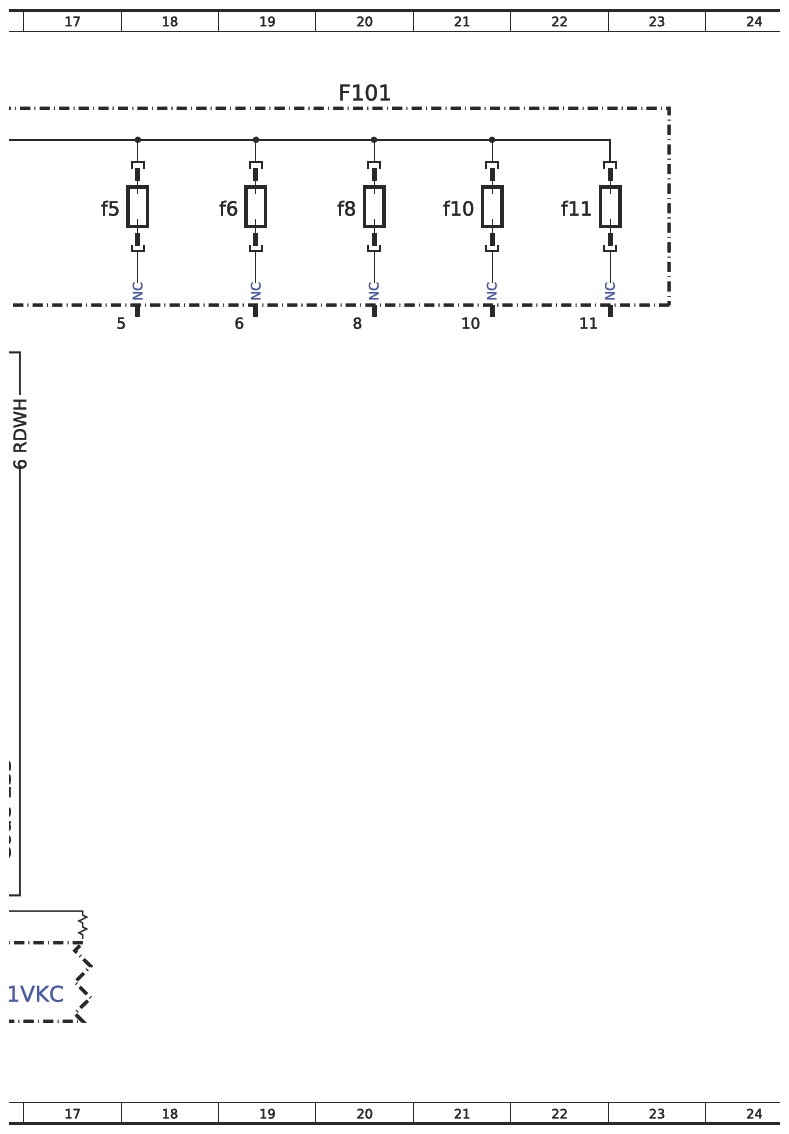

Wiring Diagram For Fuse Box - PE54.15-S-2530-97VKA
Model 447 with Code XM7 (MOPF II) F101
| Code : | Designation: | Position: |
|---|---|---|

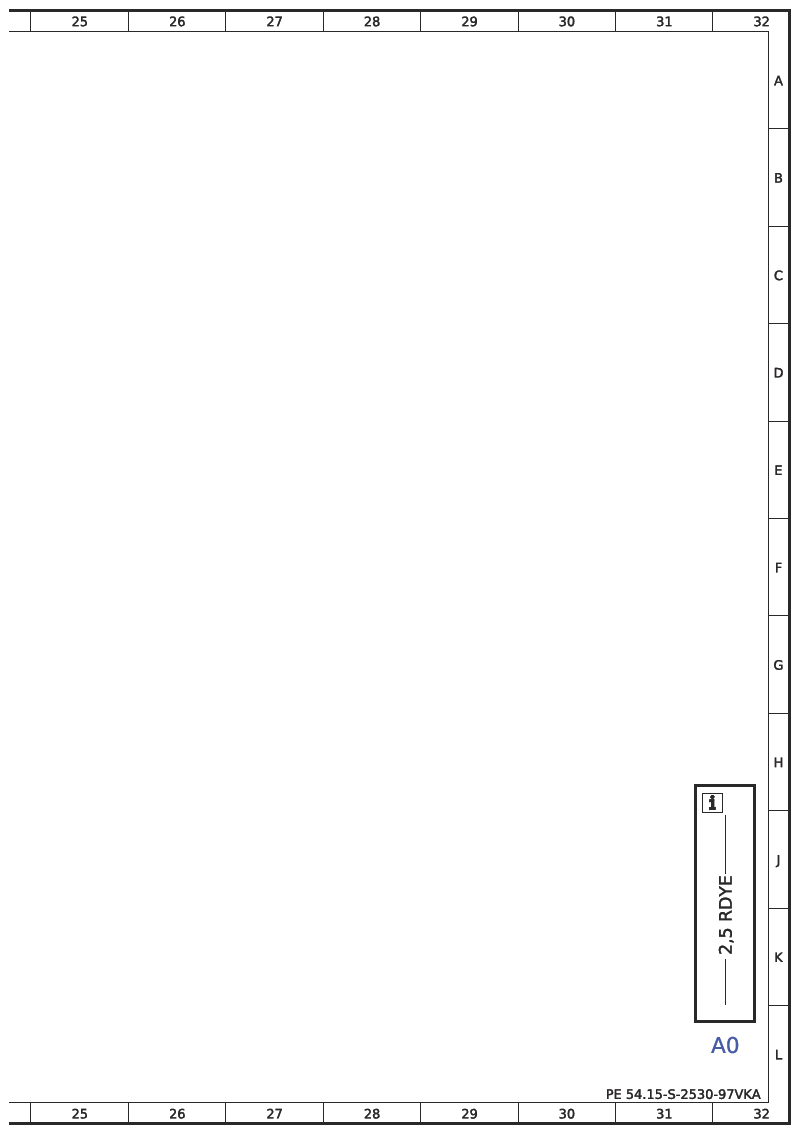

| AO | Color Code key | 32L |
| Code E28 | Additional battery for retrofitted consumers | 11J |
| Code E28 | Additional battery for retrofitted consumers | 16J |
| Code E28 | Additional battery for retrofitted consumers | 15J |
| Code EE1 | 230 V socket | 6J |
| Code ES2 | Trunk/load compartment 12 V socket | 16J |
| Code ES2 | Trunk/load compartment 12 V socket | 15J |
| Code ES3 | 12 V sockets for right and left rear seat rows | 16J |
| Code ES3 | 12V sockets for right and left rear seat rows | 15J |
| Code HZ1 | Auxiliary air heater with timer and temperature control | 4) |
| F101 | Fuse box (11 fuses) | 4A |
| F101 | Fuse box (11 fuses) | 12A |
| F101 | Fuse box (11 fuses) | 20A |
| F101f1 | Fuse 1 | 4B |
| F101f2 | Fuse 2 | 5B |
| F101f3 | Fuse 3 | 6B |
| F101f4 | Fuse 4 | 11B |
| F101f7 | Fuse 7 | 15B |
| F101f9 | Fuse 9 | 7B |
| G1/7 | Additional battery | 2L |
| K40/11 | Firewall fuse and relay module | 15L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 11L |
| N24/3 | DC/AC converter control unit | 7L |
| N33/5 | Warm air stationary heater control unit (WLSTH) | 5L |
| N34 | Stationary heater timer | 4L |
