Wiring Diagram For Body Manufacturer Interface - PE54.18-S-2001-97VVB
Model 447.6 with Code JO2 (OLU pre-installation) with Code XM0 (Facelift) except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM7 (MOPF II) X145/5x1, X145/5x2, X145/5x3
Model 447.7 with Code JO2 (OLU pre-installation) with Code XM0 (Facelift) except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) X145/5x1, X145/5x2, X145/5x3
| Code : | Designation: | Position: |
|---|---|---|

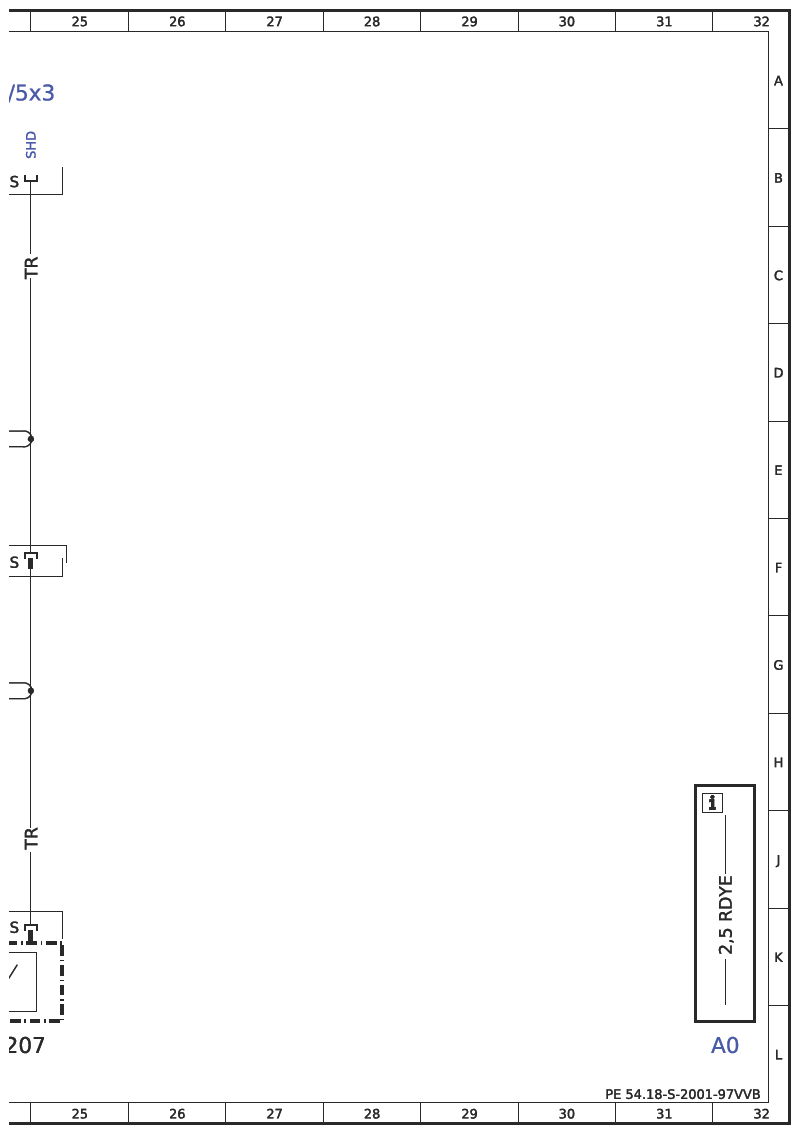

| AO | Color Code key | 32L |

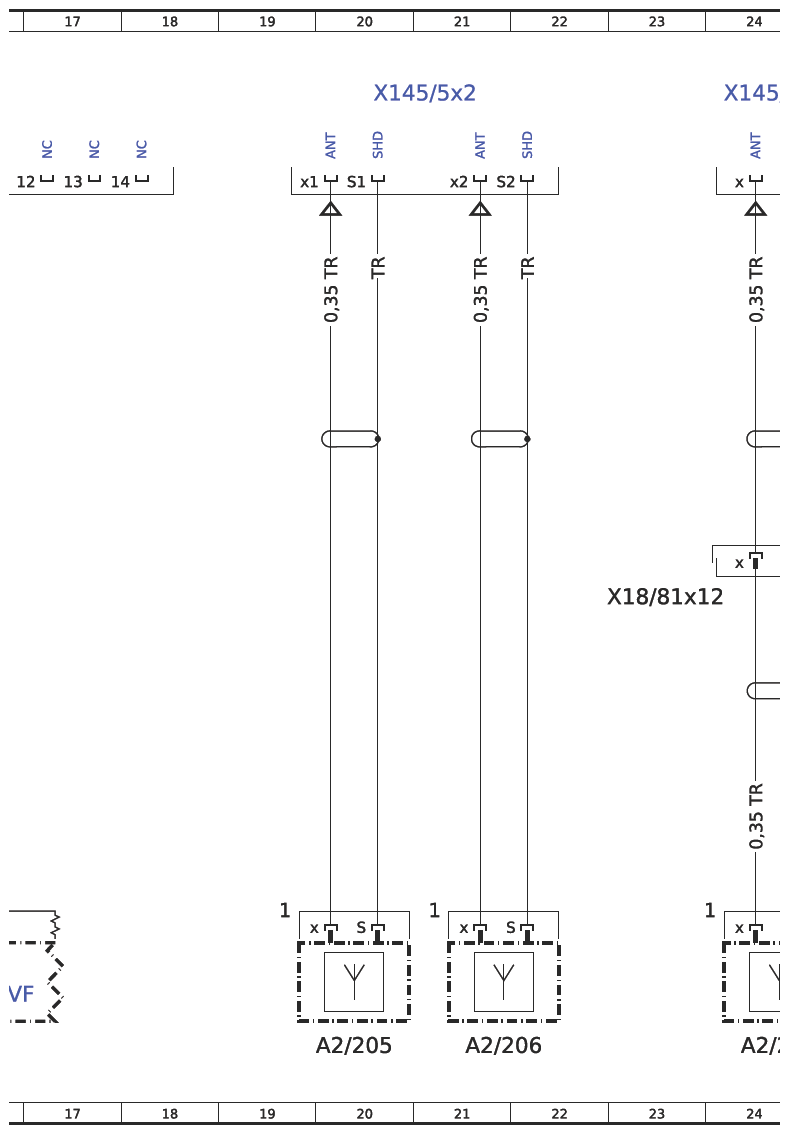

| A2/205 | Left LTE antenna | 20L |
| A2/206 | Right LTE antenna | 21L |
| A2/207 | GNSS antenna | 24L |
| CAN K | CAN for multifunctions | 15K |

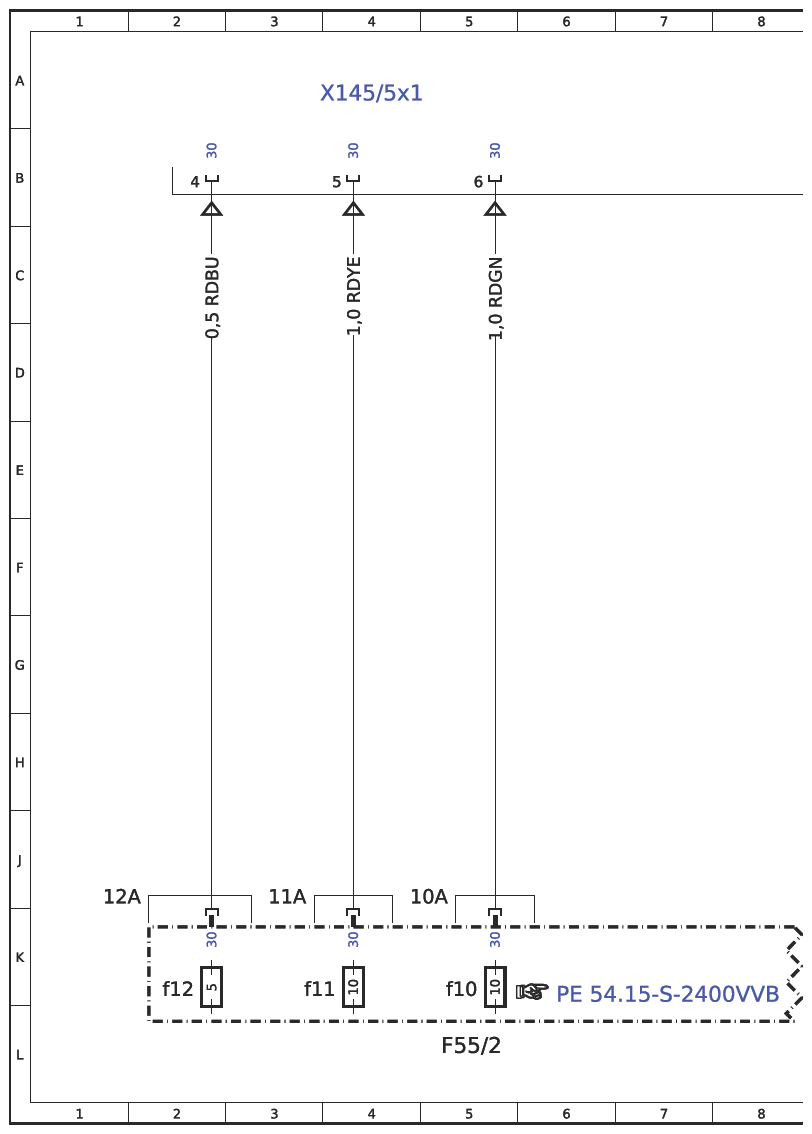

| F55/2 | Fuse block 2 (9-pin) | 5L |
| F55/2f10 | Fuse 10 | 5K |
| F55/2f11 | Fuse 11 | 3K |
| F55/2f12 | Fuse 12 | 2K |

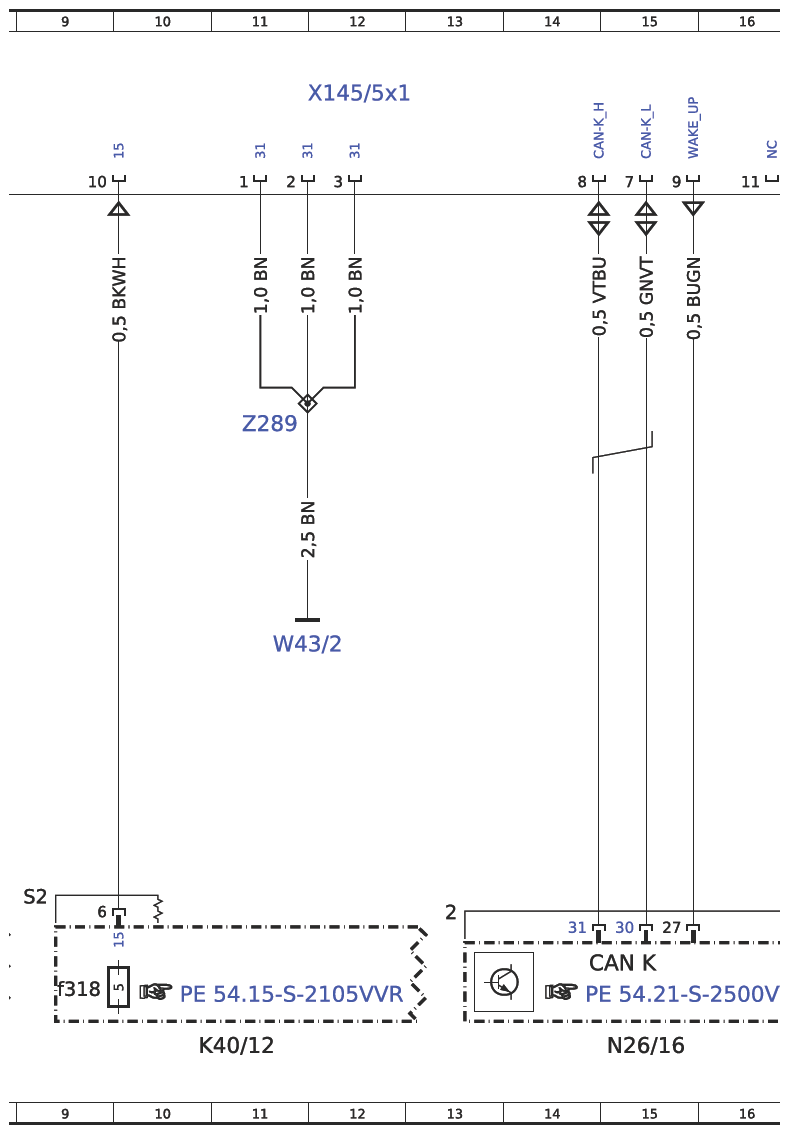

| K40/12 | Fuse and relay module, front passenger footwell | 11L |
| K40/12f318 | Fuse 318 | 9K |
| N26/16 | Parameterizable special module (PSM) control unit | 15L |
| W43/2 | Right vehicle interior firewall ground point | 11G |
| X145/5x1 | OLU 1 body manufacturer electrical connector | 4A |
| X145/5x1 | OLU 1 body manufacturer electrical connector | 12A |
| X145/5x2 | OLU 2 body manufacturer electrical connector | 20A |
| X145/5x3 | OLU 3 body manufacturer electrical connector | 24A |
| X18/81x12 | Left main wiring harness/cockpit wiring harness electrical connector 10 | 23F |
| Z289 | OLU ground connection end sleeve | 11E |
