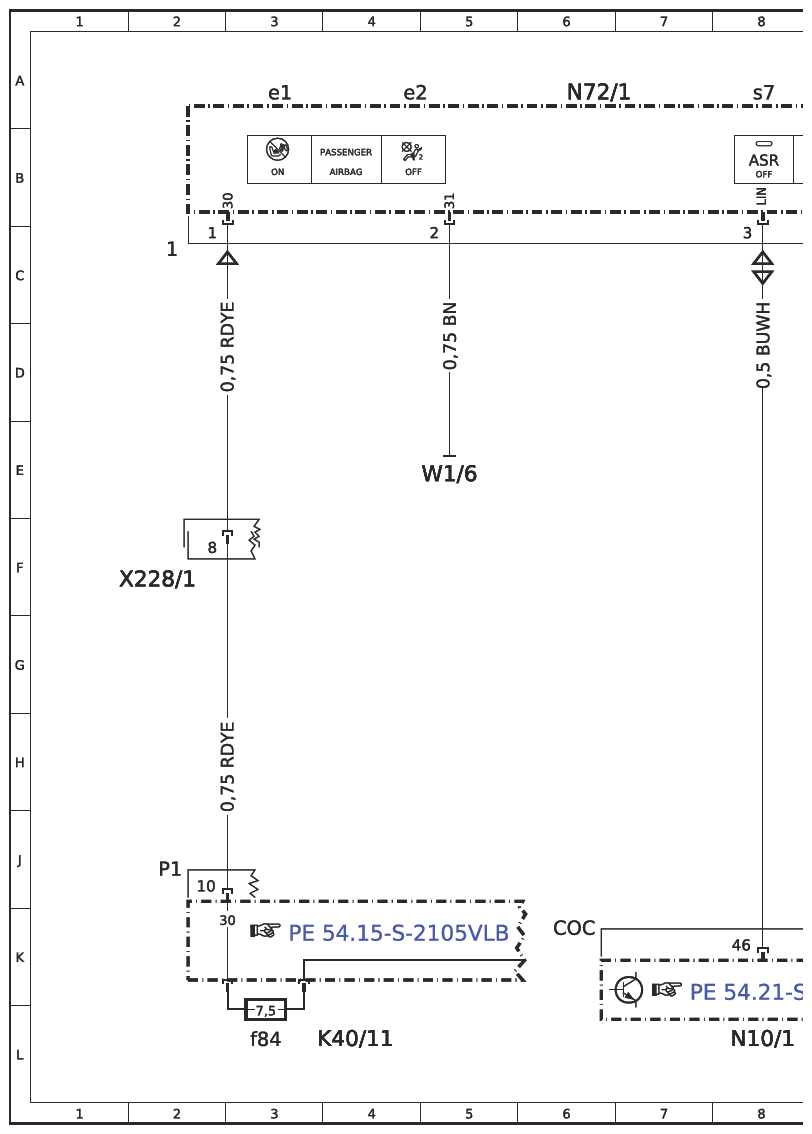

(Wiring Diagram For Upper Control Panel Control Unit - PE54.21-S-2119-97VLA)
Model 447.6 with Code ZL3 (National version for Latin America) except Code ES9 (Media Interface cable kit) except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) N72/1
Model 447.7 with Code ZL3 (National version for Latin America) except Code ES9 (Media Interface cable kit) except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) N72/1
| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 15L |
| K40/11 | Firewall fuse and relay module | 4L |
| K40/11f84 | Fuse 84 | 3L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 8L |
| N72/1 | Upper control panel (UCP [OBF]) control unit | 6A |
| N72/1e1 | Automatic child seat recognition airbag ON indicator lamp | 3A |
| N72/1e2 | Automatic child seat recognition airbag OFF indicator lamp | 4A |
| N72/1s4 | Hazard warning system button | 9A |
| N72/1s5 | ECO start/stop function button | 10A |
| N72/1s7 | ASR OFF button | 8A |
| W1/6 | Cockpit ground point | 5E |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical connector 2 | 2F |
